HO scale Kadee 148-25 (previously #14) - 25 pair (50 couplers) #148 standard head whisker metal knuckle couplers. Can be used in place of a #5. Bulk packaging, does not include draft gear boxes. Brand new. Made in USA!


The #148 Whisker® Metal Coupler will work anywhere a NO.5® Coupler will work and is a direct replacement for most Bachmann On30 couplers & a direct replacement for most plastic Medium Centerset "clone" couplers.

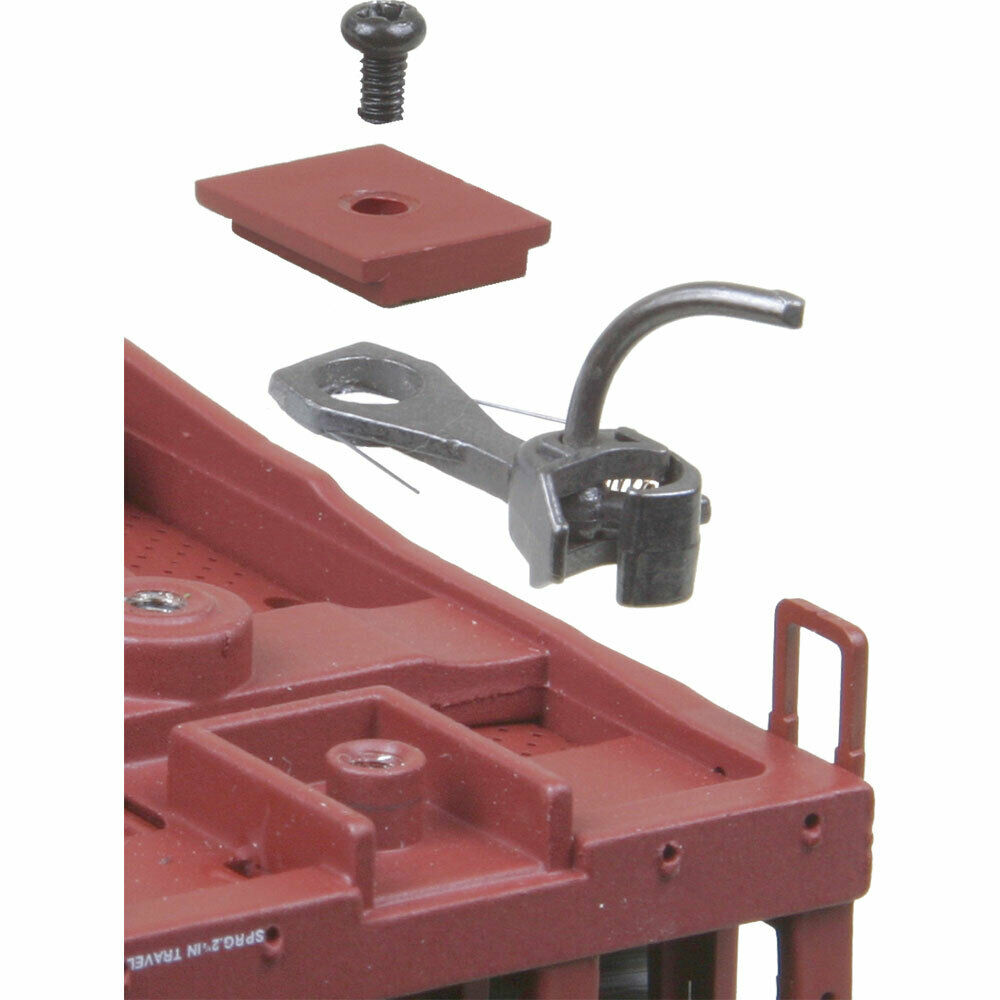

This industry leading coupler features an all metal coupler head, shank, and Whisker® centering spring. The #148 Magne-Matic® Whisker® Metal Coupler may be mounted with the available (not included) #242 Snap-Together Gearbox or with other manufacturers cast-on coupler pockets.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use insulated gearbox or insulated coupler.

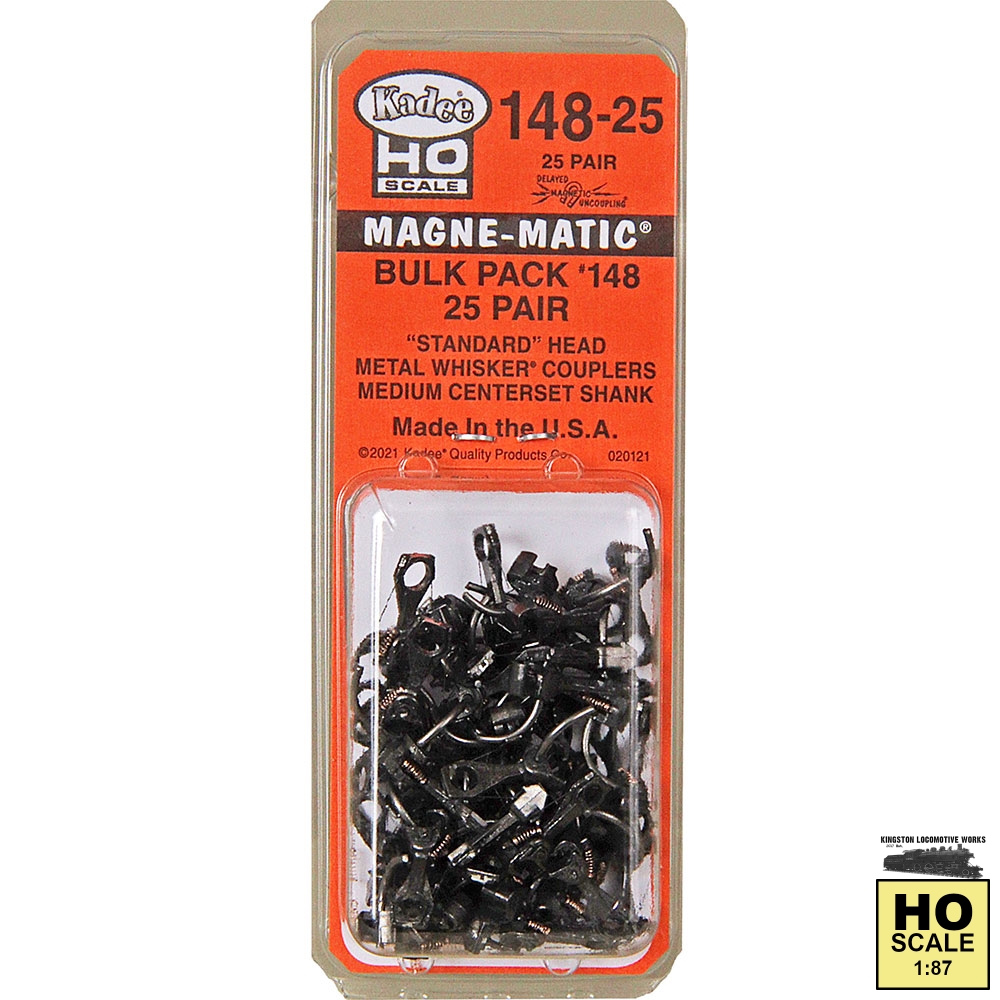

Package Includes:

(25) Pair #148 Whisker® Metal Couplers - Medium Centerset Shank
(Extra) #622 Knuckle Springs

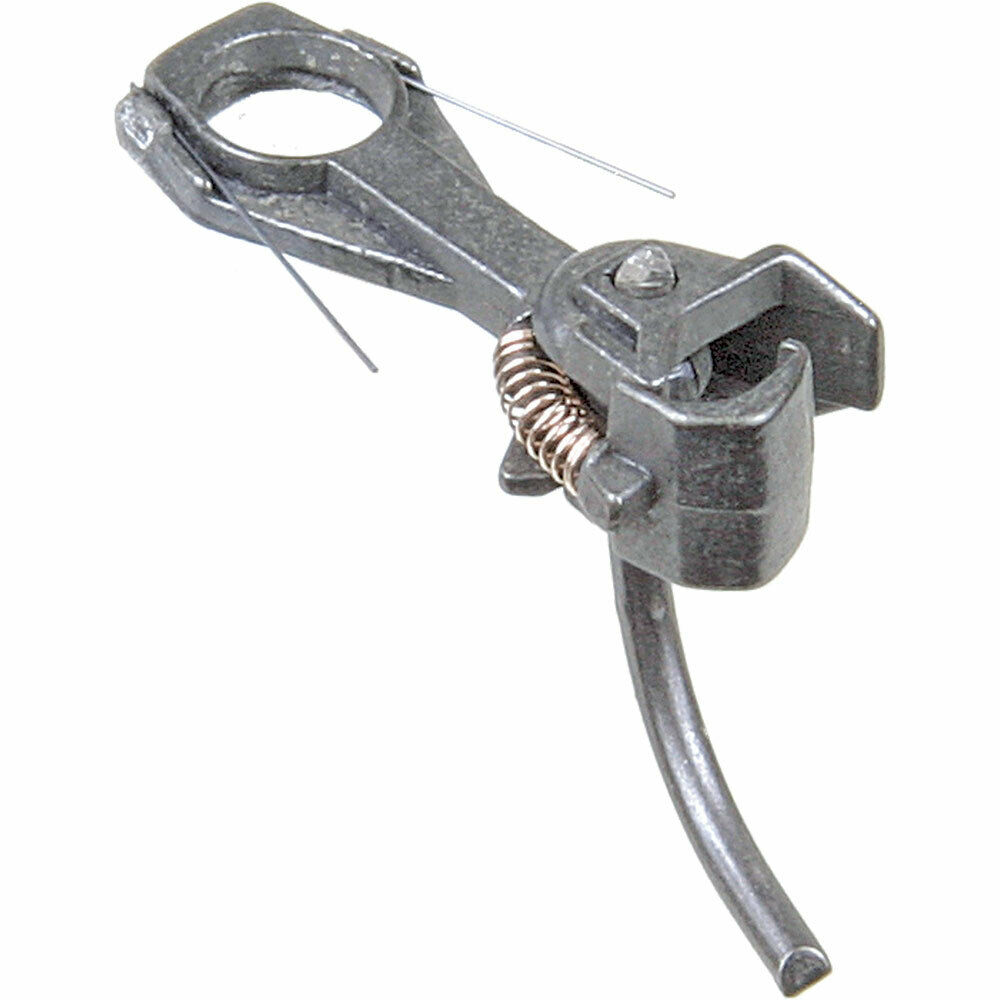

#148 Whisker® Metal Coupler Features:
Material - Metal

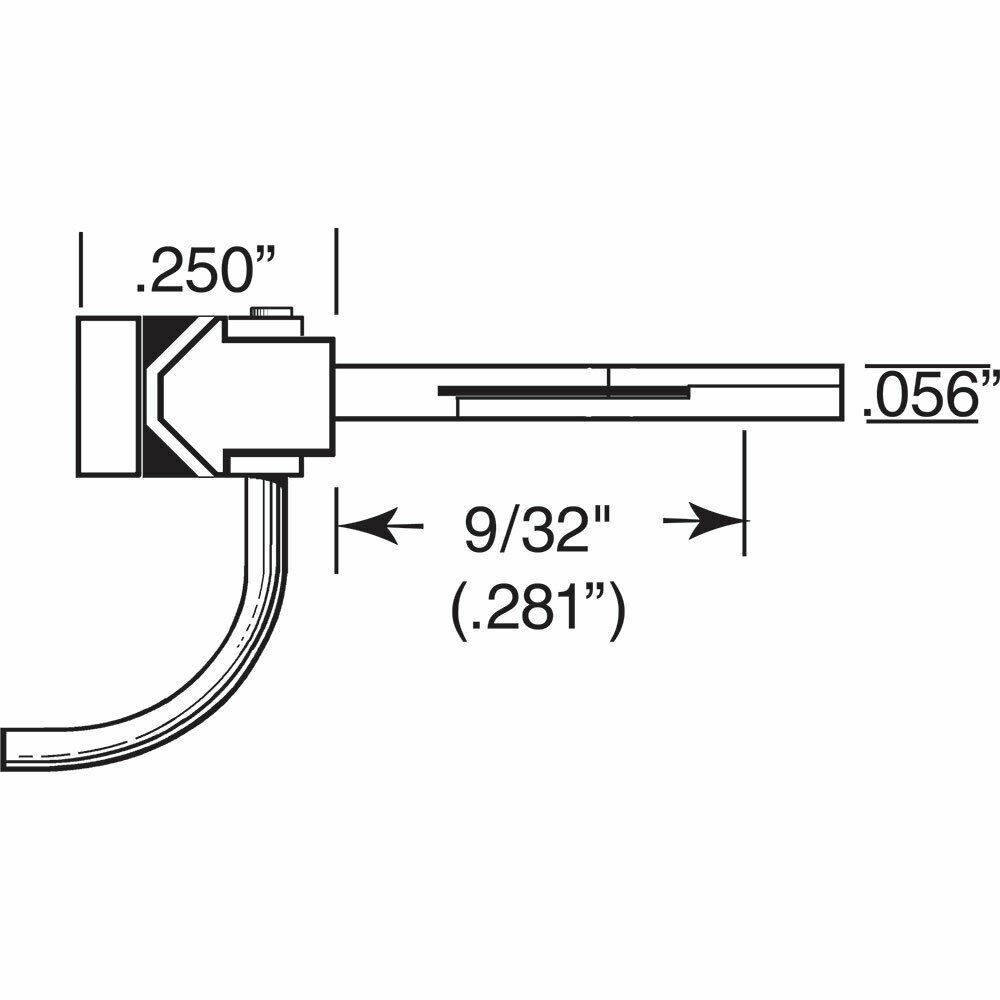

Shank Length - Medium (9/32") (center hole to back of coupler head)
Coupler Offset - Centerset
Knuckle Spring - #622
Centering System - Whisker®
Head - Standard Head
Works In Place of - NO.5®, #58, #28, #38 (#148 in a #252 box), #118, #119, #158, medium centerset "clone" couplers
Works With - #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes

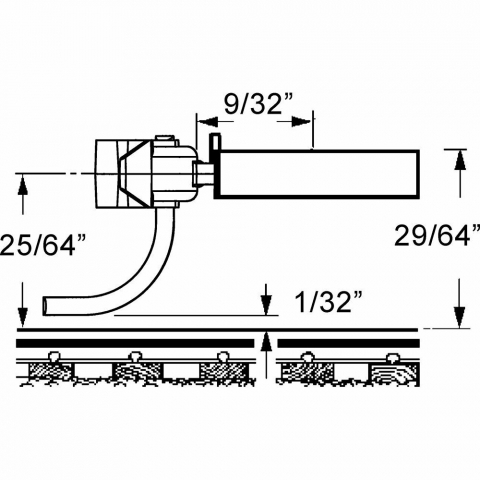

Mounting Specifications:
Mounting Height - 29/64"
Centerline - 25/64"
Trip Pin Height - 1/32"
Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
