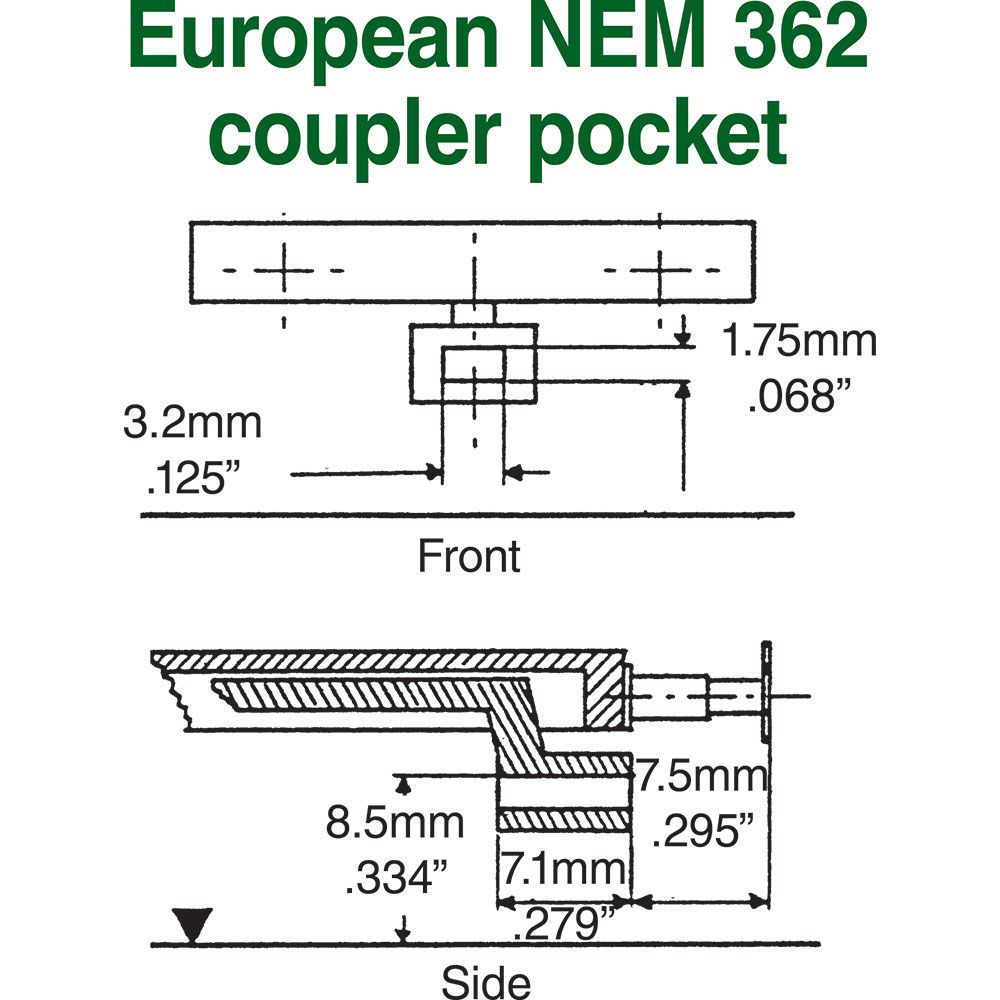

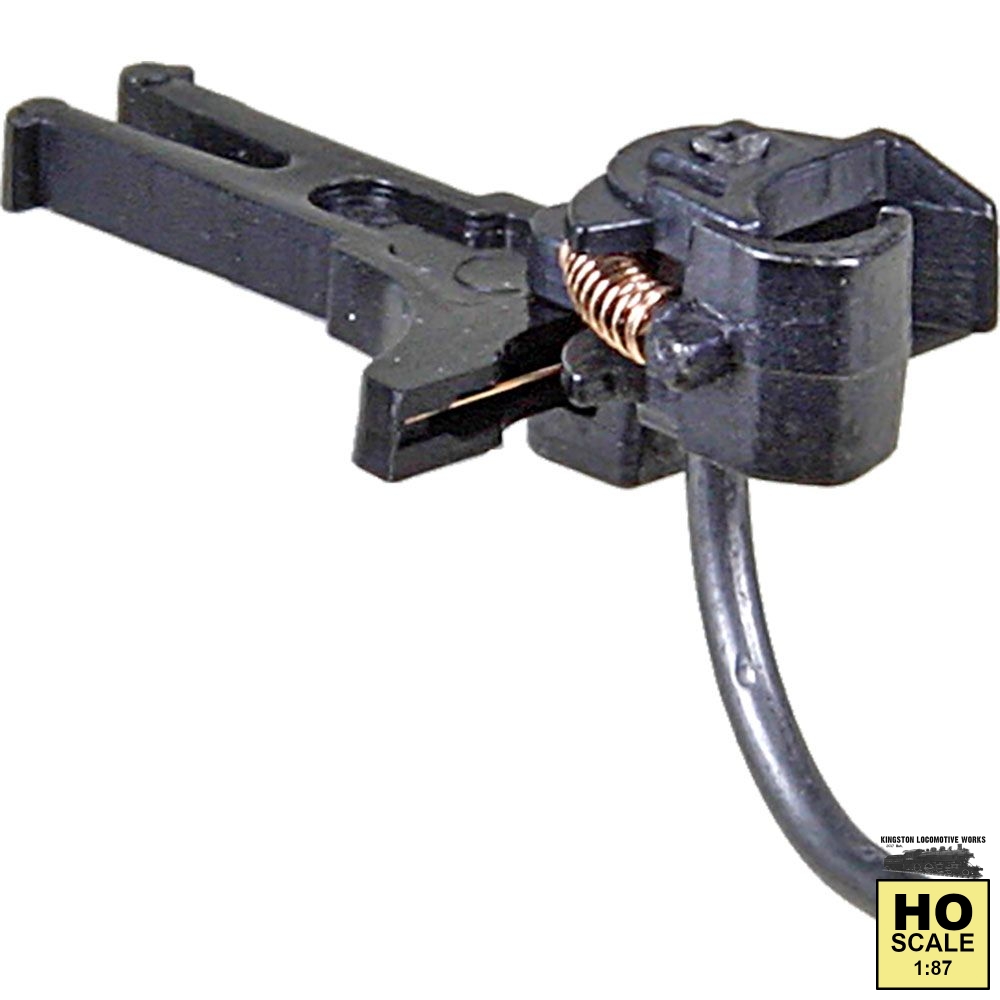

This industry leading coupler features an NEM 362 European Style Coupler. The #19 Magne-Matic® NEM 362 European Style Coupler that is mounted in the HO-Scale NEM 362 draft gear box pocket.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Two pair per package
(w/o Draft Gear Boxes)


Package Includes:
(2) Pair #19 Couplers (Aassembled) - Long Underset
(2) #622 Knuckle Springs

#19 Coupler Features:
Material - Metal Knuckle, Plastic Coupler Swallow-tail Shank

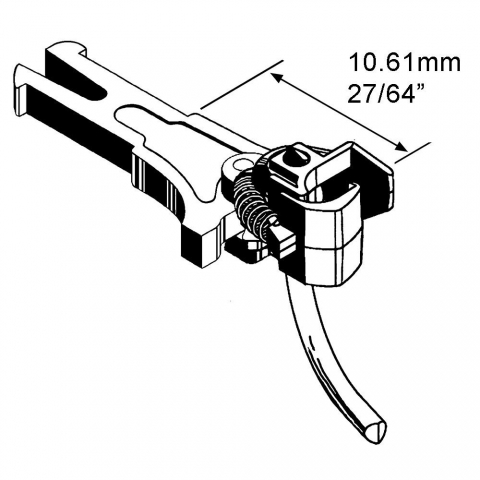

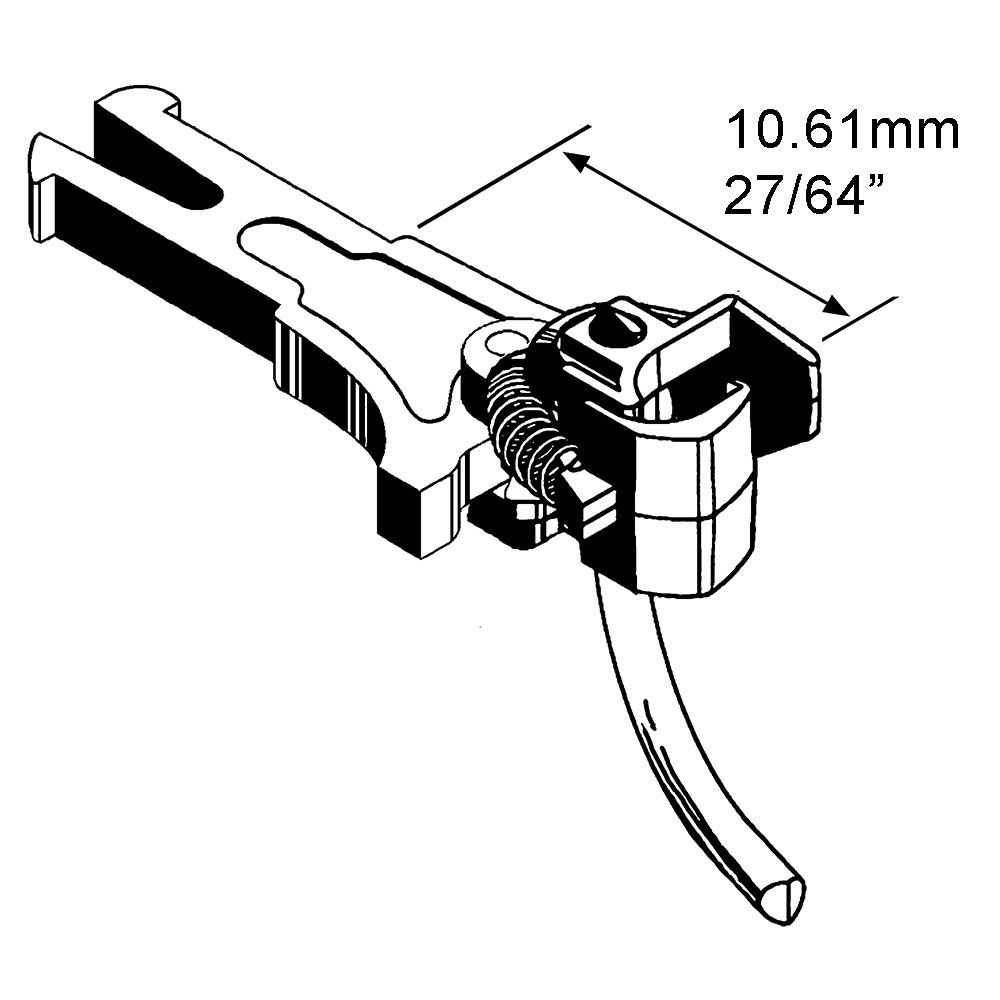

Length - Long (10.67mm , .420 inch , 27/64") (pulling face to the dovetail sholder)
Coupler Offset - Underset
Knuckle Spring - #622
Centering System - NEM European Style Coupler
Head - Standard Head

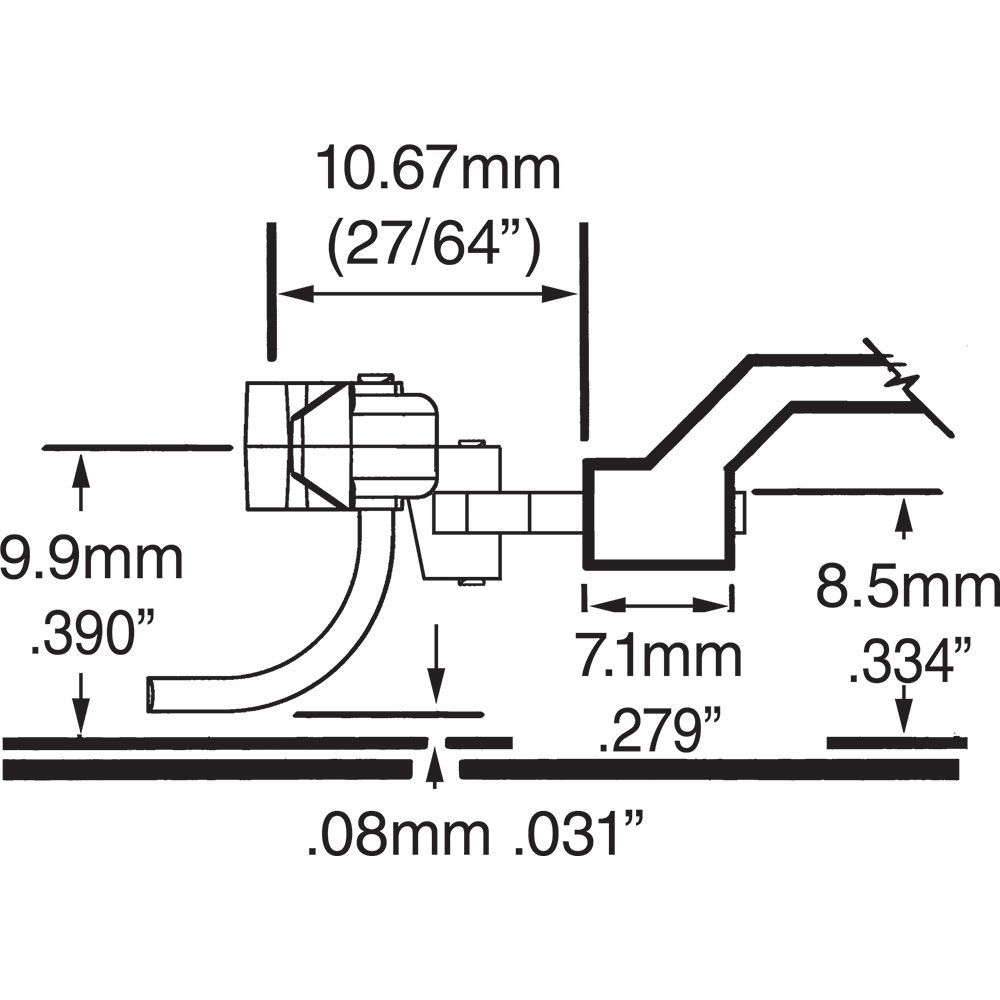

Mounting Specifications:
Mounting Height - 10.67mm , .420"
Centerline - 9.9mm , .390"
Trip Pin Height - .08mm , .031"
