Product Details

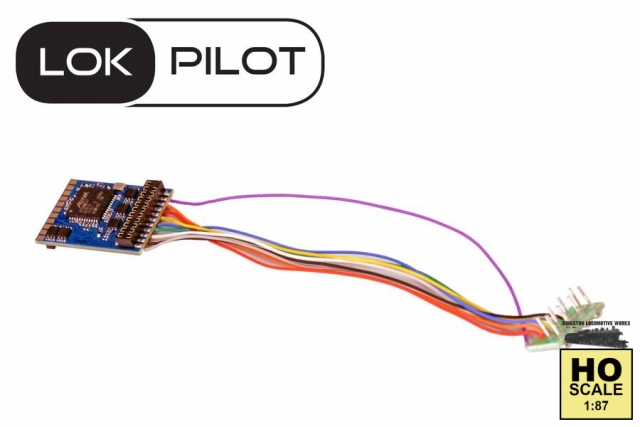

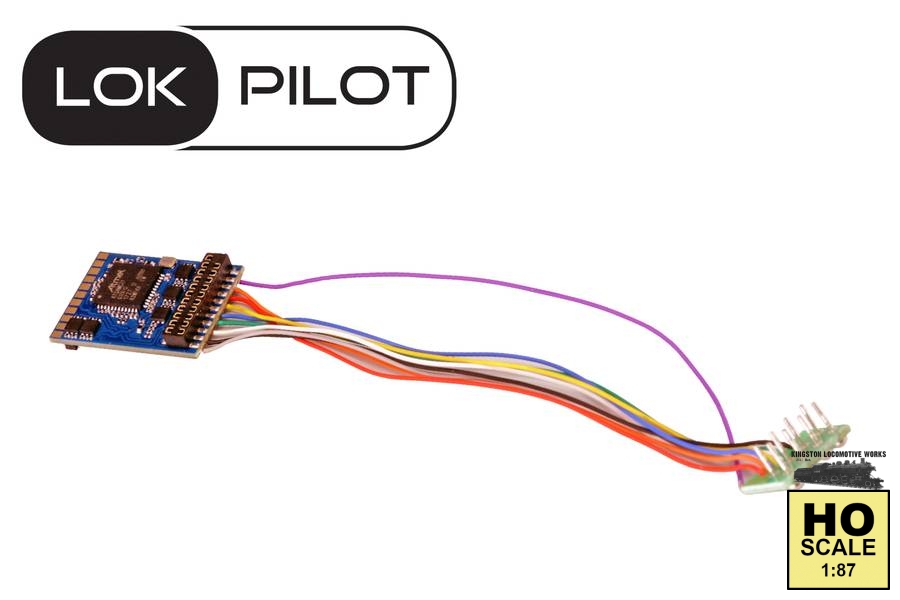

ESU 59620 LokPilot 5 DCC - Wires w/ 8pin NEM652 Connector
Manufacturer: ESU (Made in China)
Part Number: 59620 (397-59620)
Condition: New
Our Price: 🇨🇦 $37.28 (Plus applicable taxes)
MSRP: 🇺🇸 $36.90 (🇨🇦 $51.41) - Save $14.13 / 27%!
✅  1 in stock and available to purchase!
❓  Unknown if we can order any more from the manufacturer. Please feel free to enquire.
Quantity:
Scales/Gauges: HO / H0 (1:87)
Description:
The LokPilot 5 DCC is the "twin brother" of the LokPilot 5. The two share almost all characteristics, however, the LokPilot 5 DCC is a pure DCC decoder and cannot be used on analog AC systems. This lack of flexibility comes with a cheaper price.


Modes
The LokPilot 5 DCC is a "pure-bred" DCC decoder. 14 to 128 speed steps are as natural as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus® the decoders register automatically with a suitable DCC system like the ESU CabControl.

The decoder accepts all DCC programming modes and thanks to RailCom® the CV values ​​can be read on the main track with RailCom equipped DCC systems. For command stations that only program the CVs from 1-255 auxiliary CV registers exist.

The LokPilot 5 DCC decoder recognizes the Märklin® braking sections as well as the ZIMO® HLU / ZACK Commands or the Lenz® ABC system. Also braking with DCC brake modules or with DC voltage is possible. It also stops with a Selectrix® brake diode. An ABC automatic shuttle train enables automatic commuting between two train stations.

The LokPilot 5 DCC decoder can be used on analog DC trains. The top speed can be set separately.

The decoder switches between the operating modes fully automatically "on-the-fly".


Features
We know that you want your locomotives to be as realistic as possible. Therefore we have the LokPilot 5DCC packed with function outputs. Depending on the interface version, each LokPilot offers 5 DCC Decoder at least 10 amplified function outputs with 250mA output current each. In the executions with PluX22 or 21MTC interface there are 4 outputs to control servos or Logic level outputs added. All-important lighting functions are available. The brightness of each output can be set separately. The decoder masters automatic pushing and pulling when uncoupling for ROCO®, Krois® and Telex® couplings.

Motor control
The engine control of the LokPilot 5 DCC has been fundamentally improved again. A variably adjustable PWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell-armature motors. Operation - The typical “hum” is a thing of the past. The load control now has up to10 CVs which can be adjusted for difficult cases. The unique "Autotune" function enables the automatic calibration of the decoder to the motor. The LokPilot 5 DCC decoder delivers up to 1.5A of motor current. Enough juice even for older motors.

Operational safety
On request, a PowerPack can be fitted to the LokPilot 5 DCC to bridge dirty rail sections.

Protection
Of course, all function outputs and the motor output are protected against overload. We want you to enjoy your decoder for as long as possible.
UPC: 4044645596203
