(Replaces DS64)

** LocoNet cable and power supply (PS14 or similar) sold separately **

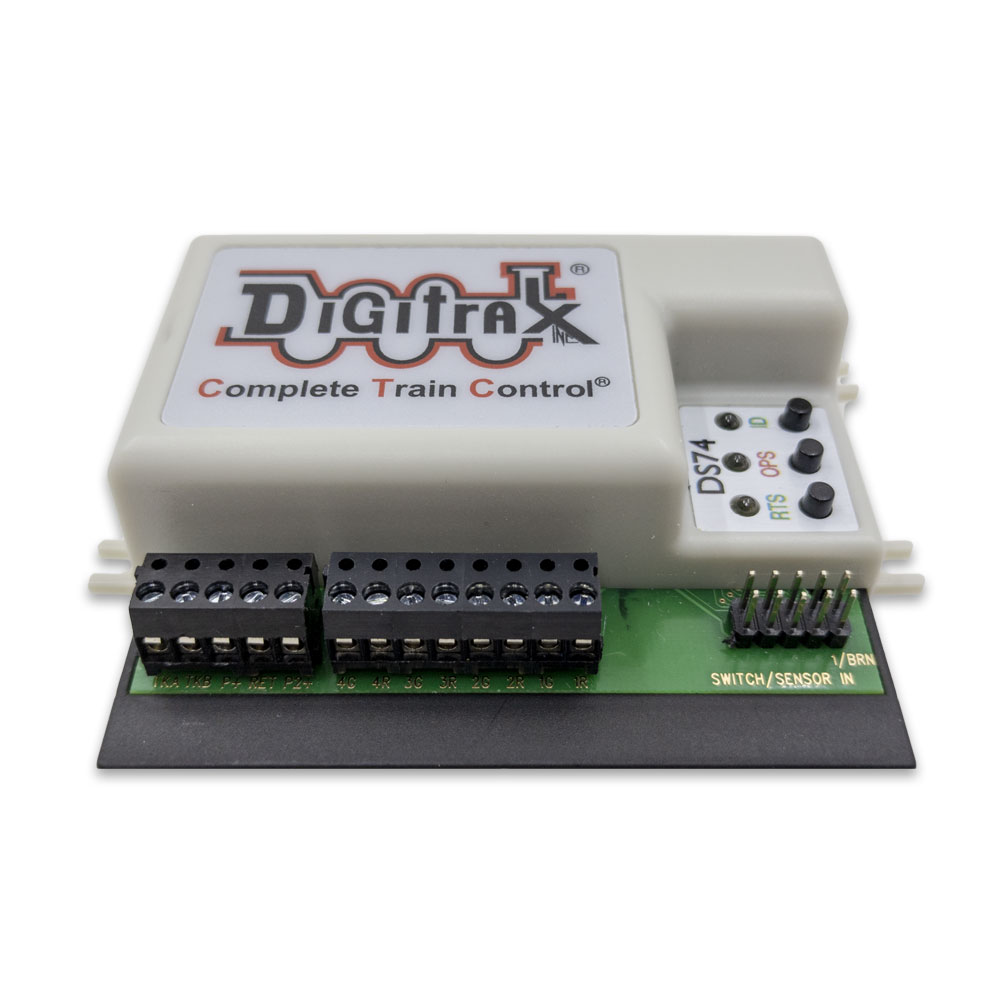

The DS74 Stationary Decoder allows you to install and operate your turnouts directly through any DCC system that has turnout control.

The DS74 works with a wide selection of hardware. From solenoid turnout machines to slow motion motors, the DS74 hasn’t met a turnout it doesn’t like.

This affordable, easy to install decoder will add another dimension to your operations.


Features:

Quad switch decoder for Solenoid or Slow-motion turnouts.
Configurable for Capacitive Discharge with balky solenoids.
Configurable for on/off control of 8 layout lights.
Plug and play wire connectorization.
Works with compatible LocoNet Systems.
Stabilized and adjustable output voltages.
Option setup switches for configuration.
On-layout programmability via LocoNet.

8 onboard Routes, with EZ-Route setup.
Routes directly editable using latest DT602 IPL.
8 input lines for Switch and Detection inputs.
Field firmware update via IPL over LocoNet.
DC 2mm jack for reliable power input.
Optional DCC track inputs for limited feature capabilities.


Includes 6" ribbon cable with 10pin connector. LocoNet cable and power supply (PS14 or similar) sold separately.
