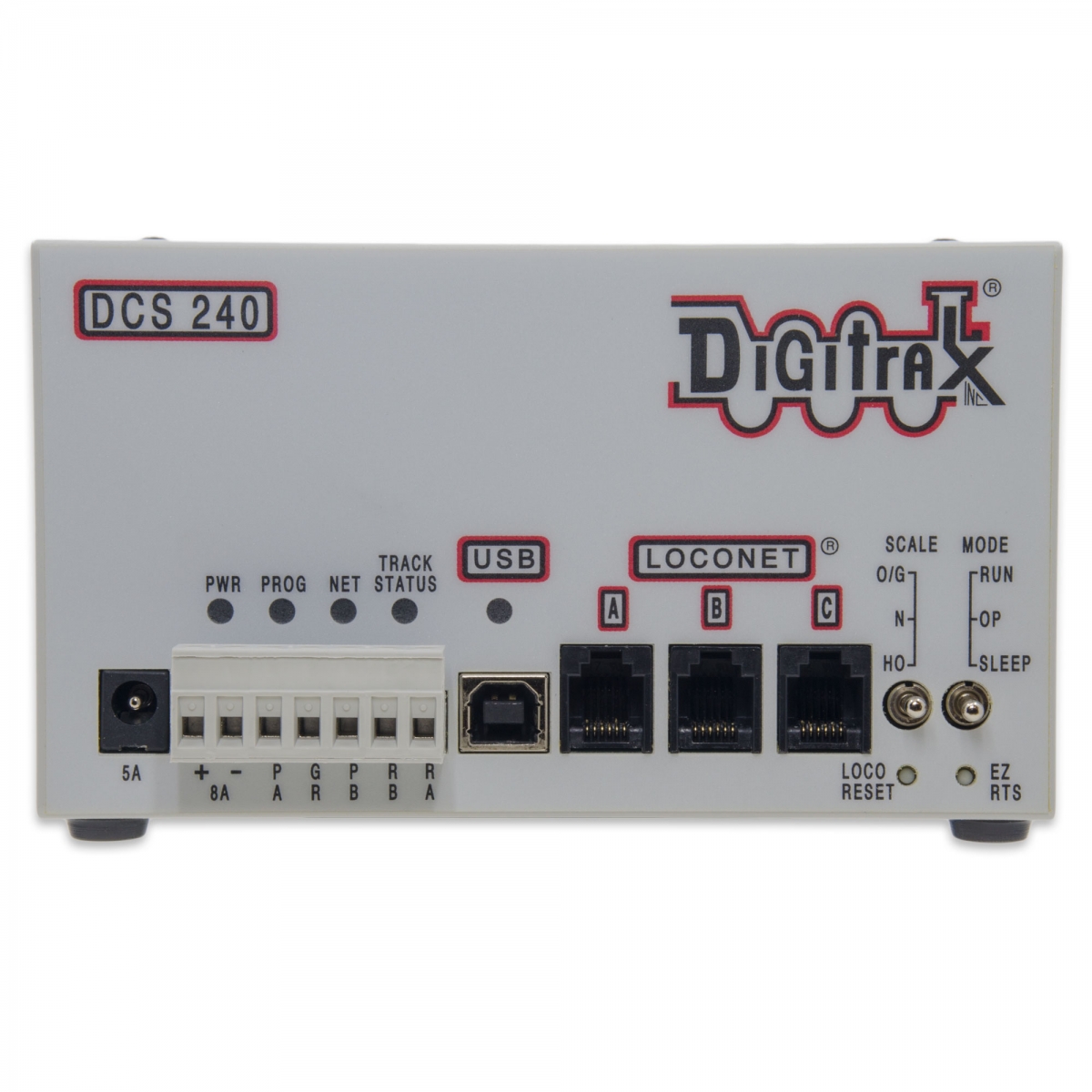

Digitrax DCS240 LocoNet® Advanced DCC Command Station
Manufacturer: Digitrax
Part Number: DCS240 (245-DCS240)
Condition: New
Expected Price: 🇨🇦 $414.38 (Plus applicable taxes)
☑️  This item is not currently in stock, but should be available to order.
Quantity:
Description:
More Locos
More Capacity
Really Big Fun!

The DCS240 Advanced Command Station lets your LocoNet® System run up to 400 locos and 400 throttles. Full read/write programming, route capability, USB connectivity, and separate programming output lets you run and program at the same time.

5 or 8 Amps of Power

400 Loco Addresses

400 Throttle Support

Combination Advanced LocoNet® Command Station and 8 amp CTC booster

User selectable N,HO, and large scale operation with Voltage Trim

LocoNet for easy plug ‘n play installation and system expansion

Auto resetting over temperature and short circuit protection

Hardware EZ routes and Loco Reset

Integrated USB for Computer Support

Over-Voltage Protected

Auto shutdown when command control signal is lost to prevent “runaway” trains



Note: Accepts DC POWER input ONLY from power supply (sold separately). Recommended power supply: Digitrax PS514 or equivalent. MAXIMUM INPUT 8 AMPS, 24VDC, 192 VA MAXIMUM CONTINUOUS, DO NOT Exceed 25VDC maximum Input. Minimum Input 13VDC.

Technical Note About DCC Booster Output Ratings: Digitrax boosters have maximum output current limits of either 5 or 8 amps. The actual continuous output current that your booster will provide to the layout depends on several factors including the input supply voltage, the ambient room temperature and air flow over the booster's heat sink. Higher input voltages increase the amount of heat that must be dissipated by the booster's heat sink. If the heat sink does not get enough air flow to allow for heat dissipation, the booster will eventually reach an over temperature state and shut down. A small fan blowing across the heat sink on your booster will increase the maximum sustained current output capacity of your booster.

Each DCC company specifies the output capacity of its boosters according to their own internal standards. Tests designed and performed by several model railroaders have shown wide variations in the actual output capacity of DCC boosters. In most cases the tests were designed to overload boosters and cause them to shut down. The conclusion based on these tests is that each manufacturer uses a different way of determining booster output capacity, Digitrax tends to be more conservative in stating booster output ratings. The factor that is most important for achieving maximum output capacity is the booster’s heat sinking ability. In these tests, Digitrax boosters have demonstrated excellent heat sinking capabilities and the ability to consistently output the advertised 5 or 8 amps when appropriate fans are added in high temperature situations.
UPC: 652667040051
