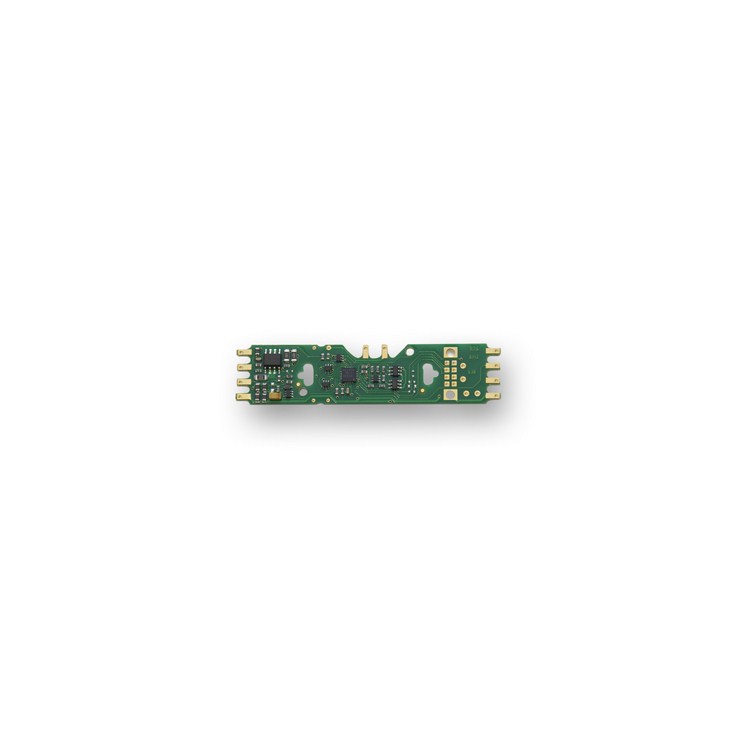

Fits Athearn Genesis, Kato, Stewart, Atlas & Other HO Locomotives.

Compatible with Sound Bug Sound Only Decoders

Decoder Lock equipped


Specifications:

Current Rating-Motor
1.25 Amp (2.0 Amps Peak)
Size
2.877” x .667” x .173”(73.07mm x 16.93mm x4.4mm)
Installation
Board Replacement
Function Outputs
6x 500mA
Function Type
FX3
Features
Series 5
For Use With
Sound Bug Sound Only Decoder


Features:

Accepts Plug-in SFX SoundBug TM sound modules

Regulated Headlights:convenient no-resistor install of LEDs and lamps.

Digitrax LocoMotion ® System-Your locomotives look like the real thing.

The Digitrax LocoMotion System makes them run like the real thing, too!
Torque Compensation for smooth as silk silent operation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.

Scalable Speed Stabilization with simple setup & 1024 level resolution.

SuperSonic motor drive for silent operation.

FX 3 Functions for prototypical lighting effects:
Constant Brightness Lighting directional or independent control.
Realistic Effects like Ditch lights, Mars lights, strobes, and many more.
Dynamic and Static Qualifiers operate functions based on direction,
F0 on or off, loco direction and F0, and whether loco is moving.
Function Remapping for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls

Circuit Board Replacement design makes installation quick and easy.

Transponder equipped ready for transponding on your layout.
Compatible with digital surround sound systems

All Mode Programming with Operations Mode Read Back-read back CV
values right on the mainline.

Decoder Factory CV Reset with or without speed table initialize.

Motor Isolation Detection prevents damage to your decoder.

Basic, Advanced & UniVersal Consisting

2 Digit and 4 Digit Addressing
