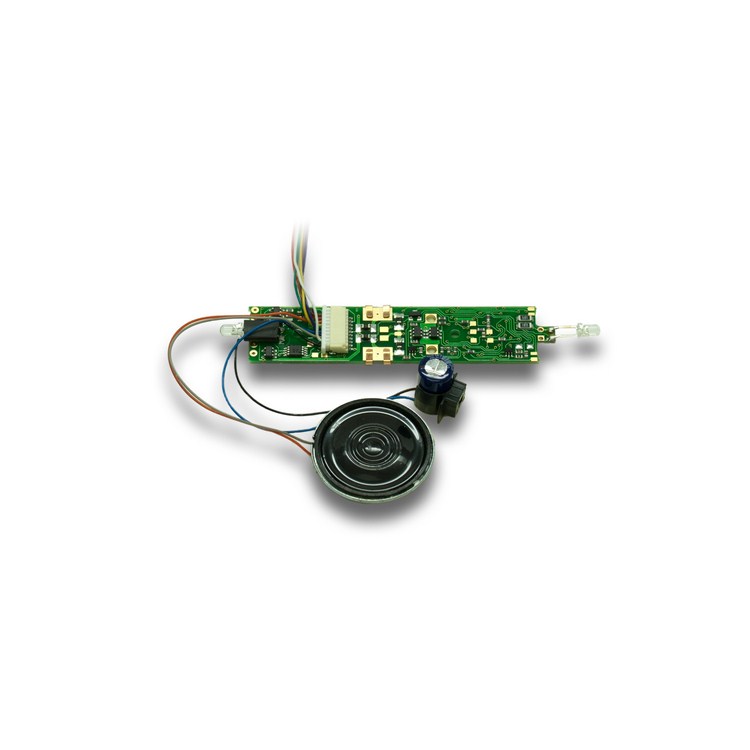

SoundFX®/Motor/Function Decoder

Board replacement decoder for Kato AC4400 HO Locomotives

Preloaded with AC4400 Sound Scheme
Replaces SDH104K1A & SDH104K1A C decoders (no FN04K1 needed)
Full Digitrax Series 3 mobile decoder feature set
Speed Tables
Simplified Scaleable Back EMF
Advanced Consisting
Transponding
Supersonic Motor Drive
Decoder LockFactory Reset Feature
Includes 28mm 32 Ohm speaker
Includes 330uF capacitor
Fully customizable sounds
Use PR3 and SoundLoader Software to download your own sound scheme to the decoder
No external sensor required for sound workload changes

Visit Digitrax Sound Depot to learn how to customize sound projects and how to download new sound projects into your decoder.
Specifications

Current Rating-Motor
1.0 Amp (1.3 Amps Peak)
Size
2.877” x .667” x .173”
Installation
Board Replacement
Function Outputs
6-500mA
Function Type
FX3
Features
Series 4
Speaker
28mm 32Ohm
Capacitor
330uF
Simultaneous Voices
3
Onboard Sound Memory
4 Megabit
