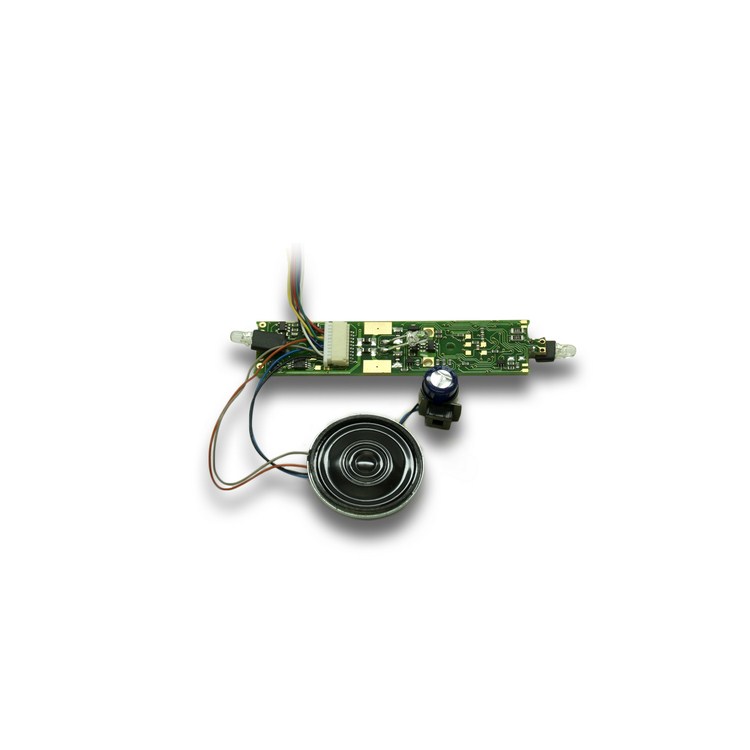

SoundFX®/Motor/Function Decoder

Board replacement decoder for Kato F40PH HO Locomotives

Preloaded with F40PH Sound Scheme
Replaces SDH104K1C & SDH104K1C C decoders (no FN04K1 needed)
Full Digitrax Series 3 mobile decoder feature set
Speed Tables
Simplified Scaleable Back EMF
Advanced Consisting
Transponding
Supersonic Motor Drive
Decoder LockFactory Reset Feature
Includes 28mm 32 Ohm speaker
Includes 330uF capacitor
Fully customizable sounds
Use PR3 and SoundLoader Software to download your own sound scheme to the decoder
No external sensor required for sound workload changes

Visit Sound Depot to learn how to customize sound projects and download sound projects into your Digitrax SoundFX decoder.
Specifications

Size
Board Replacement
Installation
Board Replacement
Function Outputs
6-500mA
Function Type
FX3
Features
Series
Current Rating
1.0 Amp (1.3 Amps Peak)
Speaker
285mm Round 32Ohm
Capacitor
330uF
Simultaneous Voices
3
Onboard Sound Memory
4 Megabit
