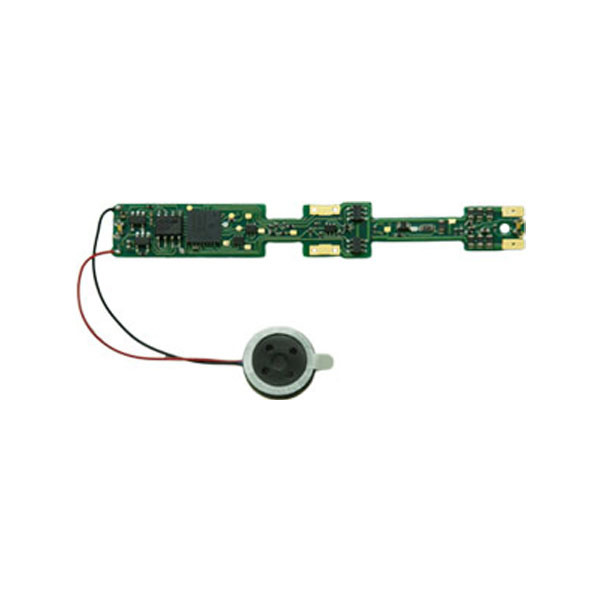

Board replacement SoundFX®/Motor/FX3Function decoder for N Scale Kato SD40-2 and similar locos

Board replacement decoder for N Scale Kato
SD40-2 and similar locos
Preloaded with a Dual SD40-2/GE-Evolution diesel schemes
4 FX3 Functions

Visit Digitrax Sound Depot to learn how to customize the sound project in your decoder and how to download other sound projects.

1 Amp Continuous/1.25 Amp Peak Rating
13mm 8 Ohm round speaker
Full Digitrax Series 4 mobile decoder feature set
Speed Tables
Simplified Scaleable Back EMF
Advanced Consisting
Forward and Reverse Trim
Transponding
Supersonic Motor Drive
Decoder Lock and much more
Use PR3 and SoundLoader Software to download your own fully customizable sound scheme to the
decoder
No external sensor required for sound workload changes


Specifications

Size
Board Replacement
Installation
Board Replacement
Function Outputs
4-200mA
Function Type
FX3
Features
Series 4
Current Rating
1.0 Amp (1.25 Amps Peak)
Speaker
8 Ohm 13mm round
Capacitor
100uF (6.25mm round x 7.8mm high)
Simultaneous Voices
3
Onboard Sound Memory
4 Megabit
