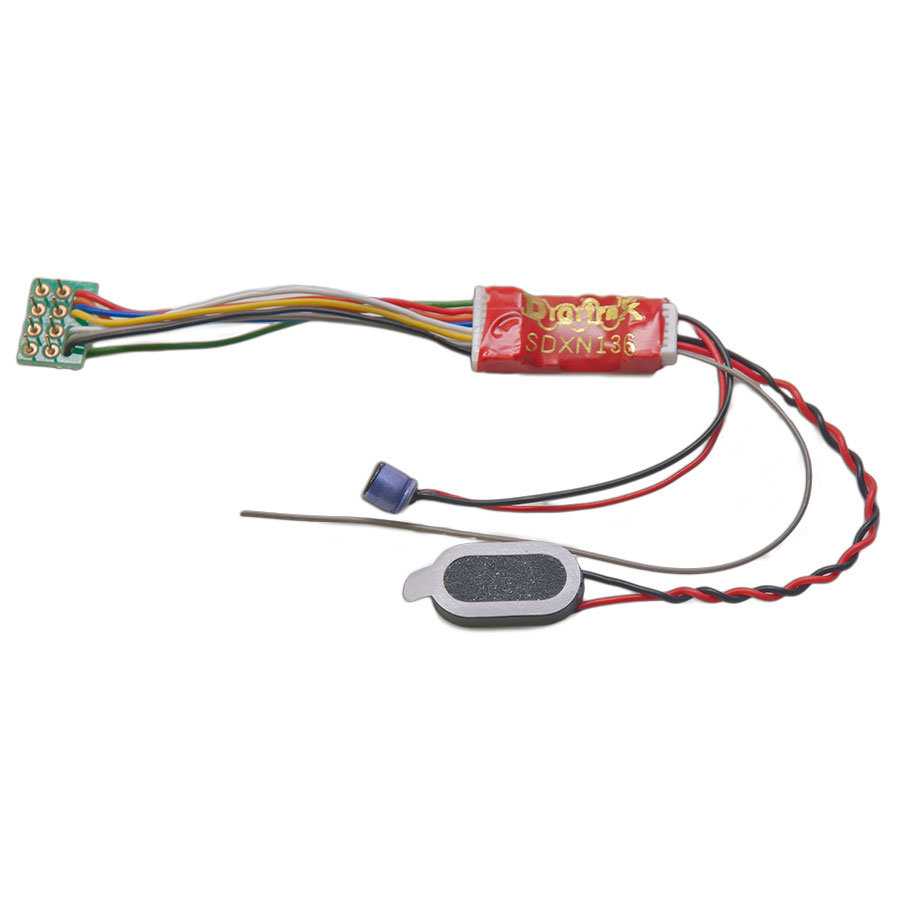

Product Photo - Click To View Larger Image
Digitrax SDXN136PS 1 Amp 3 Function HO/N DCC Sound Decoder - 16 bit Sound, Med Plug 1.2" wires
Manufacturer: Digitrax (Made in USA)
Part Number: SDXN136PS (245-SDXN136PS)
Condition: New
Expected Price: 🇨🇦 $83.94 (Plus applicable taxes)
☑️  This item is not currently in stock, but should be available to order.
Quantity:
Description:
Great 16 Bit Sound at a Great Price! For N and HO!

Wired 16 Bit Customizable SoundFX Decoder
4 Simultaneous Voices
8 Selectable Preloaded Steam & Diesel Sound Schemes
Downloadable Sound
16 Megabit onboard sound memory
1.0 x 0.41 x .19 in. (25.6 x 10.46 x 4.93 mm)
8 Ohm 10 x 18 mm oval speaker
100uF Capacitor
Accepts PX112-6 Power Xtender
1.0 Amp/ 2.0 Amps Peak Motor Current Rating
3 FX3 Functions-500mA Total Function Current Rating
FX3 optimized for LEDs or lamps
New Series 6 features

Use PR3 and SoundLoader 2.0
16 Megabit on board sound memory
8 Ohm oval speaker included
1 Watt sound output
330uF Capacitor for sound hold up included
Cam input synchronized steam chuff
Works with PX112-6 Power Xtender

Digitrax SoundFX® Sound System
Your locomotives will sound in scale like the real thing with SoundFX

Customizable 16 Bit Sound
Works with SoundFX 16, 12 & 8 Bit sound files
4 Simultaneous Voices
Downloadable Sound with Digitrax PR3 and SoundLoader 2.0 software
16 Megabit Onboard Sound Memory
1 Watt Sound Output
Cam input-synchronized Steam-chuff option for Steam locos
Scaleable Speed Stabilization(BEMF) optimized for sound operationSoundFX does not require an external rate sensor to vary workload.
Factory 8 Ohm oval speaker on 6 Pin Plug design makes installation quick and easy.

Easy Programming and Installation

Smart Power Management-no more booster or programmer shutdowns!
Program CVs using any Digitrax Compatible Control system without having to buy any extra equipment.
Digitrax Easy Connect 8 Pin Plug for Track, Motor and Function Control.
Direct mode programming.
Decoder Reset CV with or without speed table reset.

Series 6 Decoder Features

Works with PX112-6 Power Extender for improved operation in the presence of intermittent track power.
Digitrax FX3 Functions-Control lights and functions for prototypical lighting effects and on/off control.
Configurable FX3 Pulse Function available on all function outputs.
Improved Scaleable Speed Stabilization (BEMF).

Digitrax LocoMotion® System – Lets your trains run like the real thing!

2 Digit and 4 Digit Addressing.
Basic, Advanced & UniVersal Consisting.
SuperSonic motor drive for silent operation.
Transponder Equipped ready for transponding on your Layout.
Motor Isolation Protection helps prevent damage to your decoder.
DCC Compatible.
FCC Part 15, Class B RFI compliant.

Digitrax “No Worries” Warranty


Specifications

Current Rating-Motor
1.0 Amps/2.0 Amps Max
Size
1.0 x 0.41 x .19 in. (25.6 x 10.46 x 4.93 mm)
Installation
Wired
Function Outputs
3
Function Type
FX3
Features
Series 6
For Use With
PX112-6 Power Xtender
Current Rating-Functions
500 mA
Speaker
8 Ohm 10 x 18 mm oval speaker
Capacitor
100uF Capacitor
Onboard Sound Memory
16 Megabit
Warranty
No Worries Warranty
Sound Projects Supported
16, 12 or 8 bit sound
UPC: 652667200257
