Product Details
Circuitron 800-6100 Tortoise Switch Machine Remote Mount RTM Manufacturer: Circuitron (Made in USA)
Part Number: 6100 (800-6100)
Condition: New
Our Price: 🇨🇦 $21.99 (Plus applicable taxes) MSRP: 🇺🇸 $19.95 (🇨🇦 $27.93) - Save $5.94 / 21%! ✅ 2 in stock and available to purchase! ☑️ 5 available at our distributors as of last update. ❓ Unknown if we can order any more from the manufacturer. Please feel free to enquire.
Description:

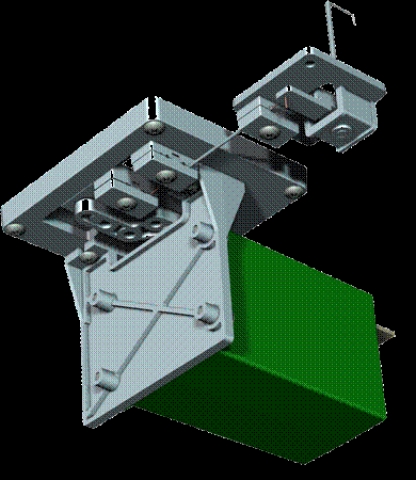

The CIRCUITRON Remote Tortoiseâ„¢ Mount consists of a molded base mechanism to which the Tortoiseâ„¢ (not included) is mounted. An adjustable lever arm is fastened onto the Tortoiseâ„¢ output and drives a stainless steel wire inside a flexible teflon tube, much like a sub-miniature choke cable. This thin wire attaches to a compact actuator mechanism and is mounted beneath the turnout. It includes a spring wire and brass tube to transmit the motion to the points above. The mounting bracket (with Tortoiseâ„¢) may be secured in any position and up to 18" away from the turnout points"”even above the layout inside a structure, if desired. The points actuating mechanism requires 1/2" clearance under the turnout sub-roadbed. The RTM is fully adjustable for all scales and brands of turnouts. |
