*without Gearboxes*

The #118 coupler will work anywhere a NO.5®, #28, #38, #58, #118, #119 & #148 Coupler will work.

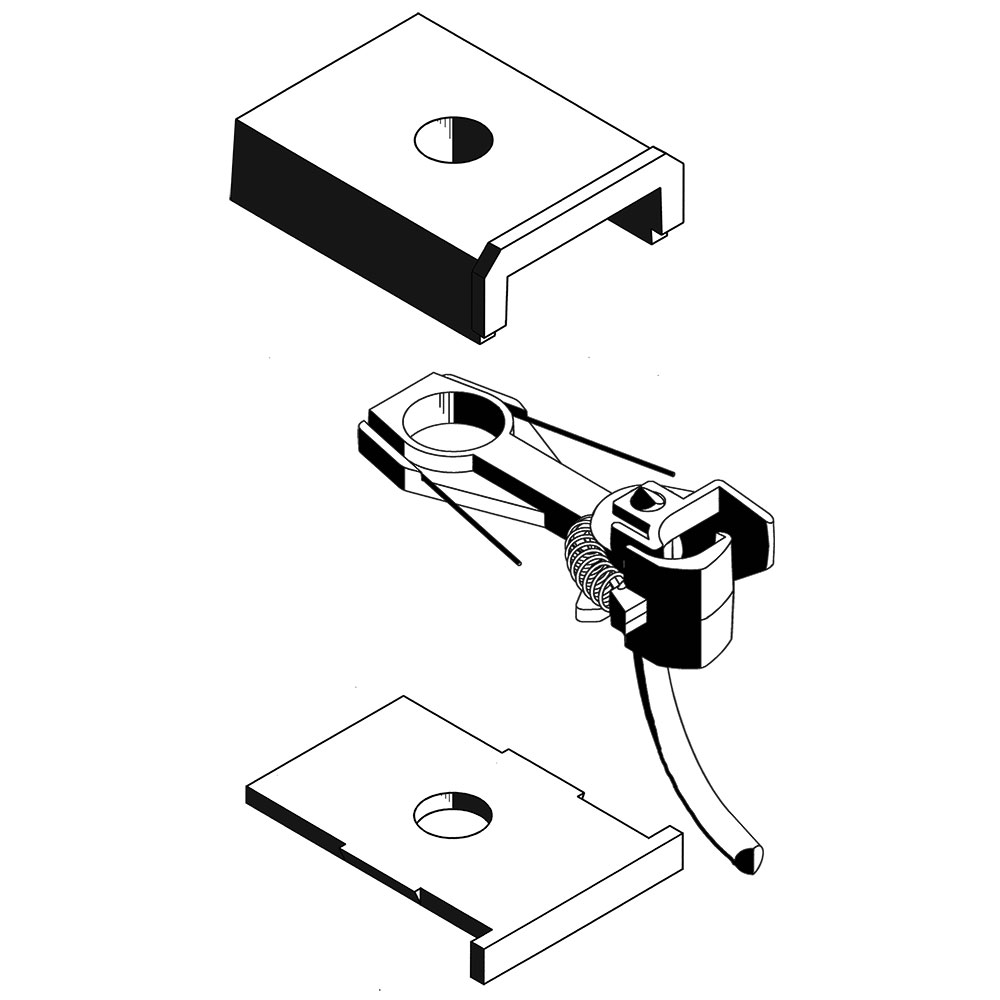

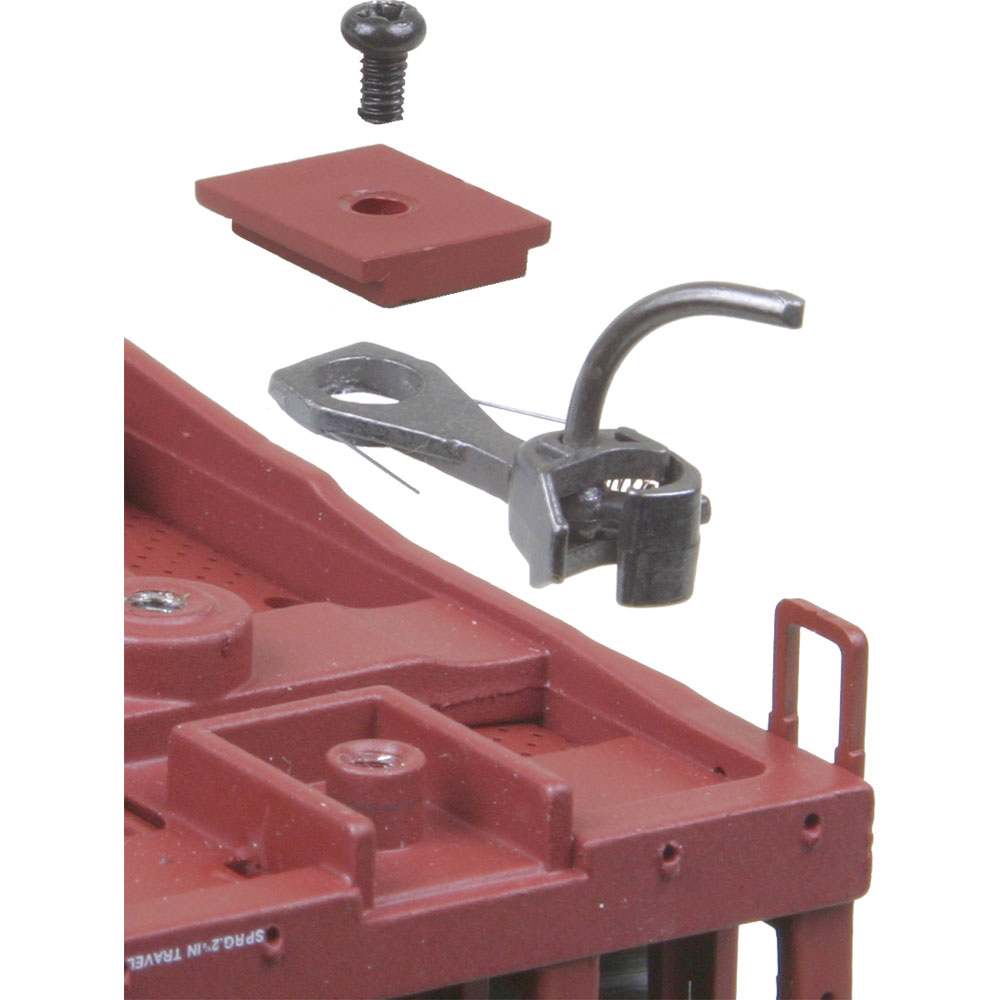

The #118 "SF" Kadee® Magne-Matic® WHISKER® Coupler features a All Metal Coupler, Metal WHISKER® Centering Spring. The #118 "SF" Coupler may be mounted in Manufacturers cast-on coupler pockets or any of our HO-Scale draft gear boxes (except #233 30-series gear box).

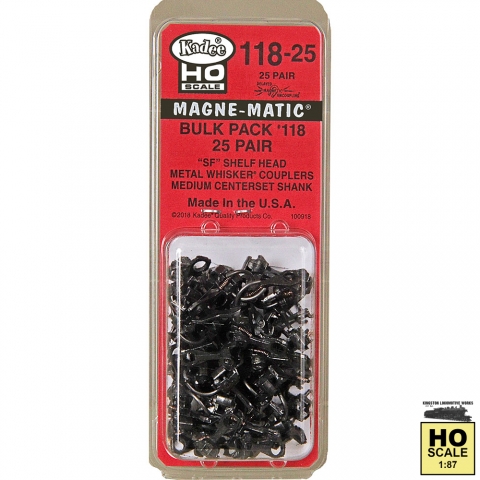

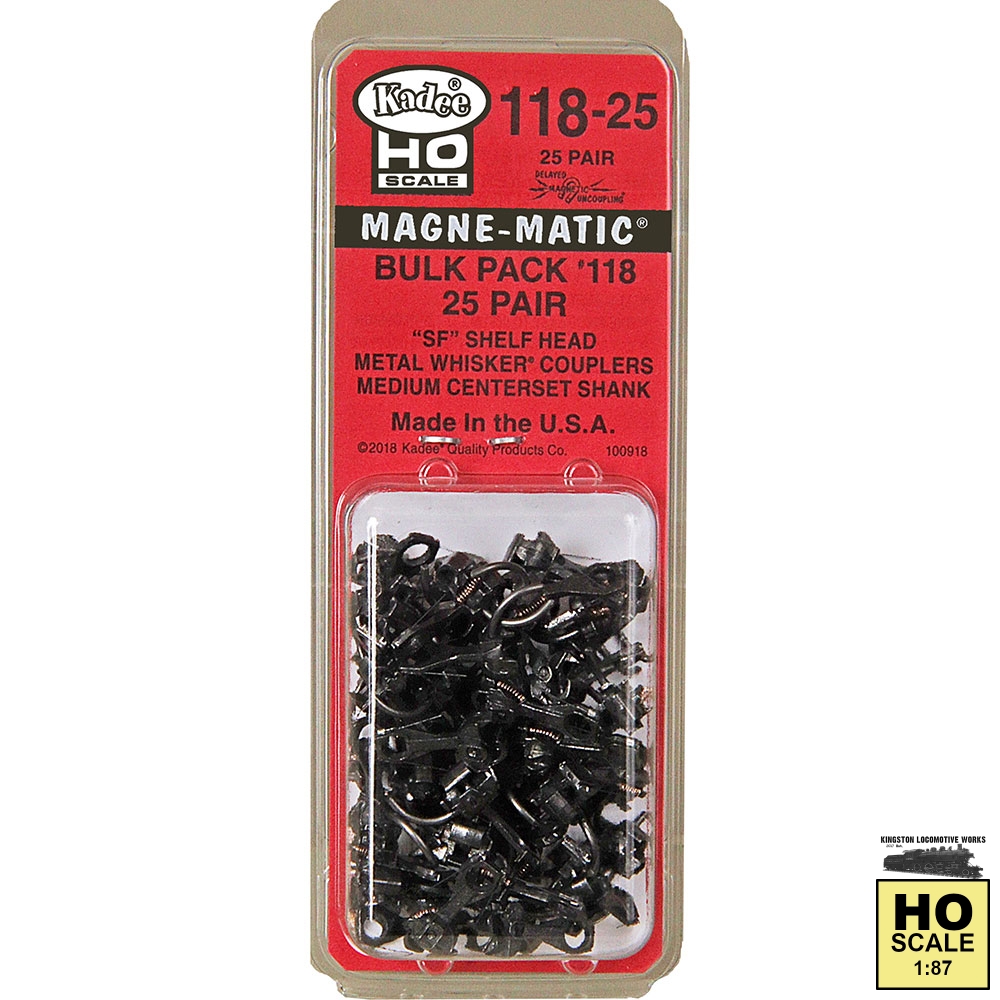

Package Includes:
(25) Pair SF Metal Shelf Whisker® Magne-Matic® Coupler - Medium Centerset Shank
(Extra) #622 Knuckle Springs


#118 Whisker® Metal Coupler Features:
Material - Metal

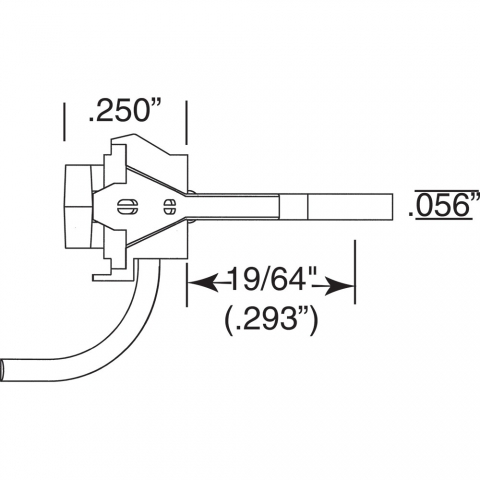

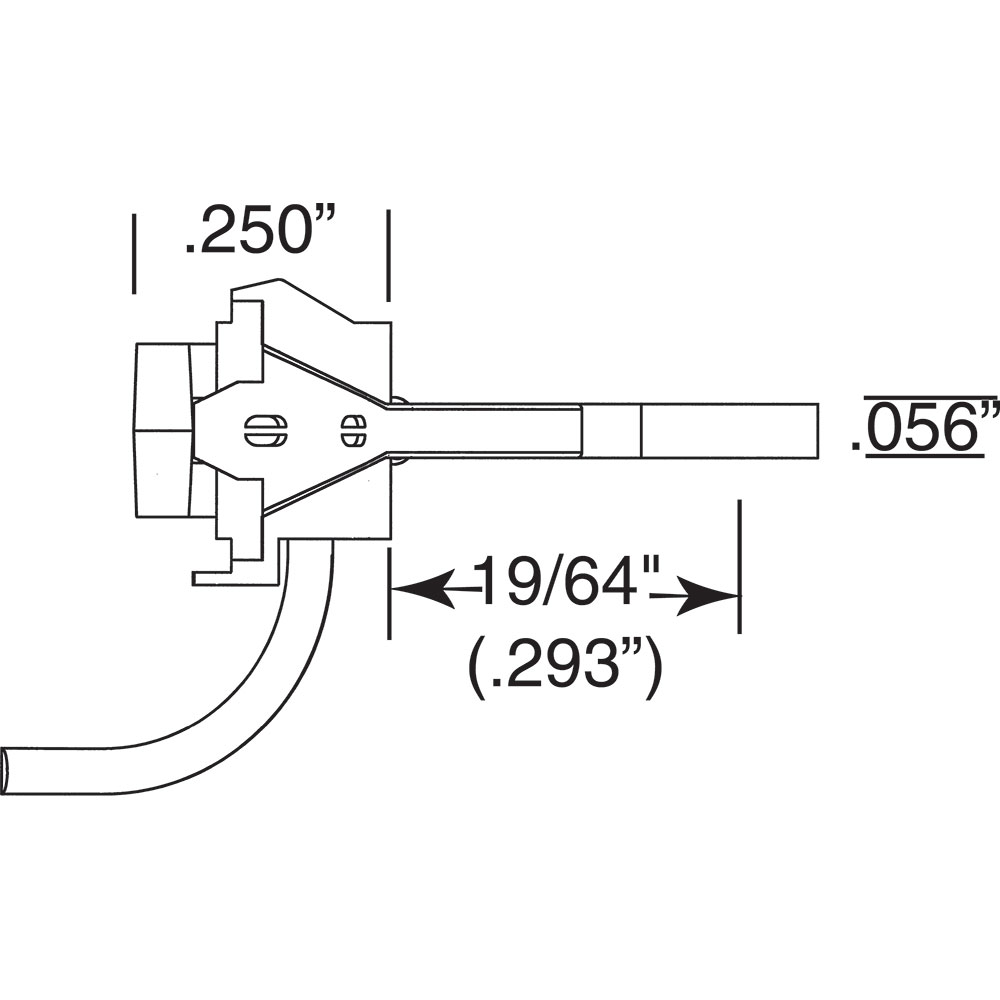

Shank Length - Medium (9/32") (center hole to back of coupler head)
Coupler Offset - Centerset
Knuckle Spring - #622
Centering System - Whisker®
Head - SF Metal Shelf Head
Works In Place of - NO.5®, #58, #28, #38 (#148 in a #252 box), #118, #119, #158, & medium centerset "clone" couplers
Works With - #213, #232, #234, #242, #252, #262, & most manufacturer cast-on coupler pockets* (molded-on gearbox).

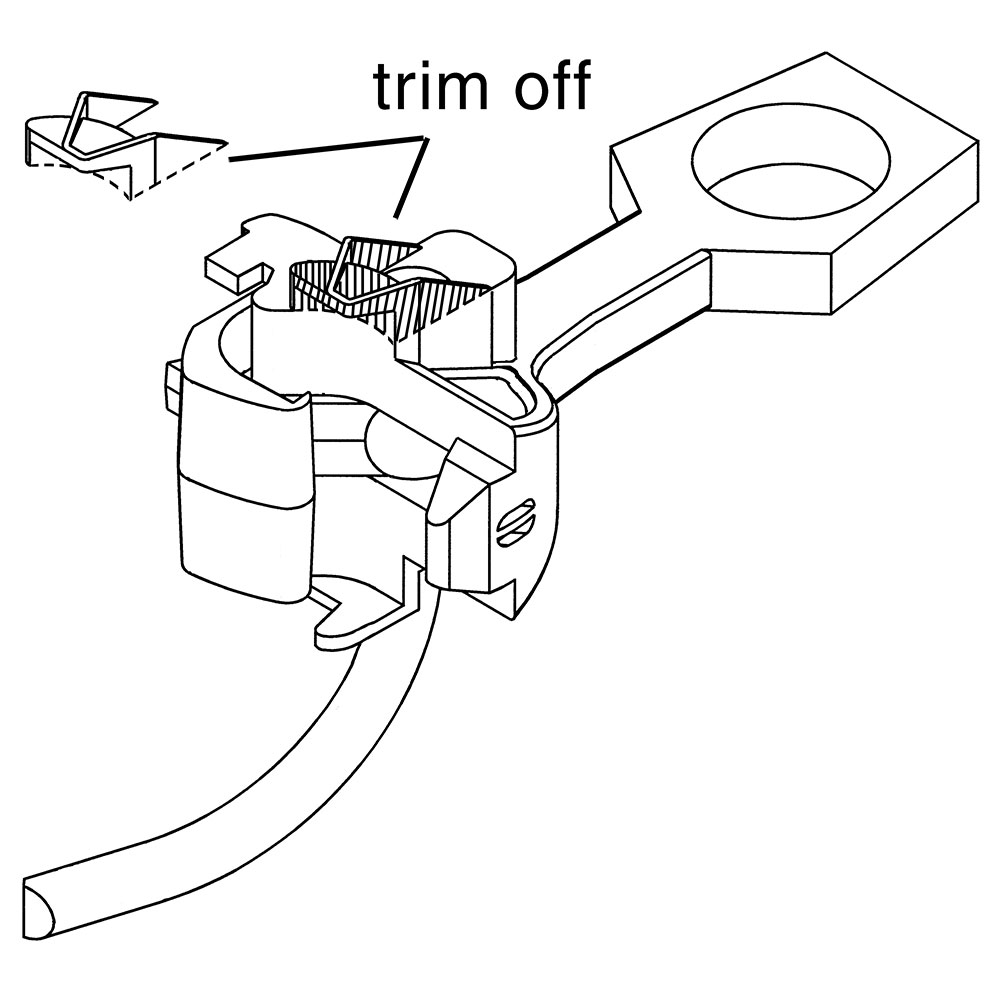

*Note: Some manufacturers now produce models with non-industry standard coupler pockets (molded-on gearbox). These shallower coupler pockets may require slight modification to the gearbox or coupler to function properly. If the model has a shallow molded-on gearbox, the top of the #118 Whisker® coupler shank may be filed thinner to fit the shallower cast-on coupler pockets.

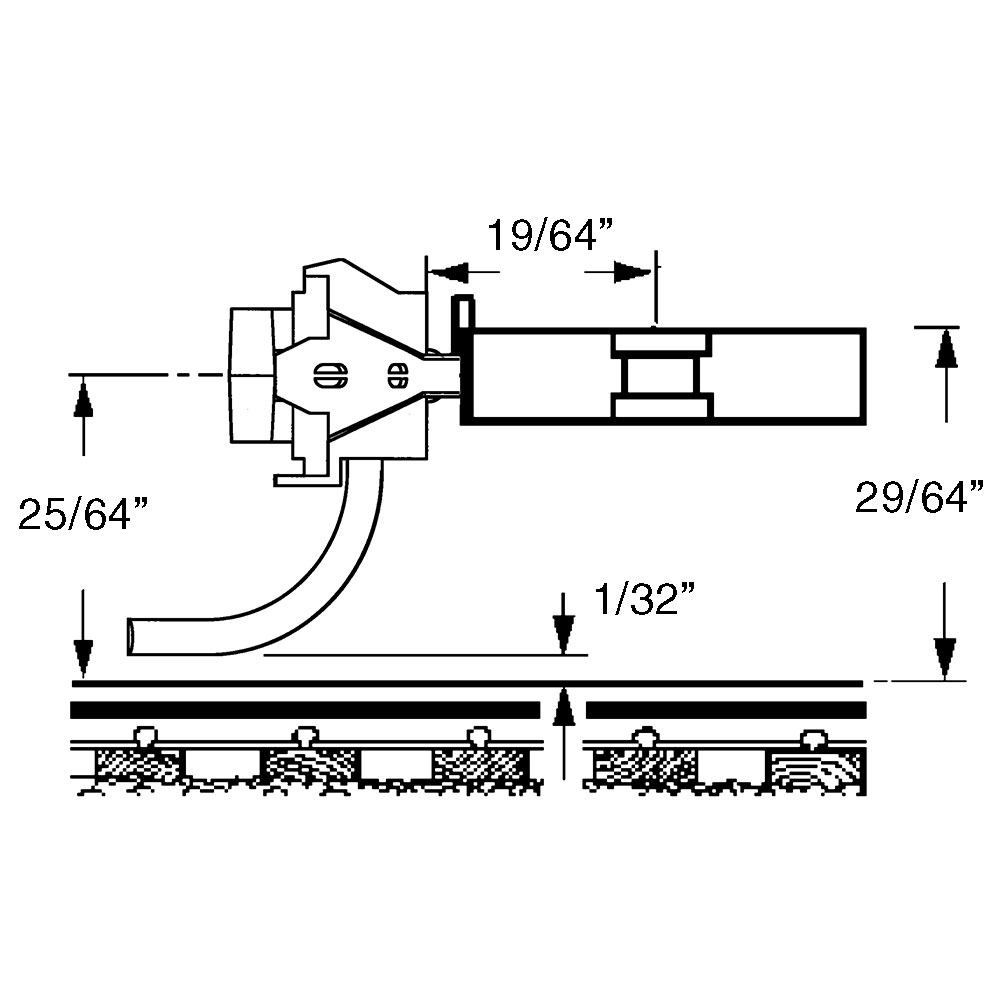

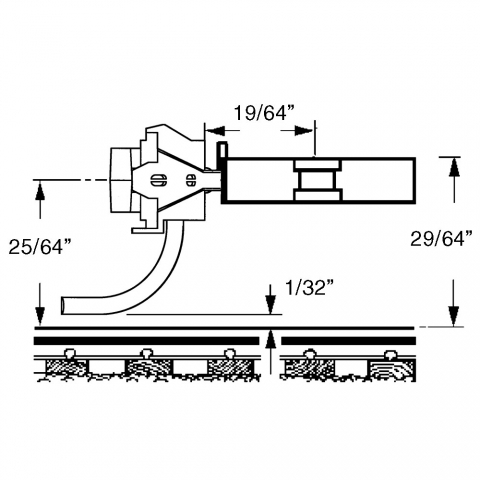

Mounting Specifications:
Mounting Height - 29/64"
Centerline - 25/64"
Trip Pin Height - 1/32"
