*without Gearboxes*

The #156 "Scale" Long Coupler will work anywhere a #26, #36, & #146 Coupler will work.

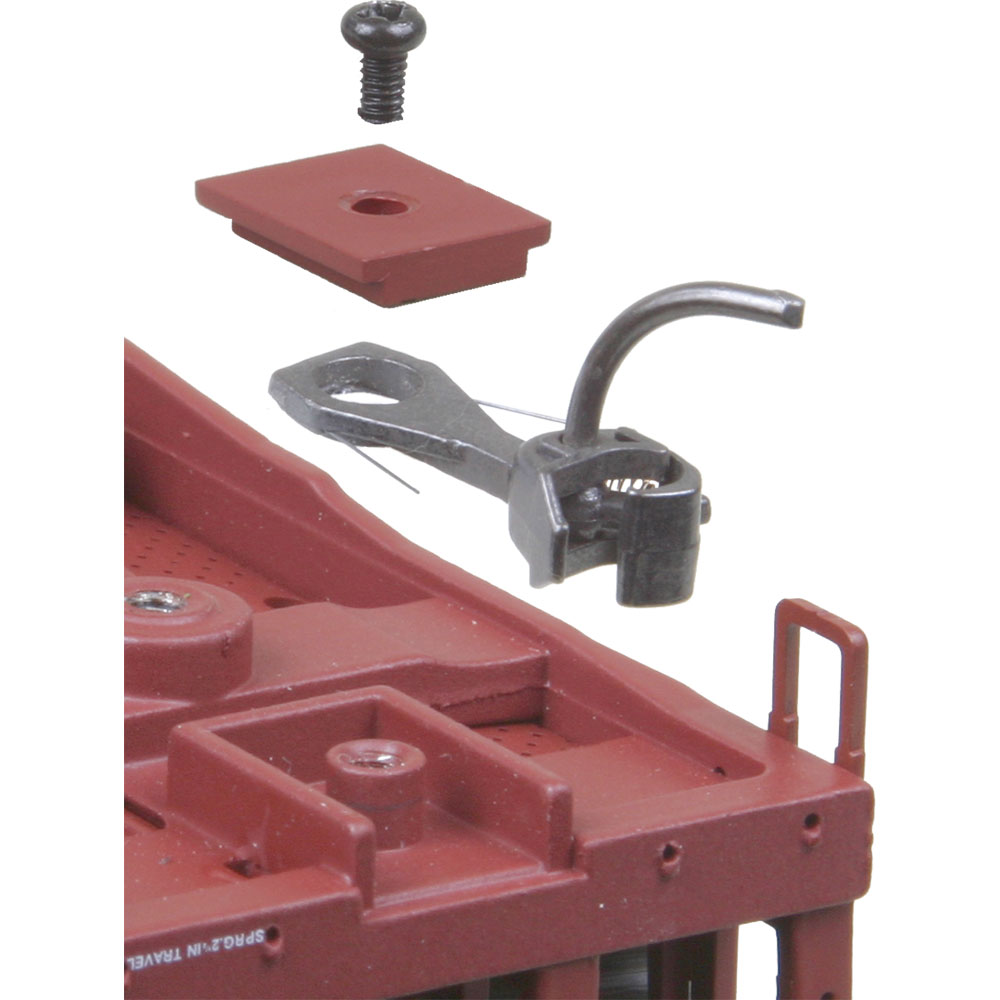

The #156 "Scale" All Metal Self-Centering WHISKER® Coupler features a "Scale" Metal Coupler (a smaller head coupler which is more to scale and is patterned after the type 'E" couplers) & Metal WHISKER® Centering Spring, insulated Draft Gear Box and Lid. The #156 Coupler may be mounted in Manufacturers cast-on coupler pockets or any of our HO-Scale draft gear boxes (except #233 30-series gear box). The coupler will couple and uncouple with other Kadee® HO and HOn3 couplers. The coupler has the same shank length as the #26, 36 or 46 coupler which will allow the modeler to remove the existing #26, 36 or 46 coupler and replace with the new smaller coupler. The #156 coupler is made of the same metal as the #46 for strength and rigidity.

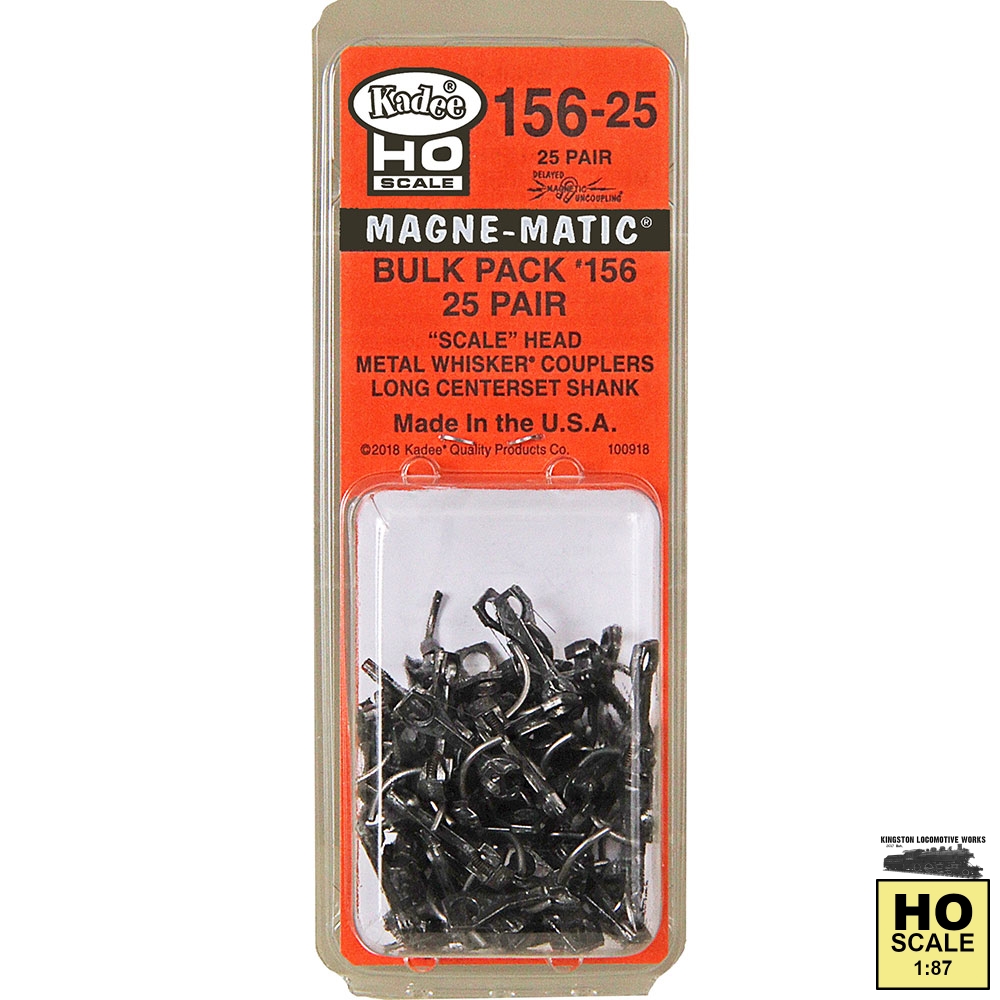

Package Includes:
(25) Pair #156 Scale Whisker® Metal Couplers - Long Centerset Shank
(Extra) #625 Knuckle Springs

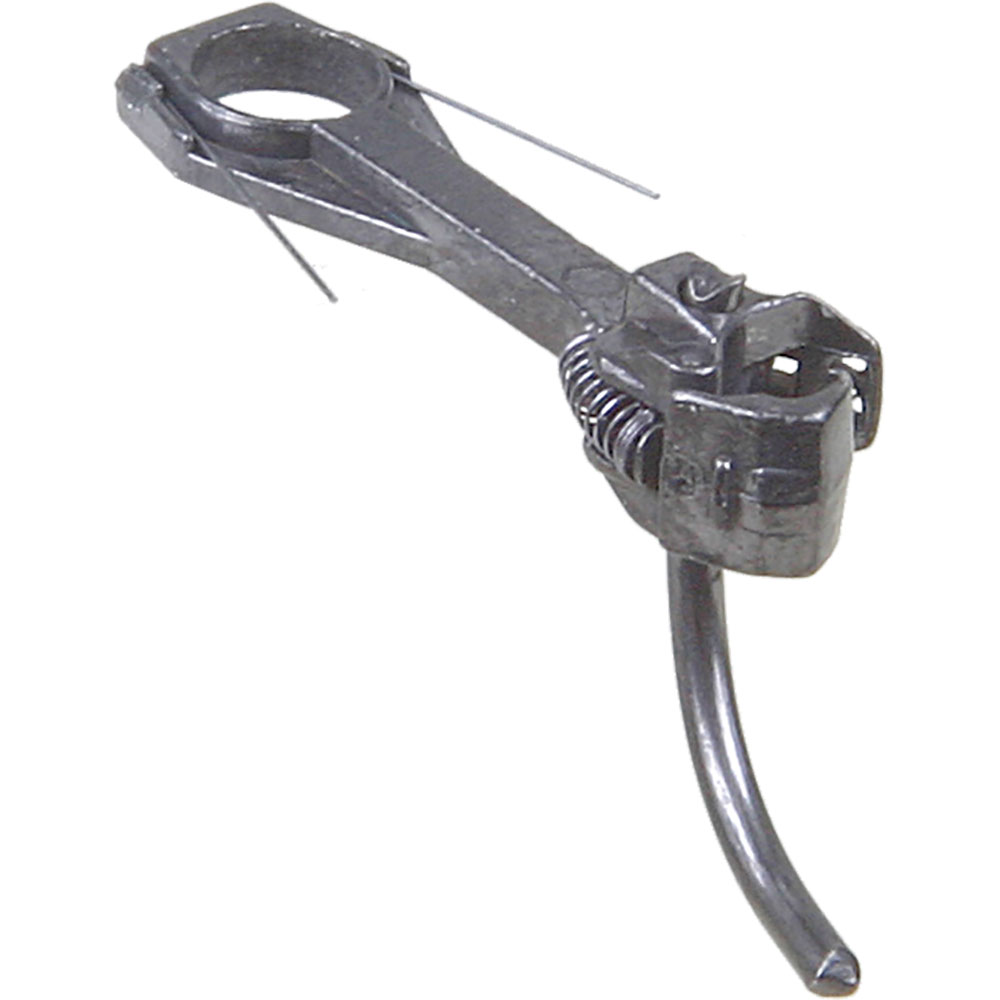

#156 Scale Whisker® Metal Coupler Features:
Material - Metal

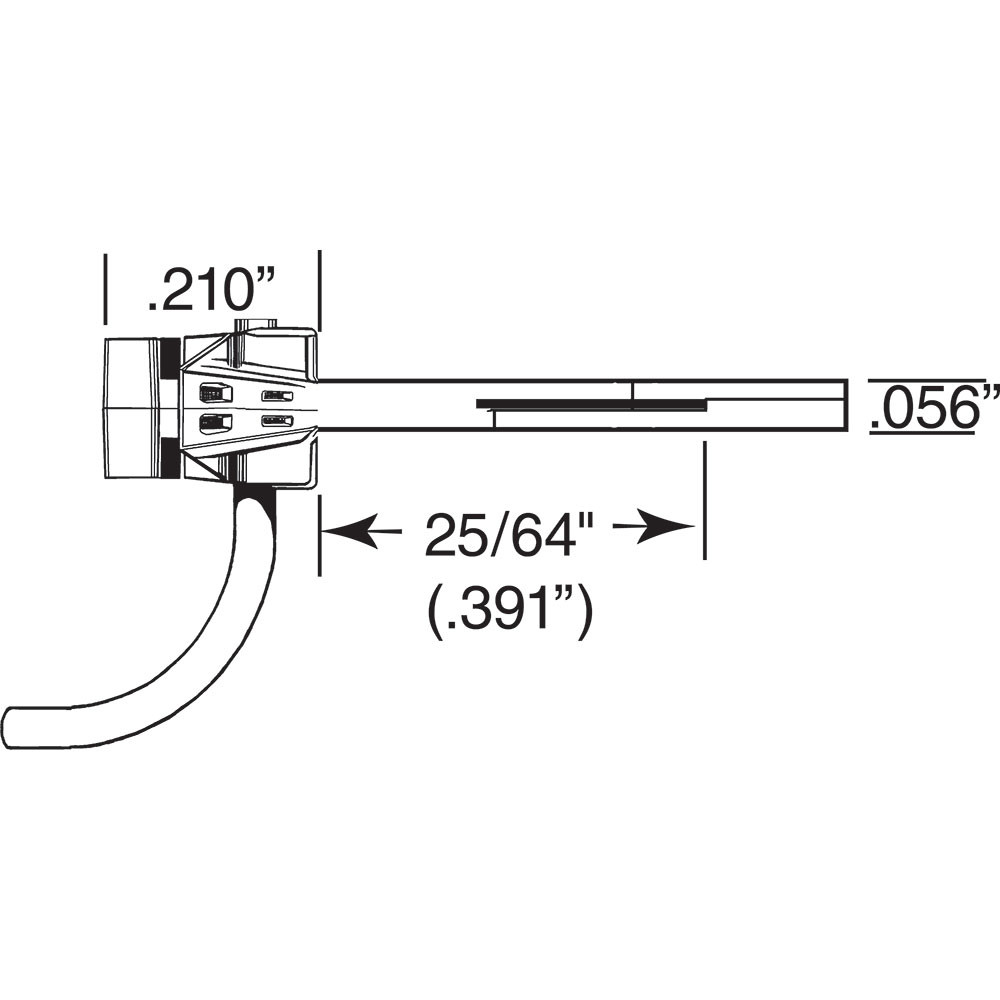

Shank Length - Long (25/64") (center hole to back of coupler head)
Coupler Offset - Centerset
Knuckle Spring - #625
Centering System - Whisker®
Head - "Scale" Head
Works In Place of - #26, #36 (#146 in a #252 box), long centerset "clone" couplers
Works With - #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes


Mounting Specifications:
Mounting Height - 25/64"
Centerline - 25/64"
Trip Pin Height - 1/32"
Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
