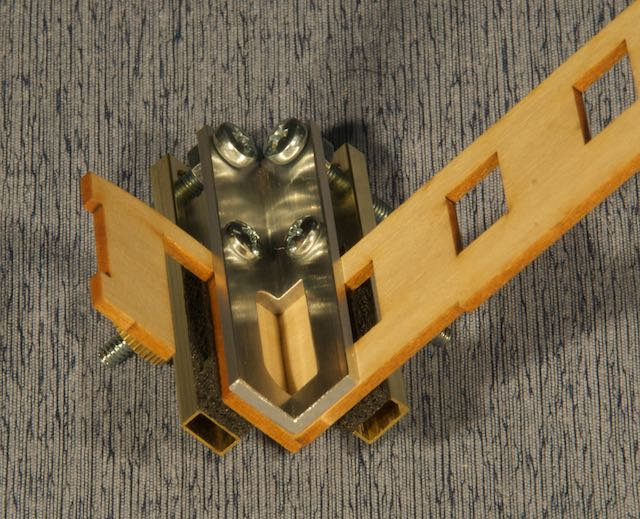

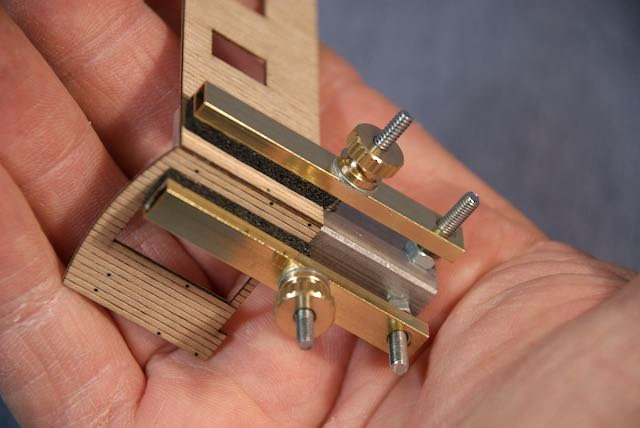

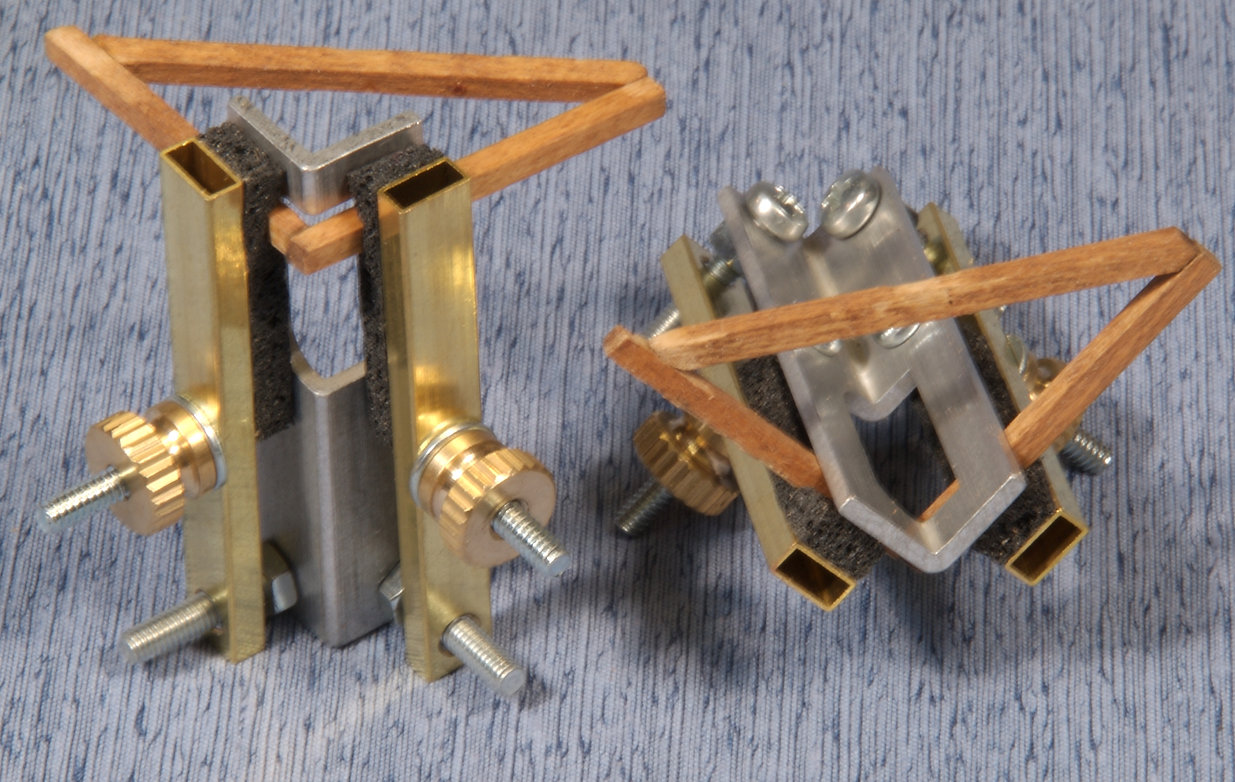

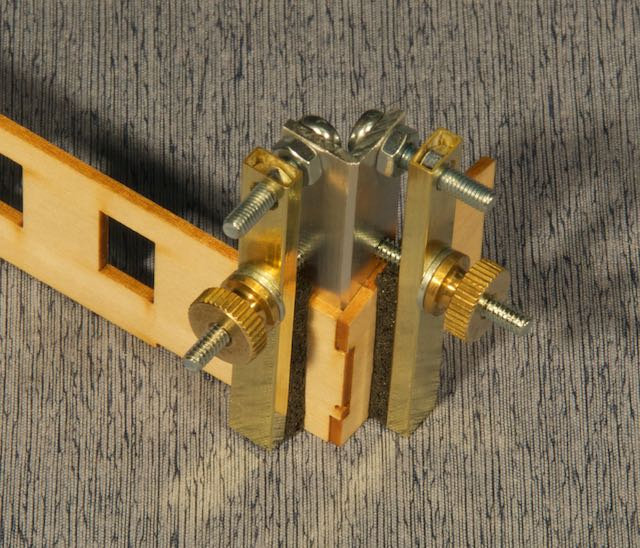

The Mini Right Clamp is our smallest clamp and is useful with parts that may be too small to hold by hand. Jaw length of 1" works well for HO Laser cut cabooses and smaller out buildings. End Screws adjust Clamping Tubes to provide uniform pressure over the length of the clamp. A small 11/16" long Base Angle Notch allows location to apply glue to inside corner of the joint without parts falling into notch. Can also be used for joining other materials up to 5/16" thick.


Model Number: AC-2-2
Jaw Langth: 1.0" (25mm)
Overall Length: 1.92" (49mm)
Base Angle Size: 0.4" (10mm)
Max Jaw Opening: 5/16" (8mm)
Weight: 0.86 oz (24g)

Jaw Length in Scale Feet:

N Scale: 160/1, 13 scale feet
HO Scale: 87/1, 7 scale feet
S Scale: 64/1, 5 scale feet
O Scale: 48/1, 4 scale feet
G Scale: 22/1, 2 scale feet
