Product Details
Coffman AC-3-2 Long Right Clamp
Manufacturer: Coffman (Made in USA)
Part Number: AC-3-2 (AC32)
Condition: New
This item is not currently in stock. Availability status is unknown. Please feel free to enquire about ordering this product.
Last Selling Price: 🇨đŸ‡Ļ $31.01 (April 2023)
Description:
The Long Right Clamp is much like The Original Right Clamp but with the extra length of a 2-3/4" long jaw. End Screws adjust Clamping Tubes to provide uniform pressure over the length of the clamp. Two 1 inch Base Angle Notches allow locations to apply glue to inside corner of the joint and adding corner stiffeners. Can also be used for joining other materials up to 5/16" thick.

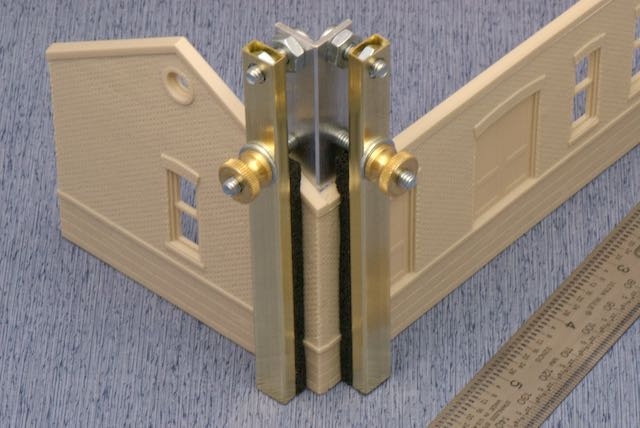

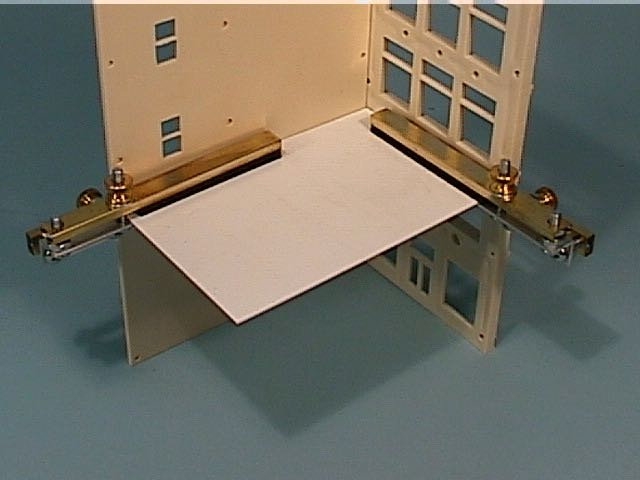

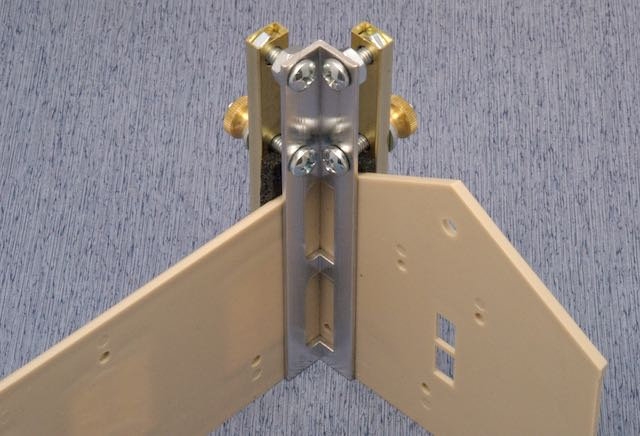

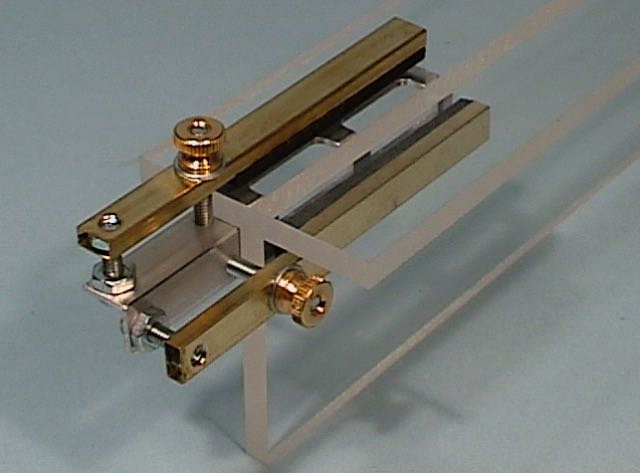

Photos show clamp holding walls of a DPM structure, holding a floor in a City Classics structure. The photo showing the plexiglass parts demonstrates the Right Clamp's ability to also hold "T" shaped assemblies.



Model Number: AC-3-2
Jaw Length: 2.75" (70mm)
Overall Length: 4.17" (106mm)
Base Angle Size: 0.5" (13mm)
Max Jaw Opening: 5/16" (8mm)
Weight: 1.9 oz (54g)

Jaw Length in Scale Feet:

N Scale: 160/1, 36 scale feet
HO Scale: 87/1, 20 scale feet
S Scale: 64/1, 15 scale feet
O Scale: 48/1, 11 scale feet
G Scale: 22/1, 5 scale feet
