Coffman AC-7-1 Long Combo Right Clamp
Manufacturer: Coffman (Made in USA)
Part Number: AC-7-1 (AC71)
Condition: New
Our Price: πŸ‡¨πŸ‡¦ $47.33 (Plus applicable taxes)
MSRP: πŸ‡ΊπŸ‡Έ $43.50 (πŸ‡¨πŸ‡¦ $58.70) - Save $11.37 / 19%!
βœ…  1 in stock and available to purchase!
❓  Unknown if we can order any more from the manufacturer. Please feel free to enquire.
Quantity:
Description:
The Long Combo Right Clamp is our most versatile tool. It has all the features of our Standard Right Clamps plus a "Combination" of customer requested special features.

It has a jaw length of 2-3/4" with a robust 1/8" thick Base Angle.

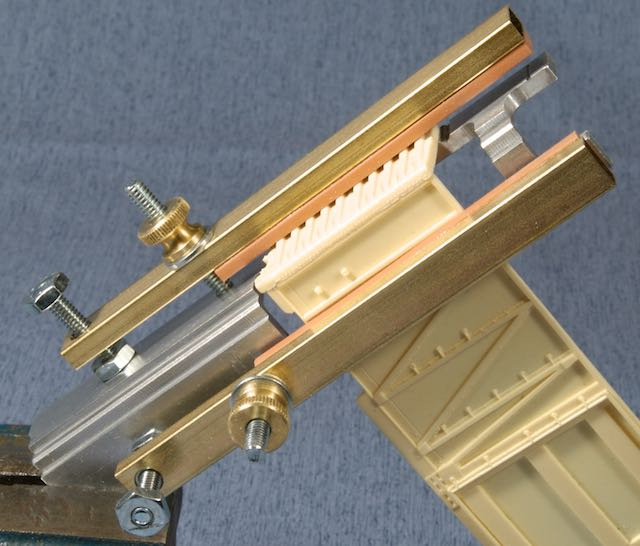

Vice Tab at end allows clamp to be held in a vice for hands free work.
High Temperature Silicone rubber pads allow soldering as well as gluing.

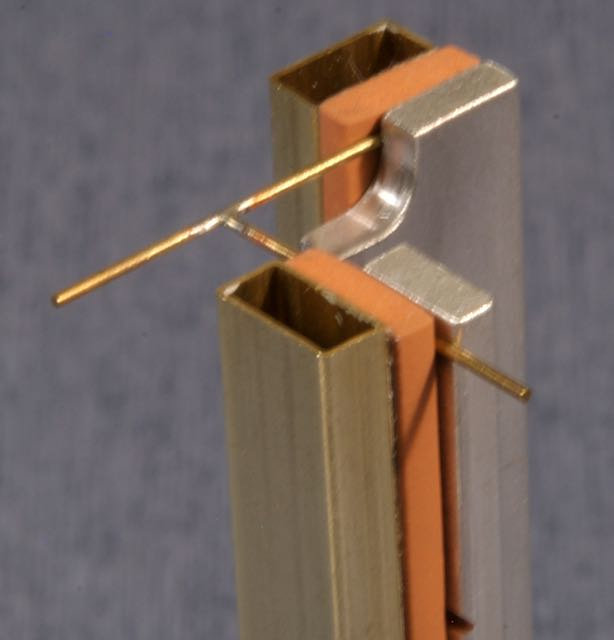

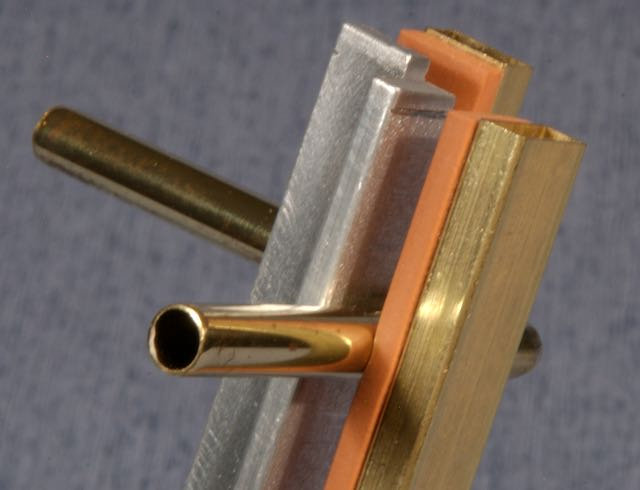

Two sets of V grooves hold small wire, tubing or other structural shapes at 90 deg.

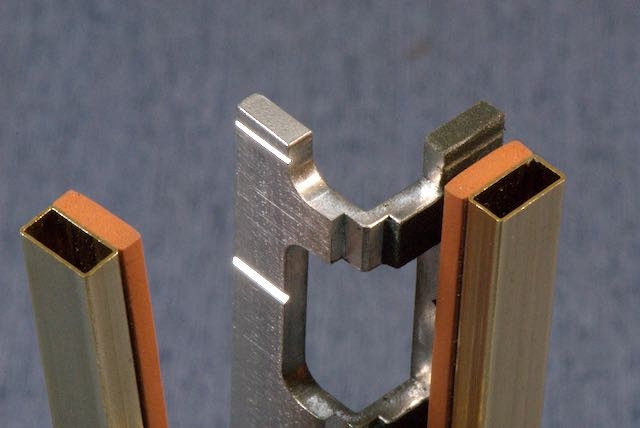

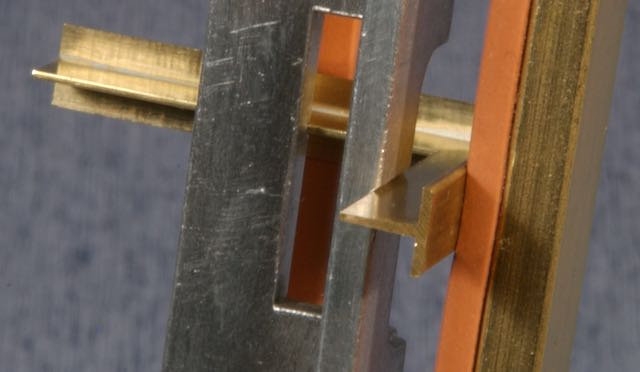

Open ended notch allows soldering or gluing angle or other structural shapes.

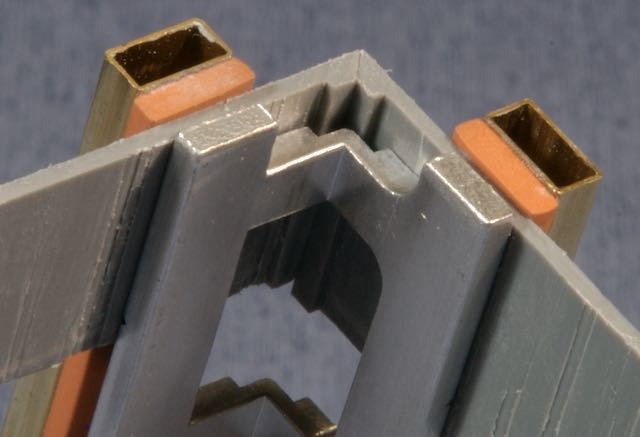

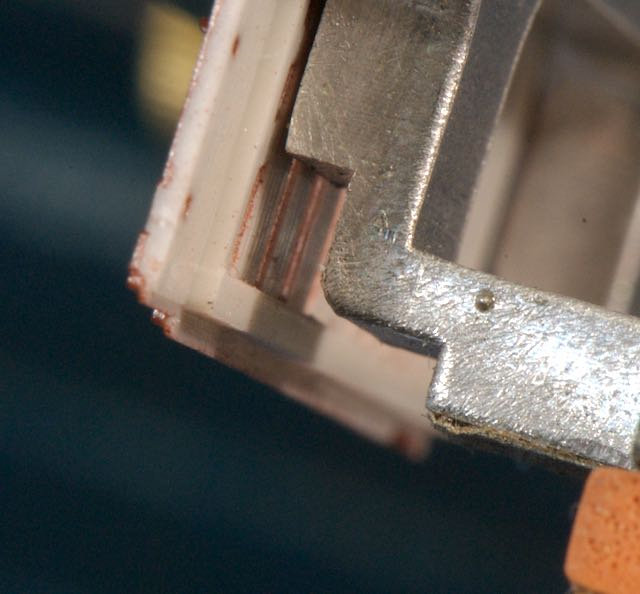

Milled corner relief for corner stiffener angle clearance or parts with edge boss
Thumb nuts for ease of adjusting end screws

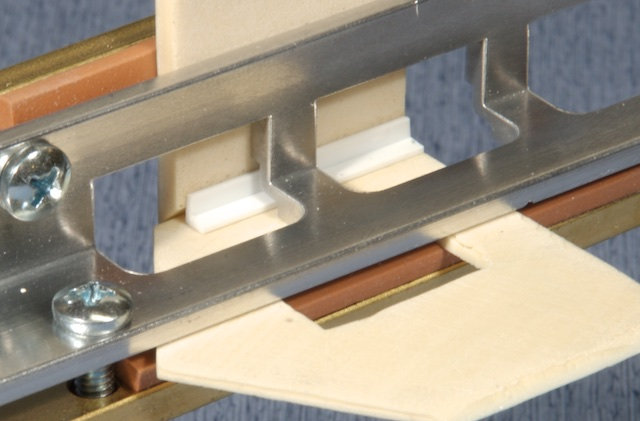

End Screws adjust Clamping Tubes to provide uniform pressure over the length of the clamp. Two 7/8" inch long Base Angle Notches allow locations to apply glue to inside corner of the joint. Clamp can also be used for joining any materials up to 3/8" thick.

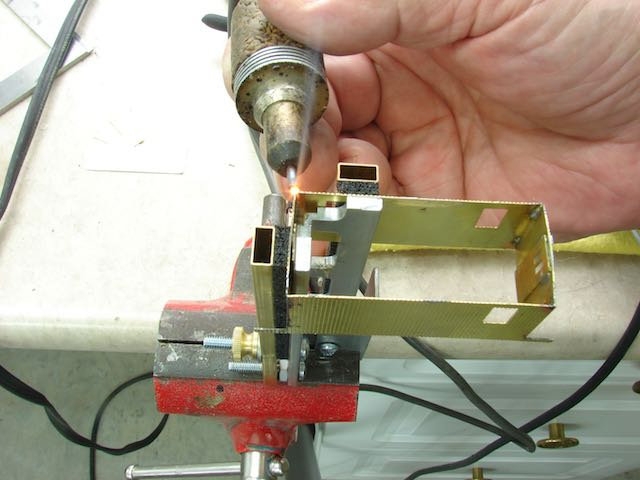

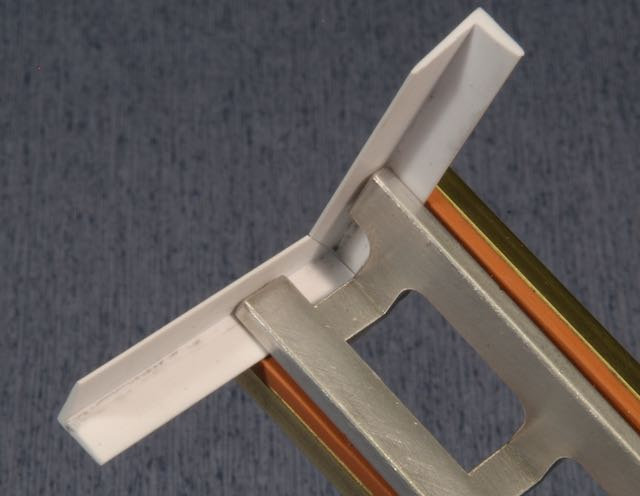

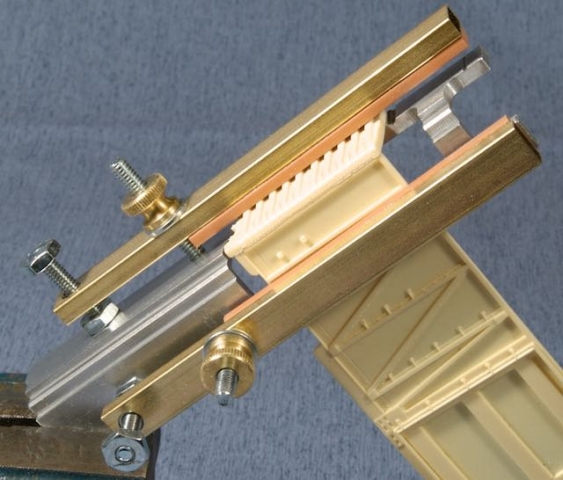

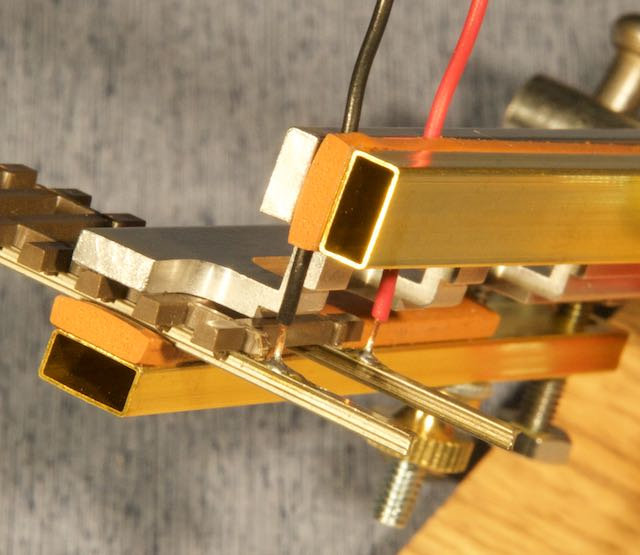

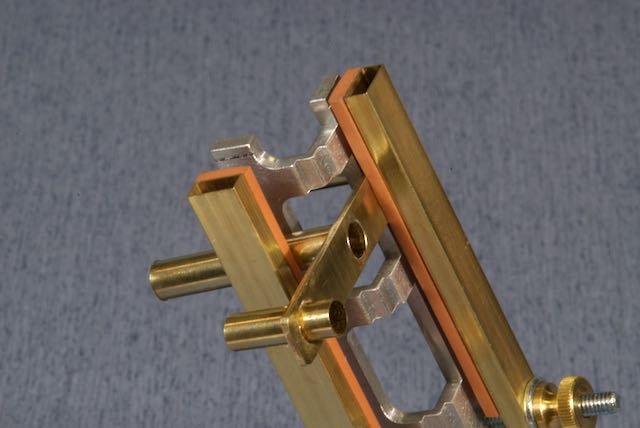

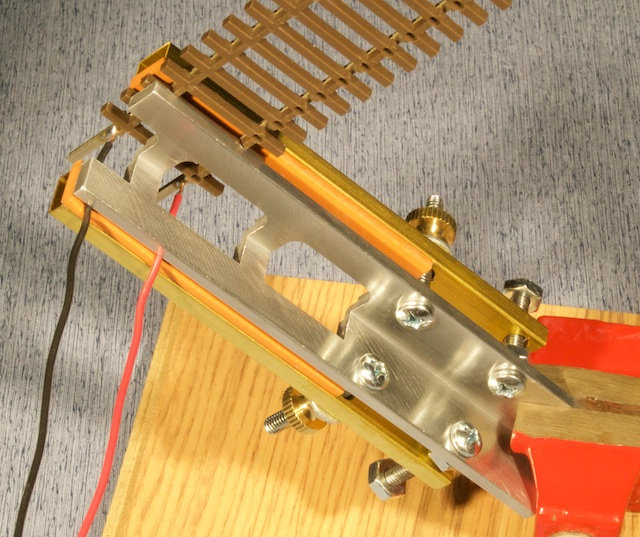

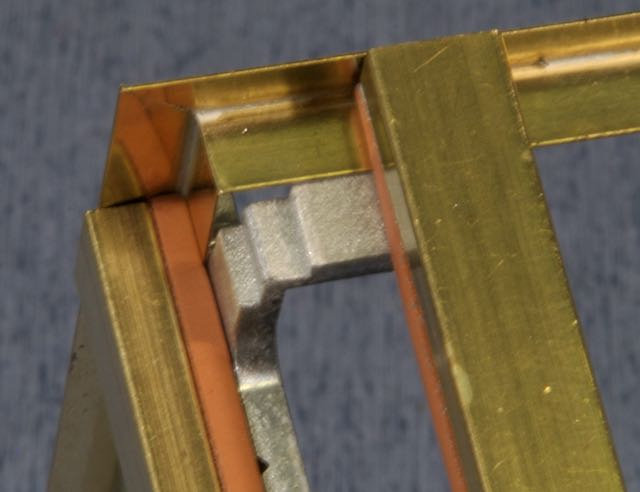

Photos show Long Combo Right Clamps being used for a great variety of gluing and soldering jobs. Notice one photo showing aid to soldering rail lead wires to bottom of rail.



Model Number: AC-7-1
Jaw Length: 2.75" (70mm)
Overall Length: 4.88" (124mm)
Base Angle Size: 0.75" (19mm)
Max Jaw Opening: 3/8" (10mm)
Weight: 2.6 oz (74g)

Jaw Length in Scale Feet:
N Scale: 160/1, 36 scale feet
HO Scale: 87/1, 20 scale feet
S Scale: 64/1, 15 scale feet
O Scale: 48/1, 11 scale feet
G Scale: 22/1, 5 scale feet
