Product Details

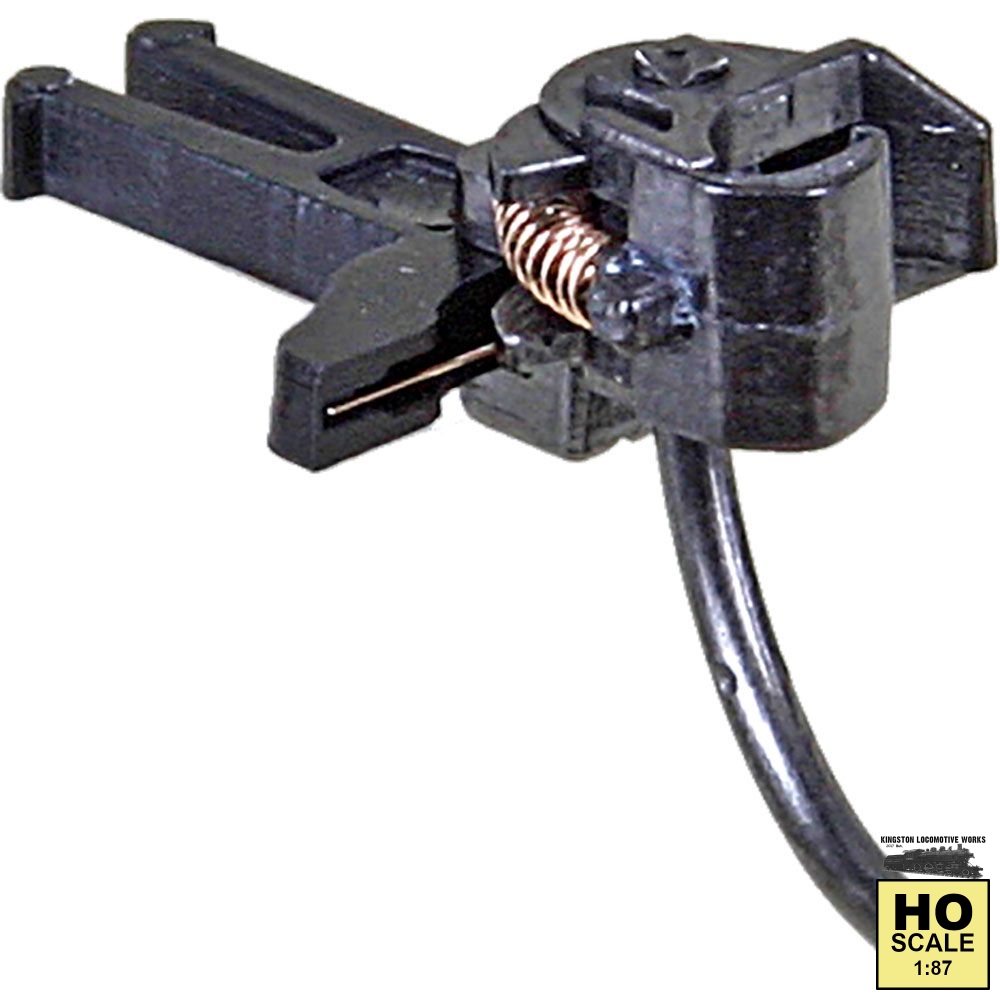

Kadee 17 HO NEM 362 European-Style Couplers - Short (7.11mm, .280 inch, 9/32") (2 Pair)
Manufacturer: Kadee (Made in USA)
Part Number: 17 (380-17)
Condition: New
Our Price: 🇨🇦 $11.17 (Plus applicable taxes)
MSRP: 🇺🇸 $9.19 (🇨🇦 $12.64) - Save 12%!
✅  6 in stock and available to purchase!
☑️  We should be able to order more from the manufacturer.
☑️  1 available at our distributors as of last update.
Quantity:
Scales/Gauges: HO / H0 (1:87)
Description:
This industry leading coupler features an NEM 362 European Style Coupler. The #17 Magne-Matic® NEM 362 European Style Coupler that is mounted in the HO-Scale NEM 362 draft gear box pocket.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Two pair per package
(w/o Draft Gear Boxes)

Package Includes:
(2) Pair #17 Couplers (Aassembled) - Short Underset
(2) #622 Knuckle Springs

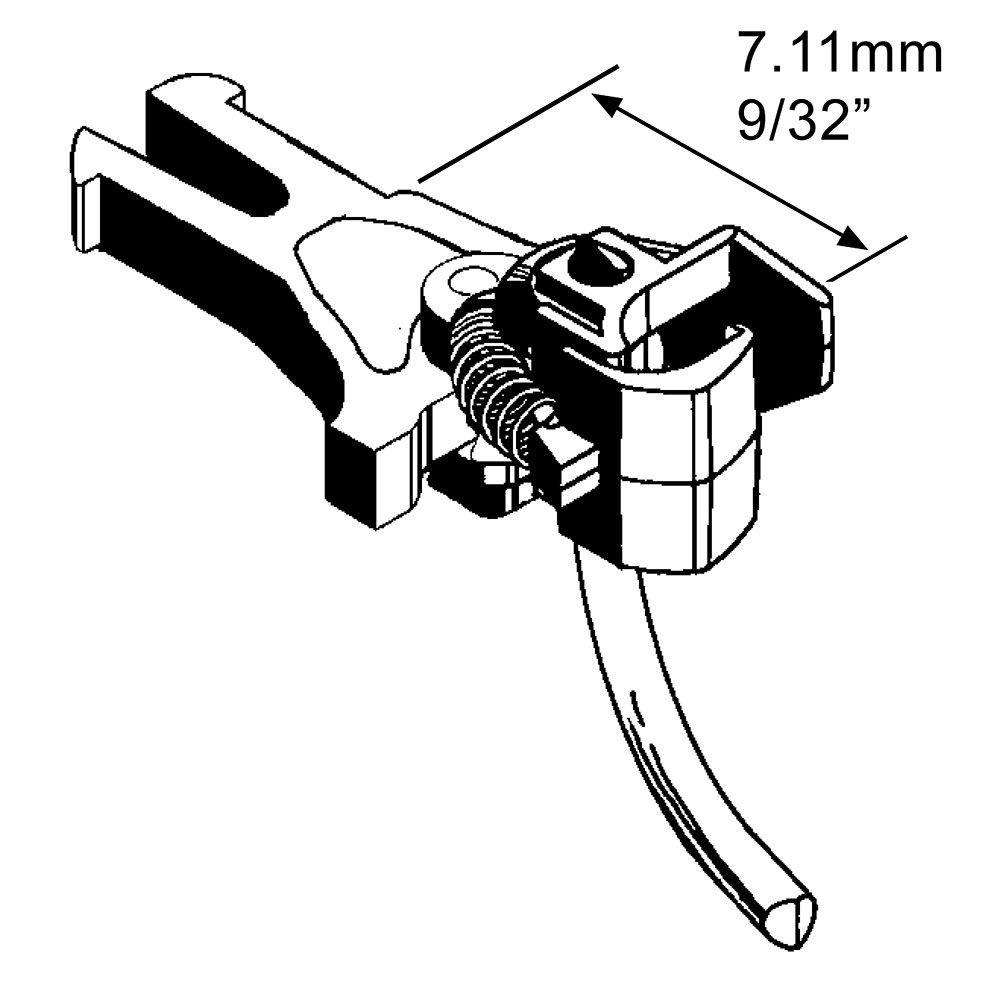

#17 Coupler Features:
Material - Metal Knuckle, Plastic Coupler Swallow-tail Shank
Length - Short (7.11mm , .280 inch , 9/32") (pulling face to the dovetail sholder)
Coupler Offset - Underset
Knuckle Spring - #622
Centering System - NEM European Style Coupler
Head - Standard Head

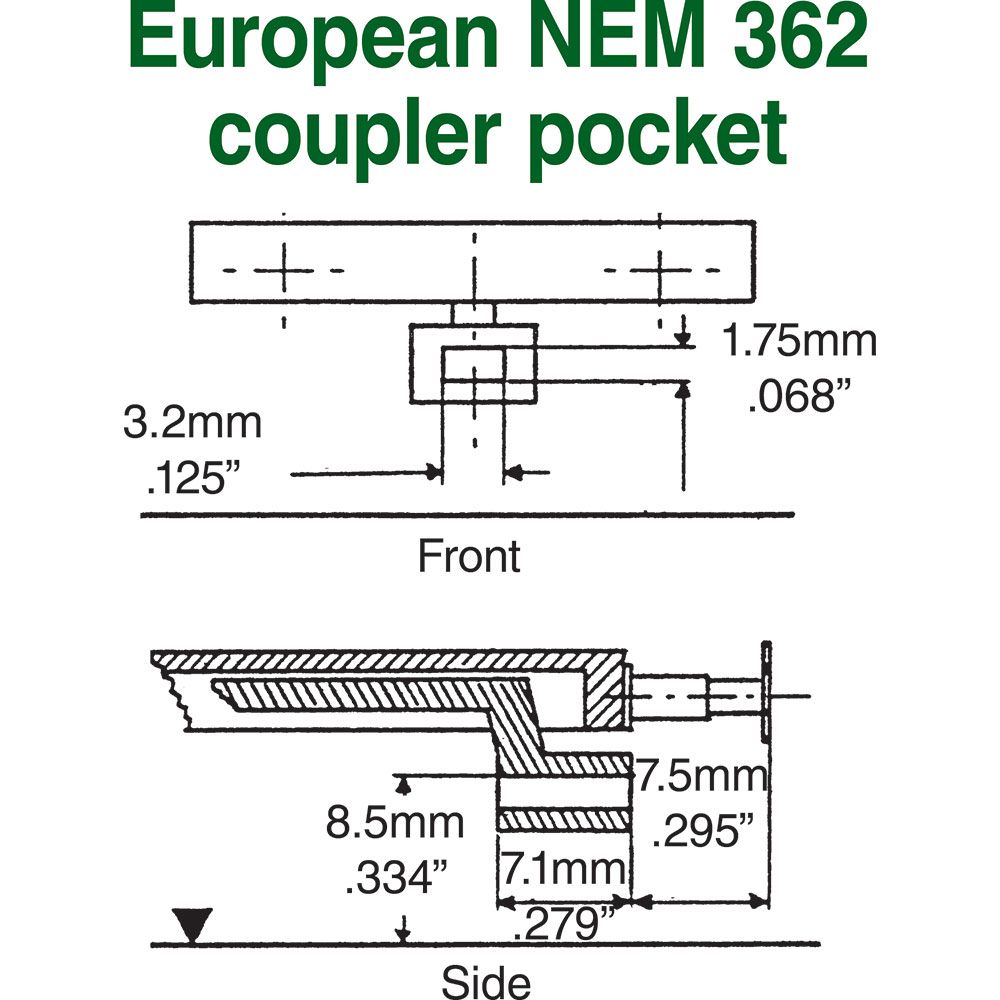

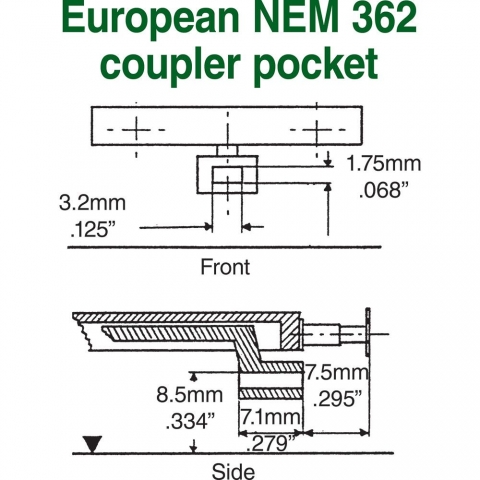

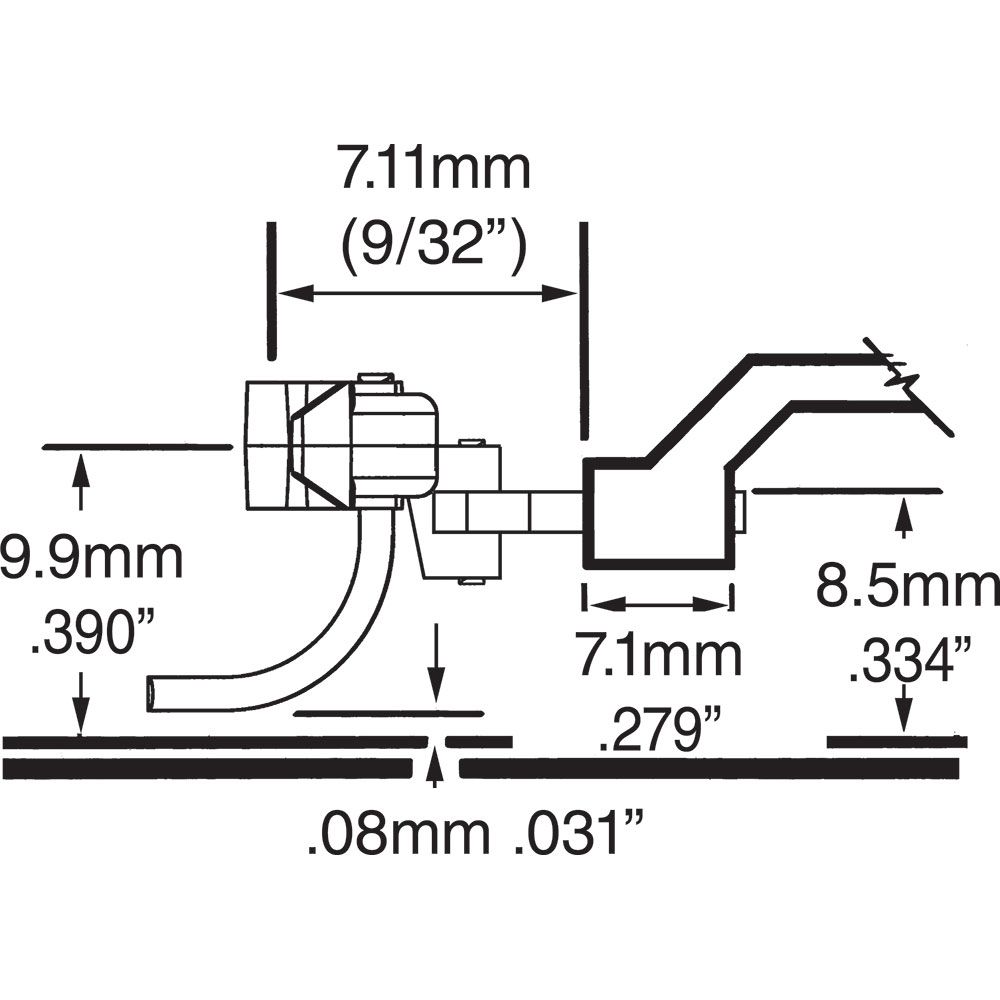

Mounting Specifications:
Mounting Height - 7.11mm , .334"
Centerline - 9.9mm , .390"
Trip Pin Height - .08mm , .031"
UPC: 765484000174
