Kadee 37 HO Plastic Couplers with Gearboxes - Medium (9/32") Underset Shank (Two Pair)
Manufacturer: Kadee (Made in USA)
Part Number: 37 (380-37)
Condition: New
Price: 🇨🇦 $6.67 (Plus applicable taxes)
✅  14 In Stock!
☑️  We should be able to order more.
Quantity:
Scales/Gauges: HO / H0 (1:87)
Features:
Knuckle Couplers
Description:

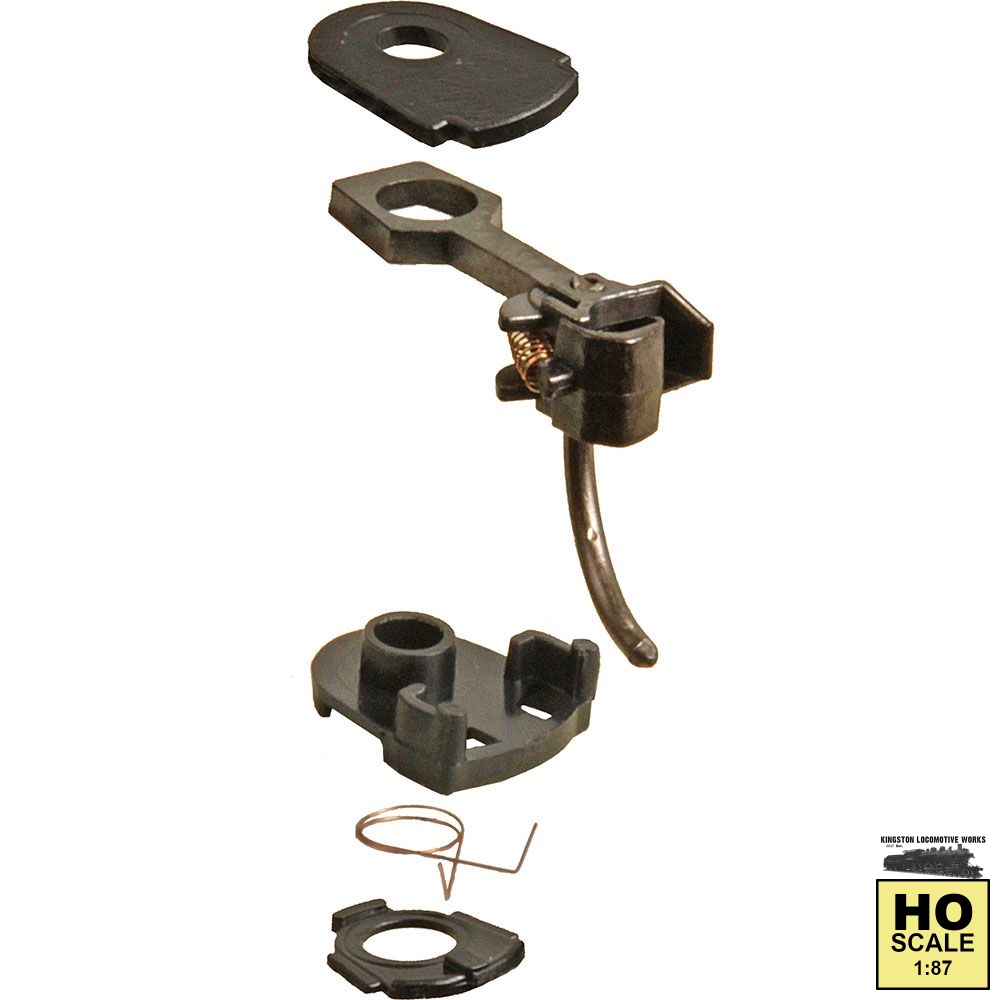

This industry leading coupler features plastic standard coupler with metal knuckle, and #621 torsion centering spring and comes complete with #233 insulated draft gearbox and lid. The #37 Magne-Matic® Plastic Coupler is designed mostly for body mounting with limited space either above or below the mounting platform, with or without Draft Gear Box Lid and with Draft Gearbox Lid either on top or bottom.

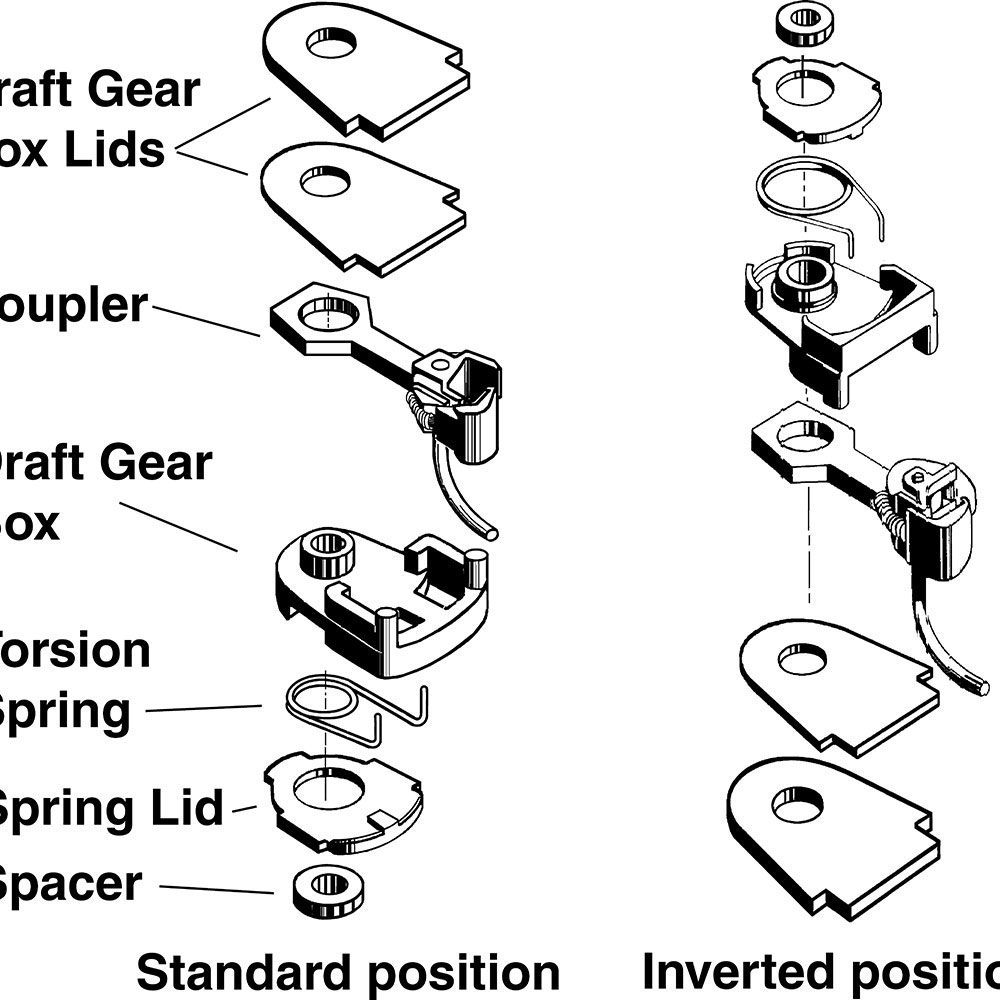

Note: The 30-Series Torsion Spring can be mounted either below or above the coupler shank, but must always be mounted between the Coupler Spring Lid and Draft Gearbox.

The #147 Whisker® Metal Coupler mounted in a #252 Snap-together Gearbox is equivalent to the #37 Coupler. The Whisker® Coupler mounted in a #252 Snap-together Gear box makes for simple and easy assembly.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.


Package Includes:

(2) Pair #37 Plastic Shank Couplers - Medium Underset Shank
(2) Pair #621 Torsion Centering Spring
(2) Pair #233 Gearboxes & Lids
(2) Pair #210 Washers
(2) Pair #256 - 2-56 Screws
(2) #622 Knuckle Springs


#37 Plastic Coupler Features:
Material - Metal Knuckle, Plastic Coupler Shank
Shank Length - Medium (9/32") (center hole to back of coupler head)
Coupler Offset - Underset
Knuckle Spring - #622
Centering System - Standard Shank
Centering Spring - #621 Torsion Centering Spring
Head - Standard Head
Works With - #233 draft gearboxes

#233 Plastic Draft Gearboxes & Lids Features:
Material - Insulated Plastic
Dimensions - 3/8"L x 5/16"W x 9/64"H
Works With - NO.5®, #58, 20-Series Couplers

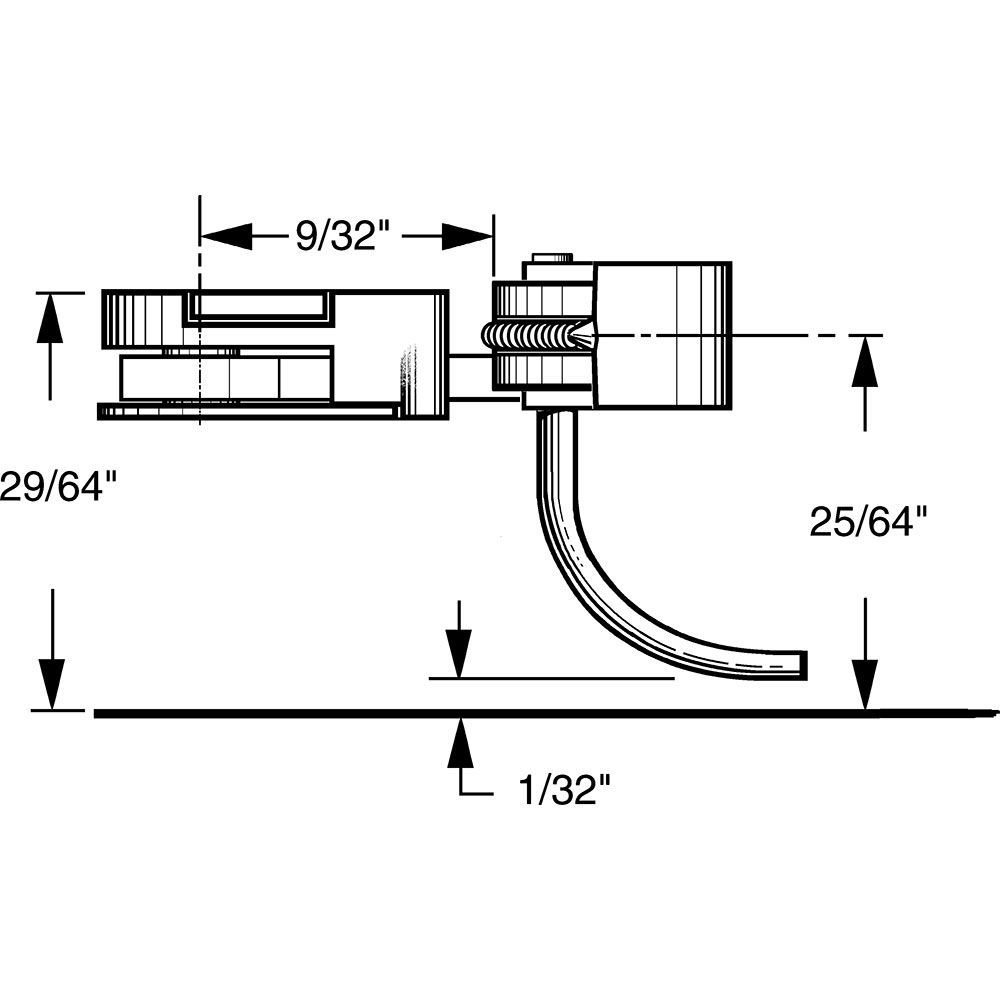

#37 in a #233 gearbox on top. Mounting Specifications:
Mounting Height - 29/64"
Centerline - 25/64"
Trip Pin Height - 1/32"
Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)

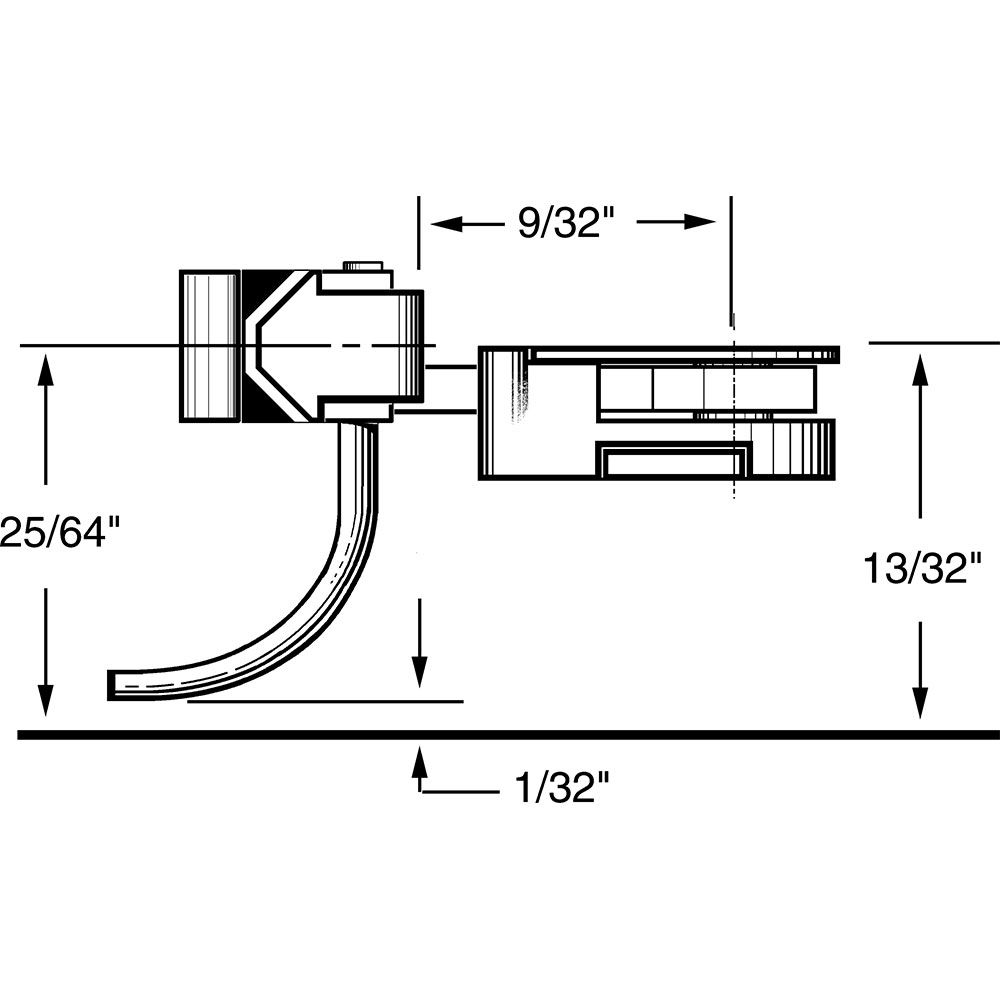

#37 in a #233 gearbox on bottom. Mounting Specifications:
Mounting Height - 13/32"
Centerline - 25/64"
Trip Pin Height - 1/32"
Center Hole - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
UPC: 765484000372
