Product Details
DCC Concepts LML-MSL HO/OO 4mm Scale Modern Post Lamps - Grey (3 pack)
Manufacturer: DCC Concepts
Part Number: LML-MSL (LMLMSL)
Condition: New
Our Price: 🇨đŸ‡Ļ $30.03 (Plus applicable taxes)
Clearance: 🇨đŸ‡Ļ $21.99 (In-stock only, while supplies last)
MSRP: đŸ‡Ŧ🇧 £20.79 (🇨đŸ‡Ļ $36.09) - Save $14.10 / 39%!
✅  5 in stock and available to purchase!
☑ī¸  We should be able to order more from the manufacturer.
Quantity:
Scales/Gauges: HO / H0 (1:87), OO / 00 (1:76)
Description:

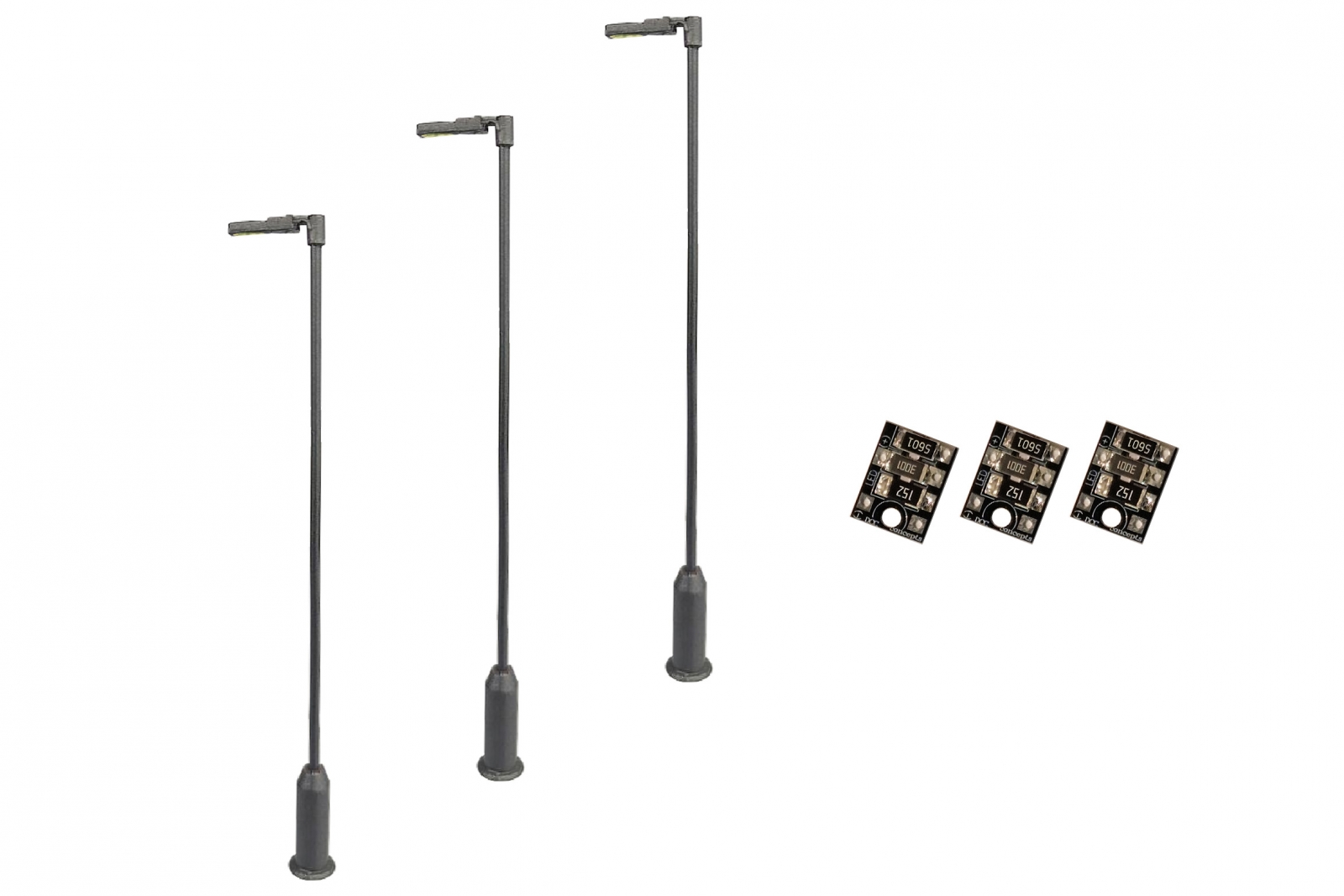

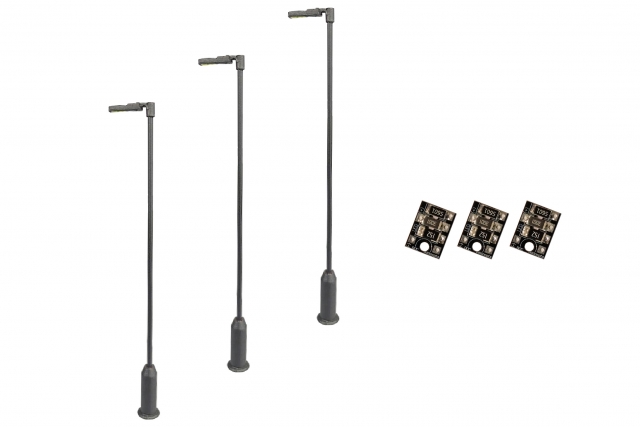

Super-high quality 4mm scale LED modern post lamps (3 pack).
These lamps are found anywhere lighting is needed. Height is easily to adjust via a sliding base. They are grey to match the usual galvanised finish, but can easily be repainted.

Pack Contents
3x 4mm scale street/platform lamps with 500mm connection wires
3x Resistor boards – suitable for connection to regulated DC power 6-12V

Installation Advice
Drill the mounting hole using a 2mm drill. Carefully thread the fine wires into the hole, then insert the lamp mounting tube.
If using the extension base, use a 5.5mm drill and insert it to your chosen depth or pre-cut it to length and pre-drill to 2mm to allow you to use the added 2mm tube extension that is provided in the pack.
The longer of the 2 wires is the + lead. Connect your power supply to the resistor board and then try the lamp with each of the resistor values to select your preferred light level.
Alternatively, if a different level is wanted, you may also use any other value 1/4 watt resistor as long as it is larger than 1k Ohms.
Connect several lamps (up to 6) to one resistor board if you wish.
You can also connect Legacy Skyline Lamps to an Alpha Mimic DCC control board if you wish. Follow the instructions supplied with the Alpha Mimic Building Lighting for this type of installation.
