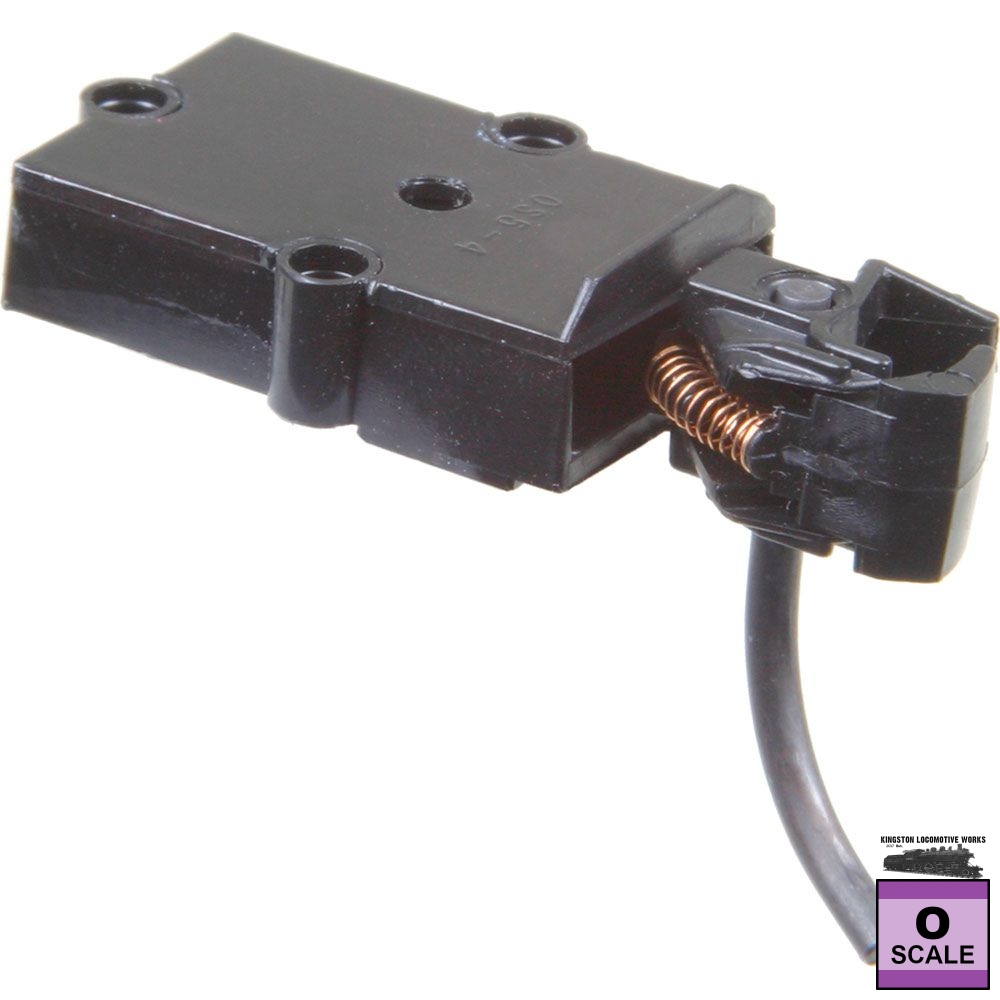

Kadee 804 O Scale Medium Centerset Plastic Couplers with Plastic Gearboxes - Black (1 Pair) Manufacturer: Kadee (Made in USA)
Part Number: 804 (380-804)
Condition: New
Expected Price: đ¨đĻ $6.87 (Plus applicable taxes) MSRP: đēđ¸ $5.99 (đ¨đĻ $8.49) - Save 19%! âī¸ This item is not currently in stock, but should be available to order.
Scales/Gauges: O (US) (1:48)
Features:
Knuckle Couplers Description:

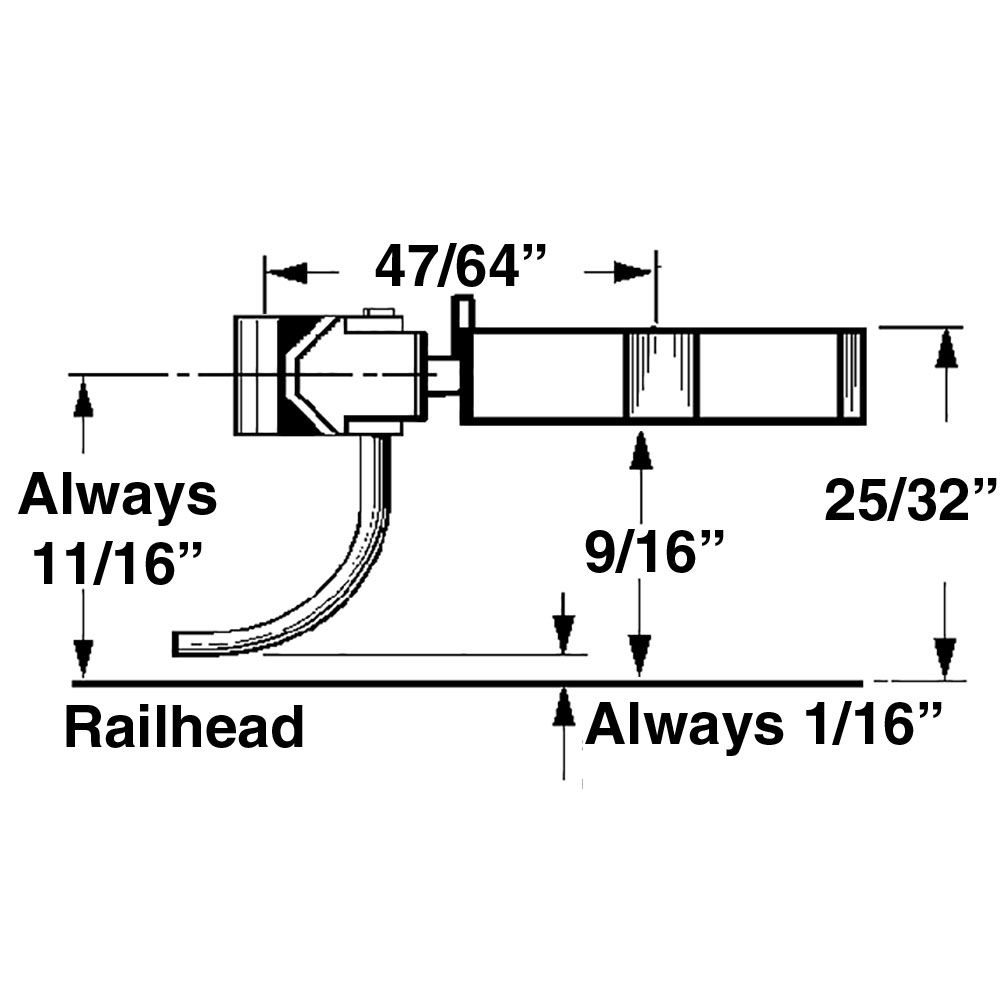

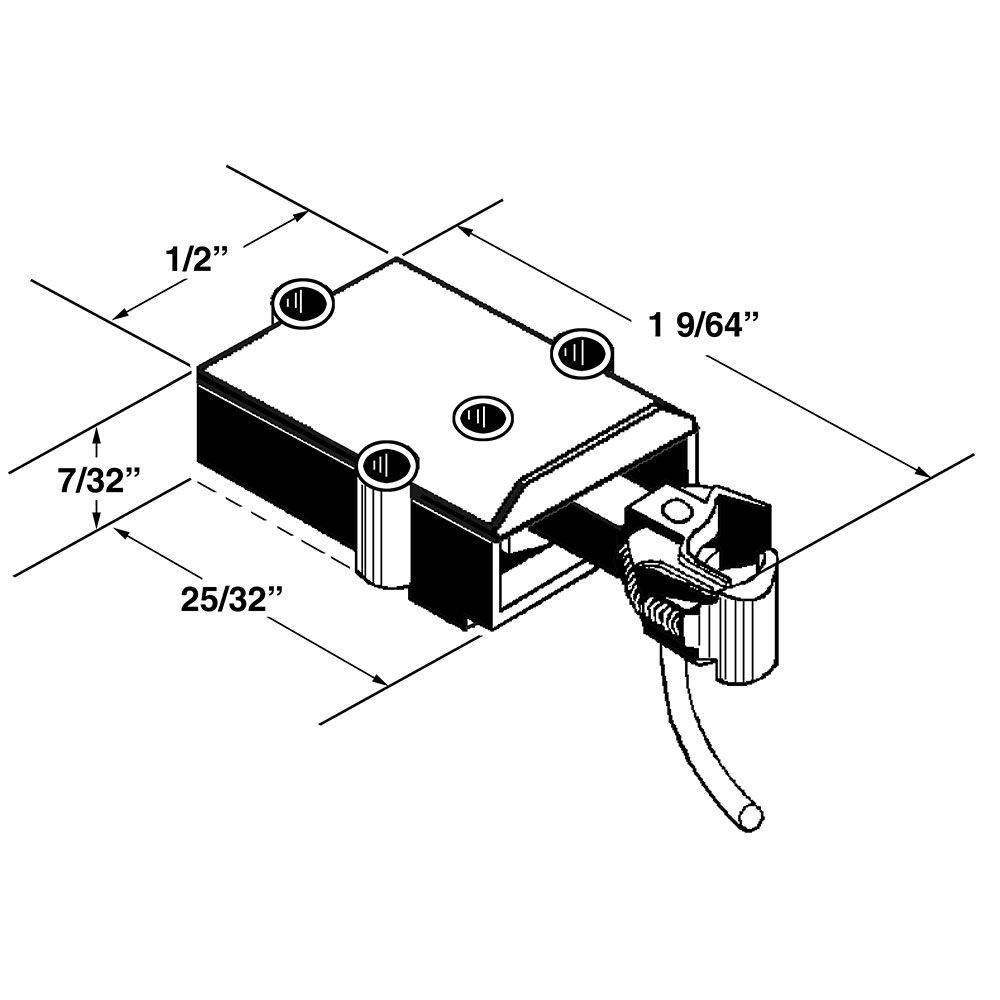

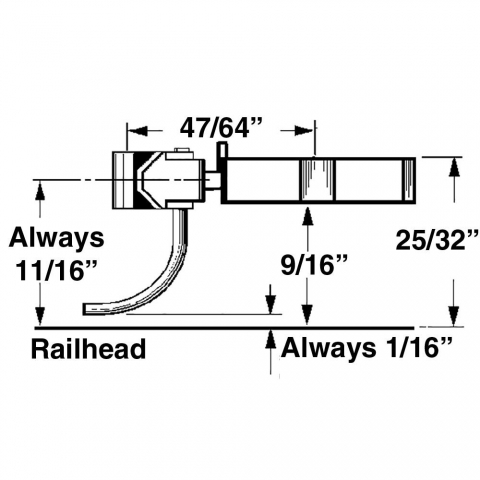

Package Includes: (2) Each #804 Original Style Plastic Couplers - Medium Centerset Shank (2) Each #817 Plastic Gearboxes & lids (3) Each #850 O Scale Centering Springs #804 Plastic Coupler Features: Material - Plastic Shank Length - Medium (47/64") (Knuckle pulling face to center hole of Draft Gearbox) Coupler Offset - Centerset Centering Spring - #850 O Scale Centering Springs Knuckle Spring - #845 O Scale Knuckle Springs Head - Original Style Head Works In Place of - #740, #745, #800, #801, #805, & #816 O Scale Medium Centerset Shank Couplers Works With - #817, #818, #819 Draft Gearboxes #817 Plastic Draft Gearboxes & Lids Features: Material - Plastic Dimensions - 25/32"L x 1/2"W x 7/32"H Works With - #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers Mounting Specifications: Mounting Height - 25/32" Centerline - 1 1/16" Trip Pin Height - 1/16" Mounting Holes - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) UPC: 765484008040
![]() ![]() ![]() |
