Product Details

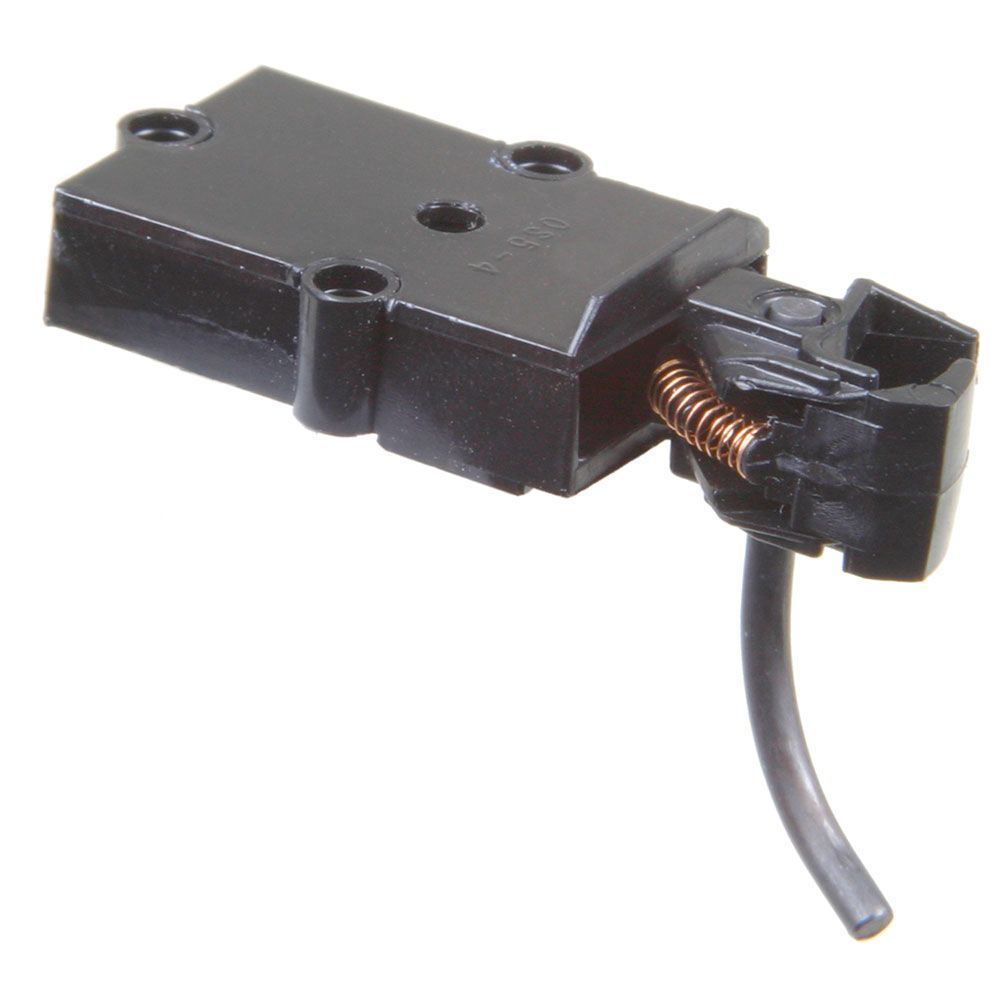

Kadee 803 On3 Scale Plastic Couplers & Gearboxes - Black (2 Pair)
Manufacturer: Kadee (Made in USA)
Part Number: 803 (380-803)
Condition: New
Expected Price: 🇨đŸ‡Ļ $9.17 (Plus applicable taxes)
MSRP: đŸ‡ē🇸 $9.59 (🇨đŸ‡Ļ $12.99) - Save 29%!
☑ī¸  This item is not currently in stock, but should be available to order.
Quantity:
Scales/Gauges: On3 (1:48)
Features:
Knuckle Couplers
Description:
Package Includes:

(4) Each #803 Plastic Couplers - Black
(4) Each #803 Plastic Gearboxes & lids - Black
(6) Each #846 On3 Scale Centering Springs
(2) Extra #847 On3 Scale Knuckle Springs
(8) Each 0-48 x 3/8 Screws


#803 Plastic Coupler Features:
Material - Plastic
Shank Length - (17/64") (Back of head to center hole of Draft Gearbox)
Coupler Offset - Centerset
Centering Spring - #846 On3 Scale Centering Springs
Knuckle Spring - #847 On3 Scale Knuckle Springs
Works In Place of - #807 Couplers
Works With - On3 Scale Draft Gearboxes

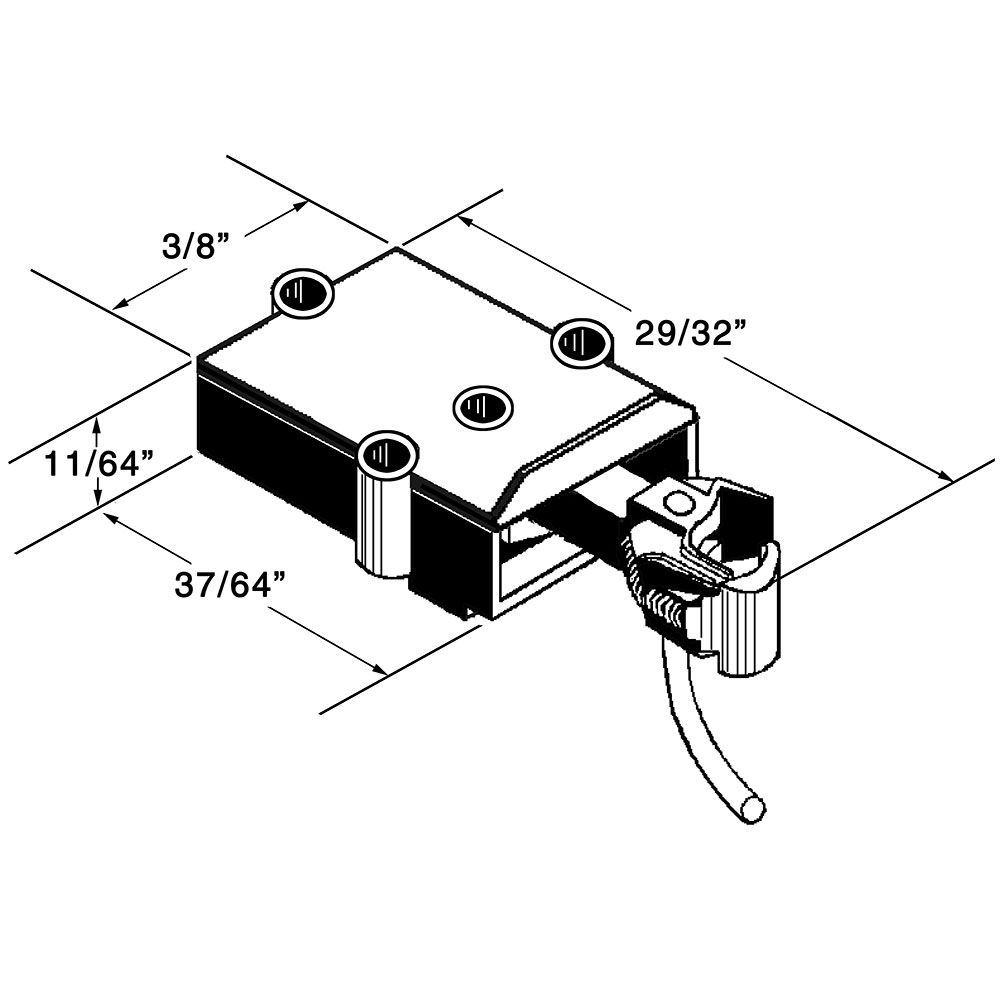

#803 Plastic Draft Gearboxes & Lids Features:
Material - Plastic
Dimensions - 37/64"L x 3/8"W x 11/64"H
Works With - #808 Couplers

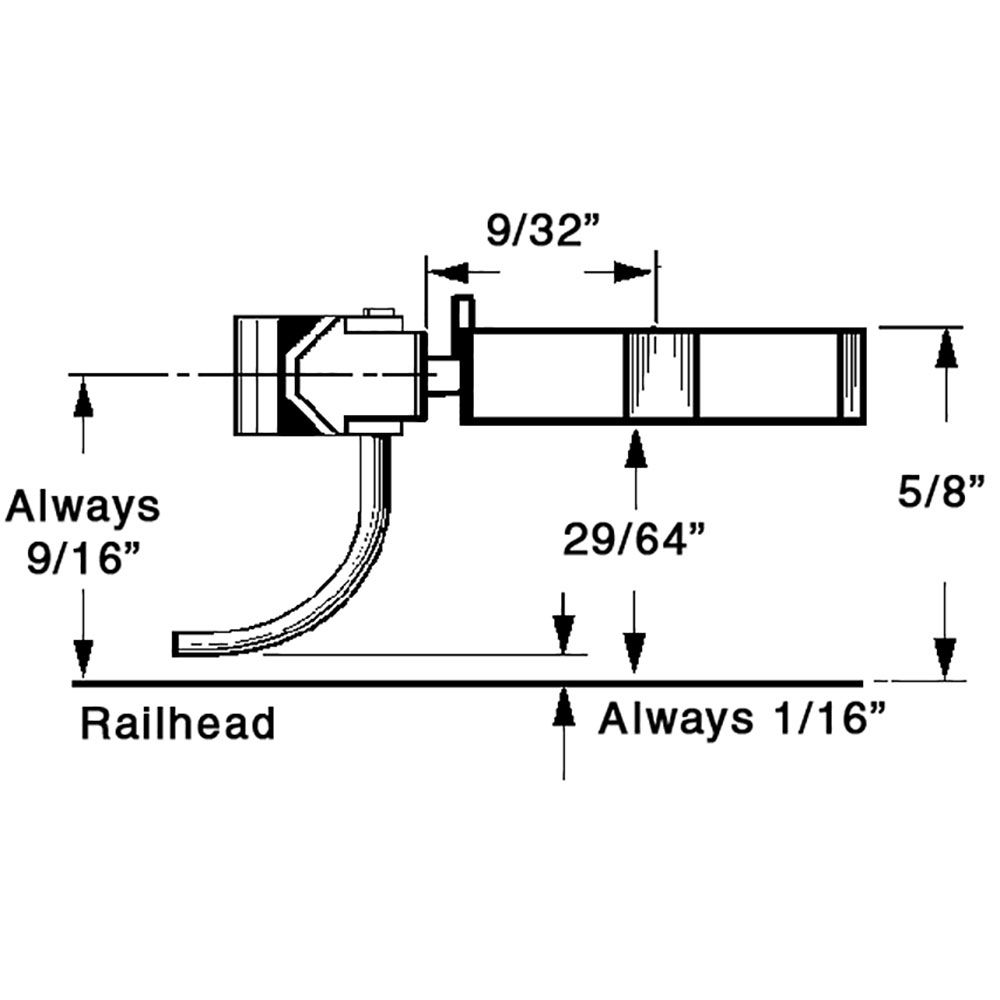

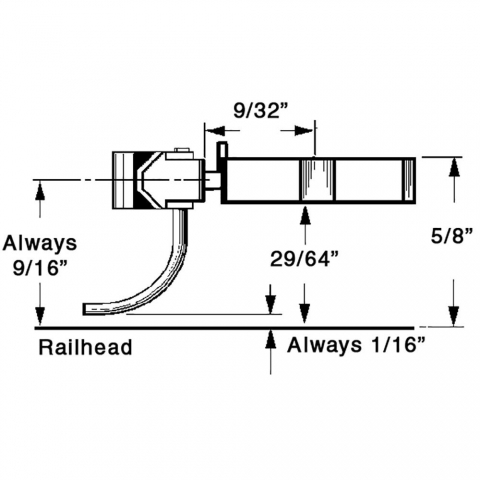

Mounting Specifications:
Mounting Height - 5/8"
Centerline - 9/16"
Trip Pin Height - 1/16"
Mounting Holes - 0-48 or 0-80 screws are the most commonly used screws. (Screw length will vary)
UPC: 765484008033
