Product Details

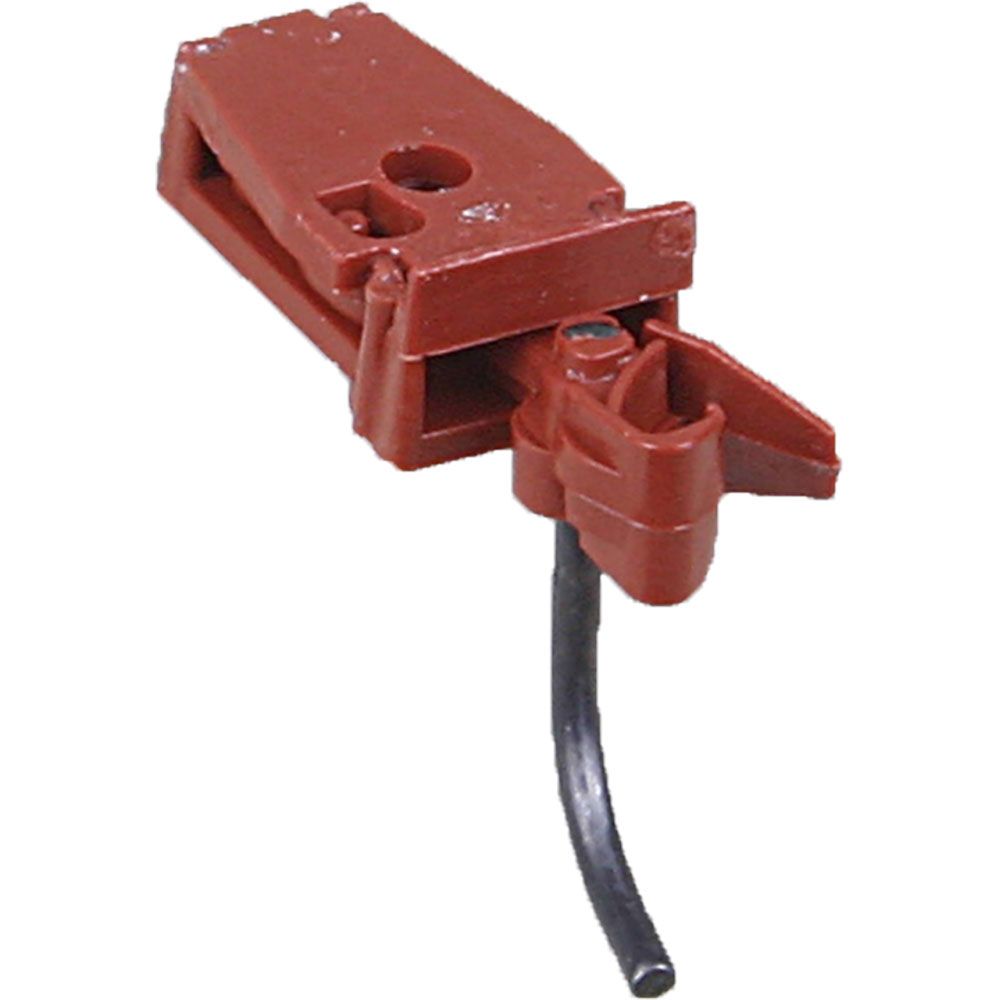

Kadee 713 HOn3 Scale Split Shank Plastic Couplers - Rust (2 Pair)
Manufacturer: Kadee (Made in USA)
Part Number: 713 (380-713)
Condition: New
Expected Price: 🇨đŸ‡Ļ $6.98 (Plus applicable taxes)
â˜‘ī¸  This item is not currently in stock, but should be available to order.
Quantity:
Scales/Gauges: HOn3 (1:87)
Features:
Knuckle Couplers
Description:

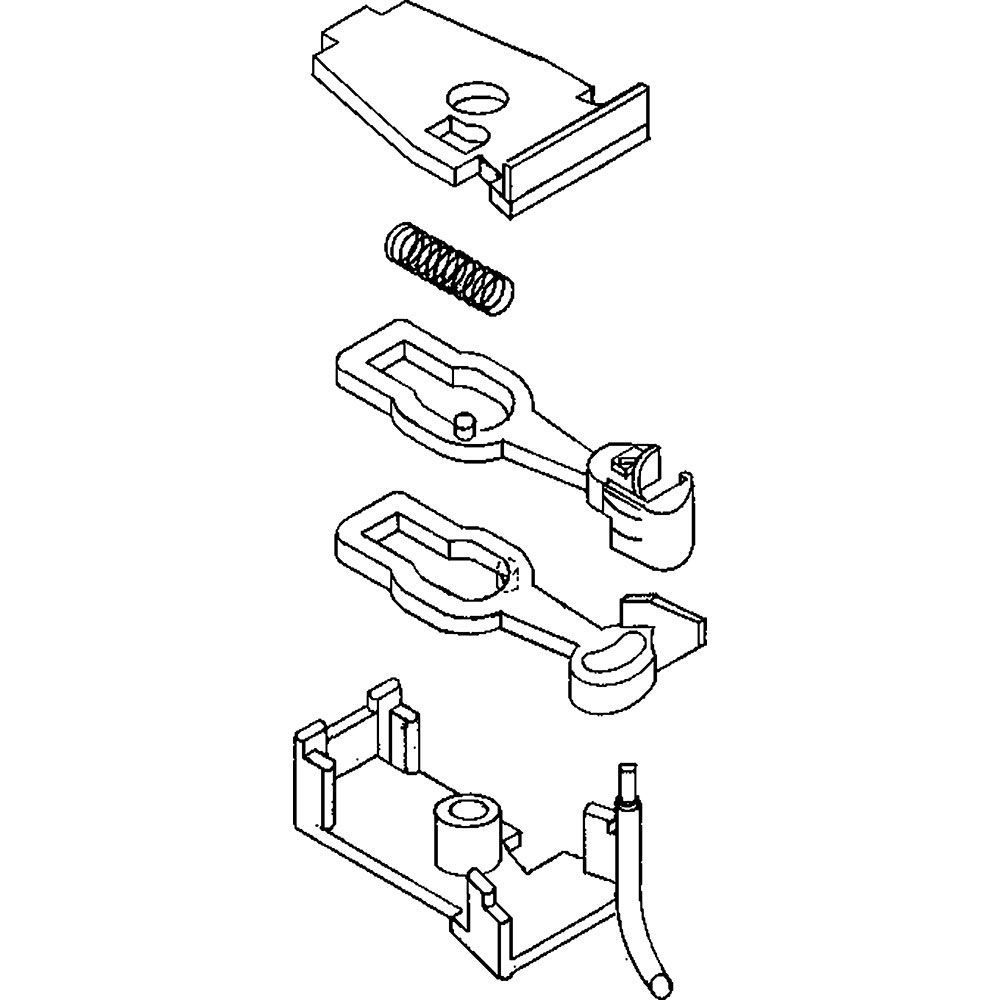

Package Includes:

(2) Pair Unassembled Split Shank Couplers
(2) Pair Unassembled Gearboxes & Lids
(5) Each #713 Trip Pins
(6) Each #636 Centering Springs
(4) Each #402 Self Tapping Screws 0-48 x 1/4"

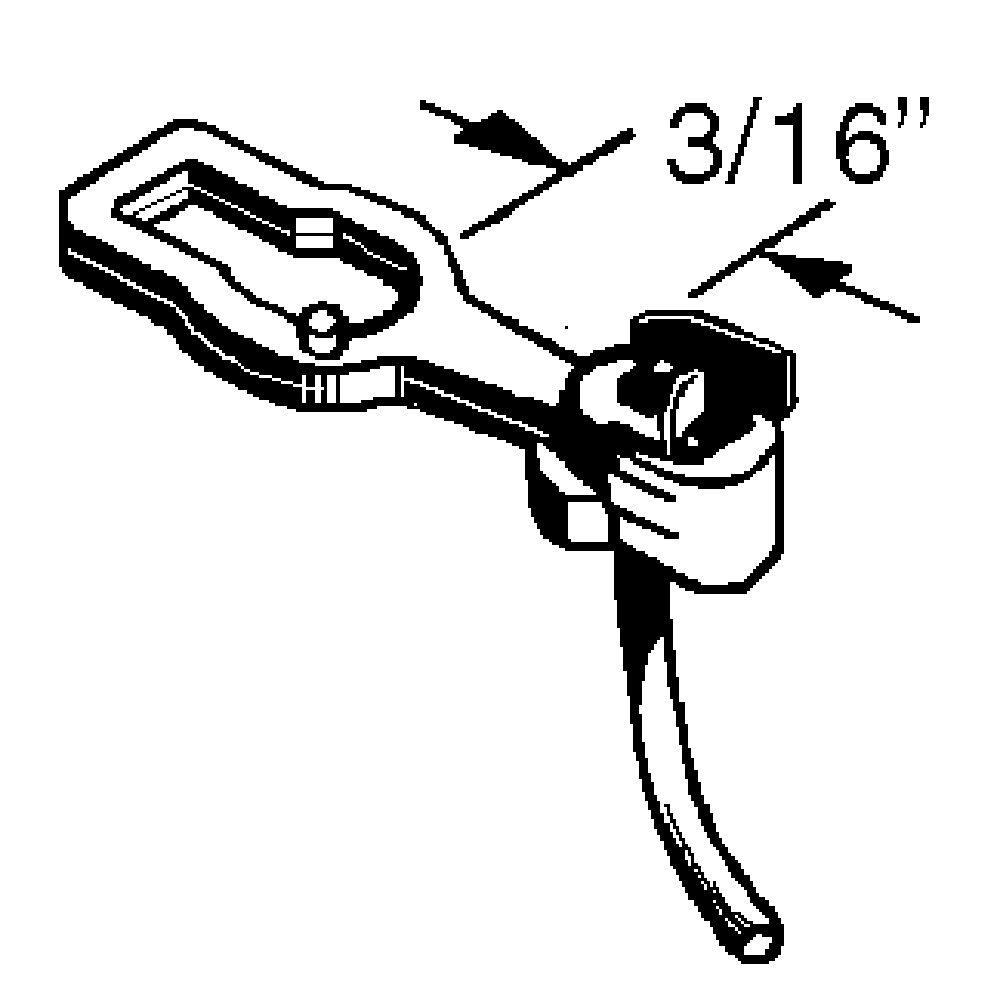

#713 Split Shank Coupler Features:
Material - Plastic
Shank Length - (3/16")
Coupler Offset - Centerset

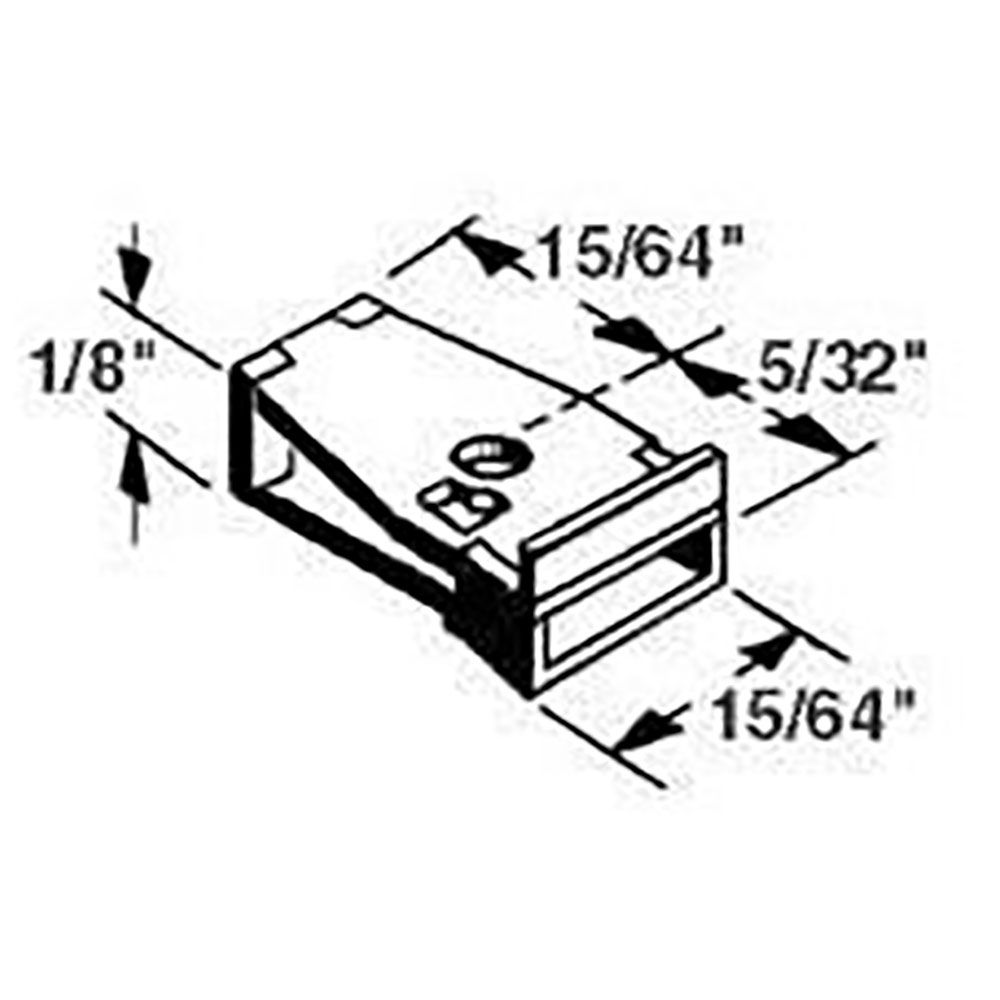

#713 Gearbox Features:
Material - Insulated Plastic
Dimensions - 27/64"L x 15/64"W x 1/8"H

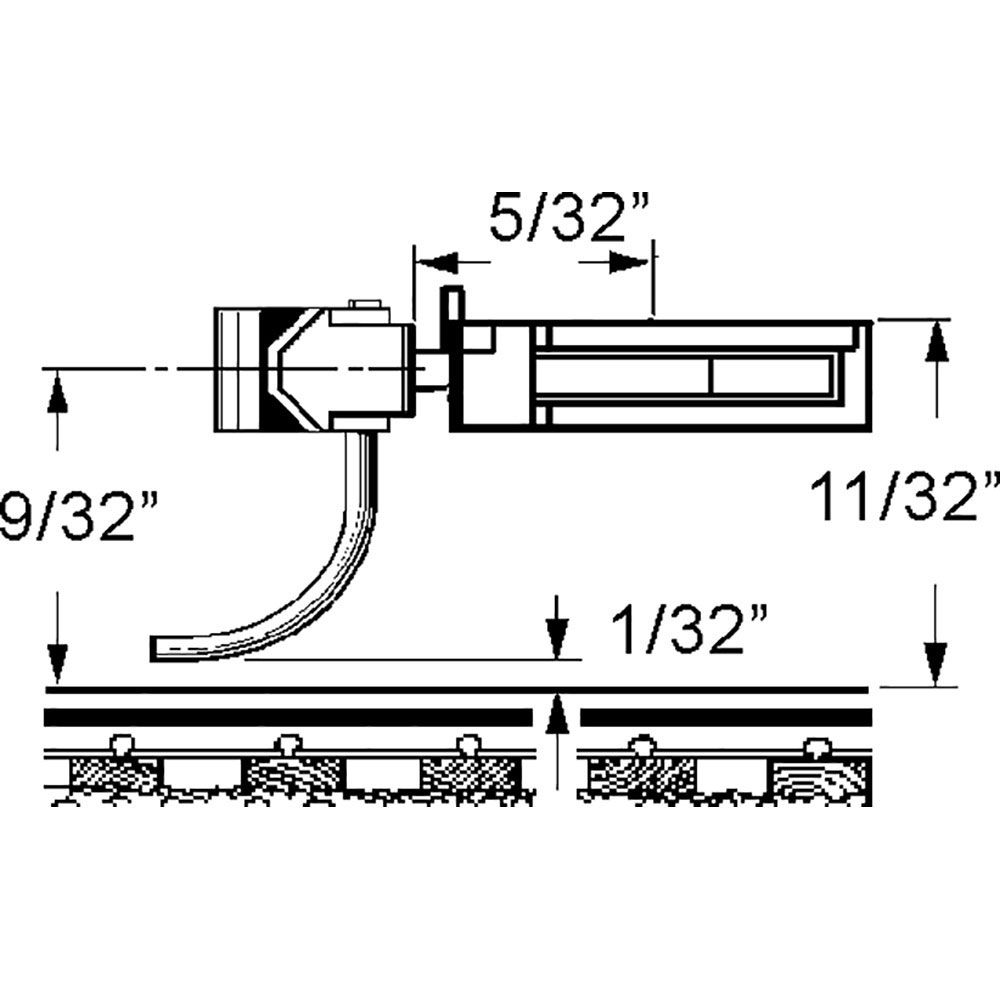

Mounting Specifications:
Mounting Height - 11/32"
Centerline - 9/32"
Trip Pin Height - 1/32"
Center Hole - 0-48 Screw. (Screw length will vary) no less then 1/4" length.
UPC: 765484007135
