Kadee 742 O Type E Medium Overset Metal Couplers with Plastic Gearboxes (2 Pair) Manufacturer: Kadee (Made in USA)
Part Number: 742 (380-742)
Condition: New
Our Price: 🇨🇦 $15.30 (Plus applicable taxes) MSRP: 🇺🇸 $12.59 (🇨🇦 $17.83) - Save 14%! ✅ 4 in stock and available to purchase! ☑️ We should be able to order more from the manufacturer. ☑️ 10 available at our distributors as of last update.
Scales/Gauges: O (US) (1:48)
Description:

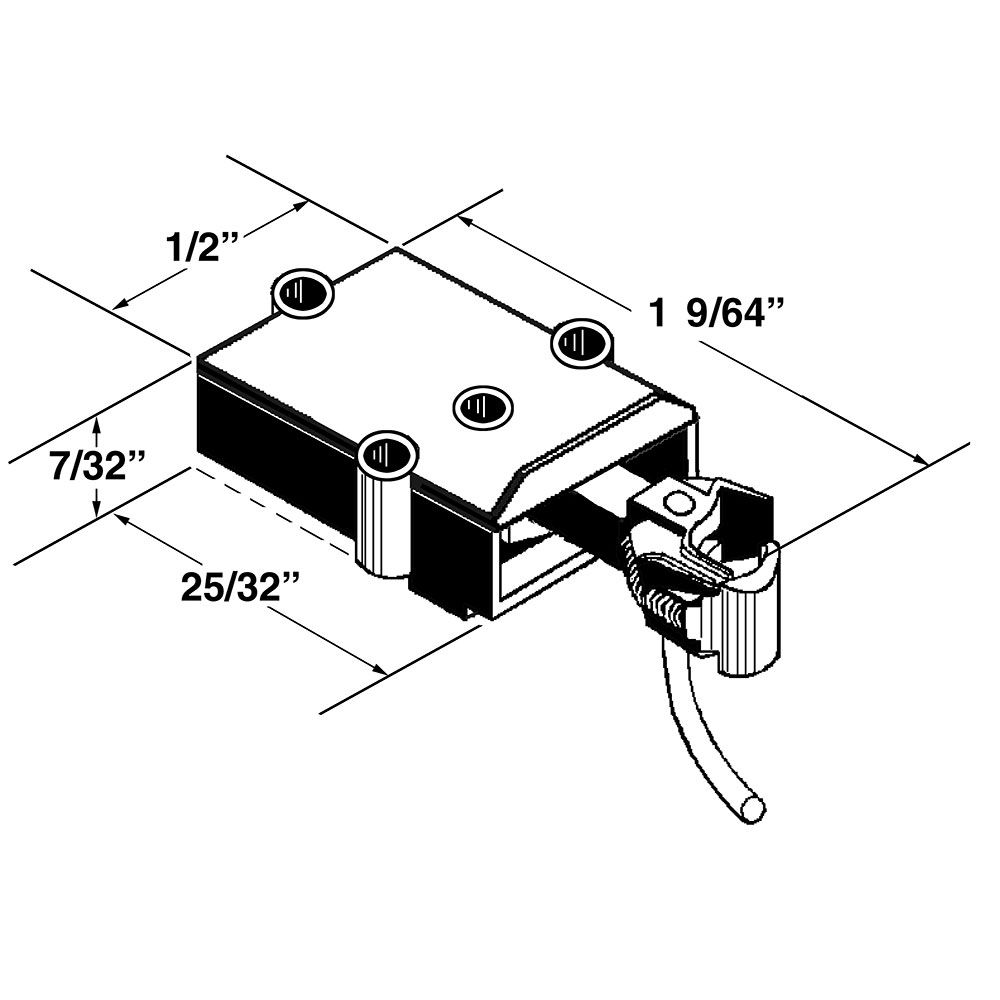

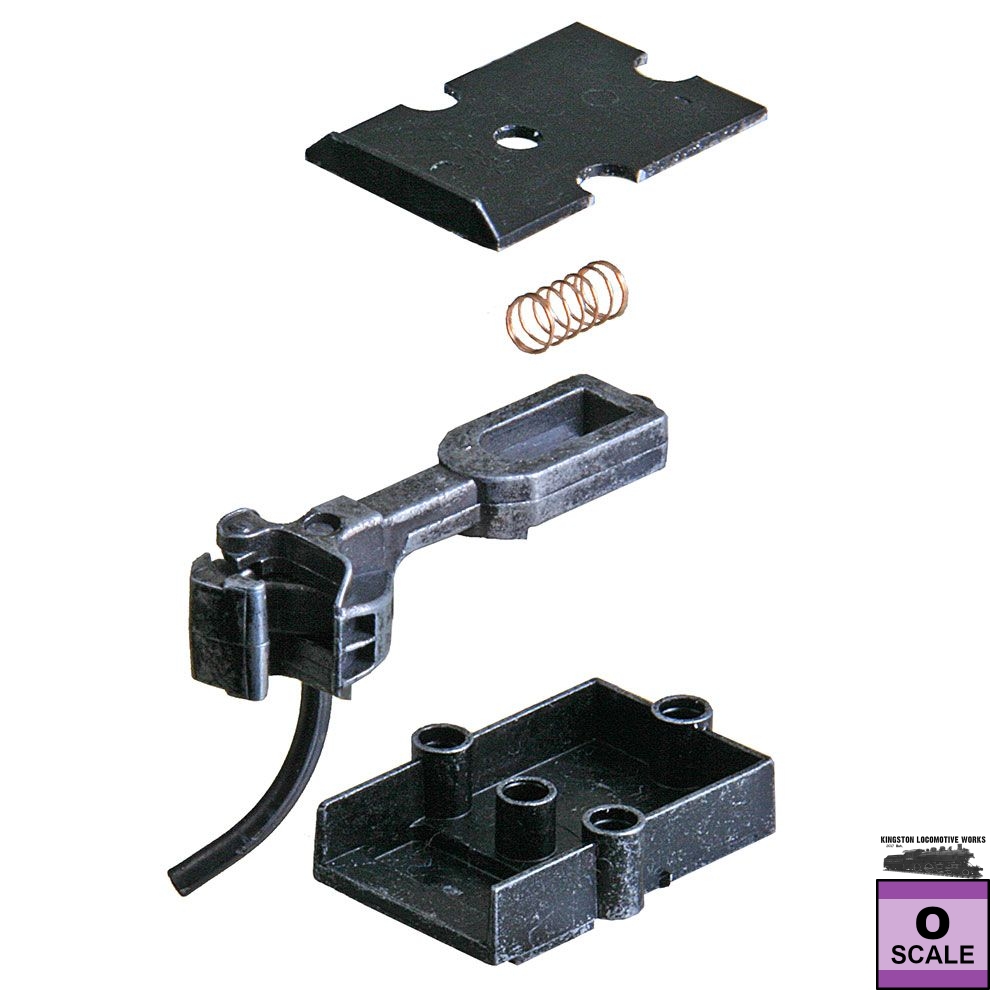

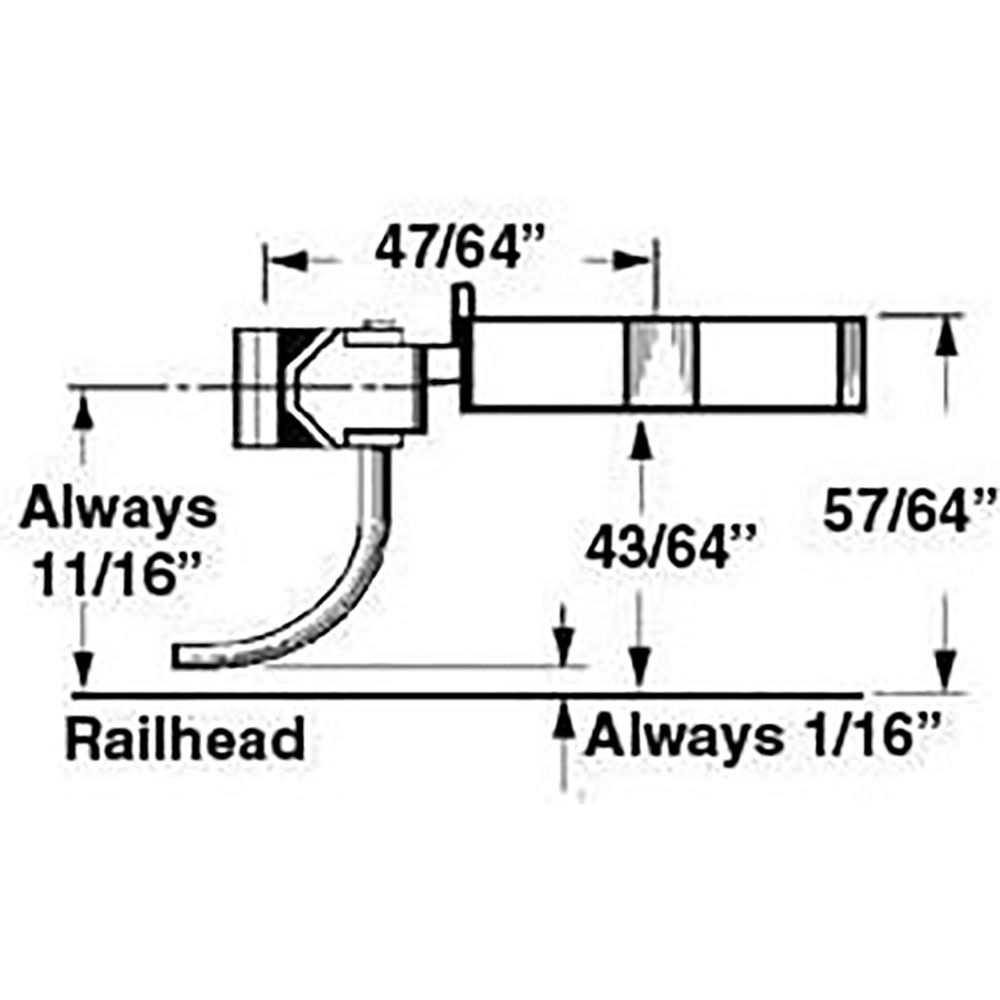

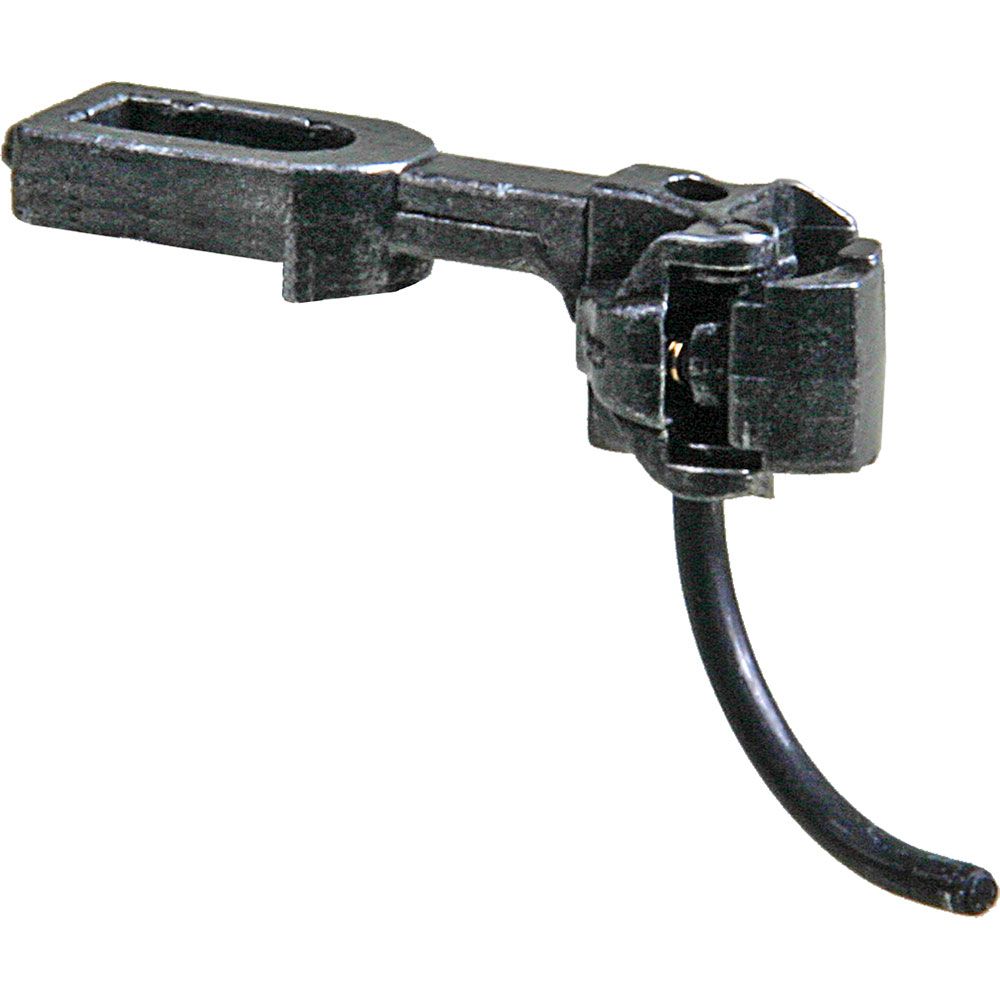

New Generation AAR Type "E" "Prototype" Head: Simple Drop in Design Trouble Free Operation Hidden Knuckle Spring AAR Type "E" Coupler Style Compatible with Kadee® O-Scale Couplers World-Renowned Quality & Performance They just Last & Last & Last... Package Includes: (4) Each #742 Type "E" "Prototype" Metal Couplers - Medium Overset Shank (4) Each #817 Plastic Gearboxes & lids (5) Each #850 O Scale Centering Springs #742 Metal Coupler Features: Material - Metal Shank Length - Medium (47/64") (Knuckle pulling face to center hole of Draft Gearbox) Coupler Offset - Overset Centering Spring - #850 O Scale Centering Springs Head - New Generation AAR Type "E" "Prototype" Head Works With - #817, #818, #819 Draft Gearboxes #817 Plastic Draft Gearboxes & Lids Features: Material - Plastic Dimensions - 25/32"L x 1/2"W x 7/32"H Works With - #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers Mounting Specifications: Mounting Height - 57/64" Centerline - 1 1/16" Trip Pin Height - 1/16" Mounting Holes - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) UPC: 765484007425
![]() ![]() ![]() |
