1-Scale

AAR Type "E" Coupler
Simple Drop in Design
Hidden Knuckle Spring
Trouble Free Operation
Compatible with All Kadee® 1-Scale Couplers
World-Renowned Quality & Performance
They just Last & Last & Last...
Patent number 7,810,660 B1



Package Includes:

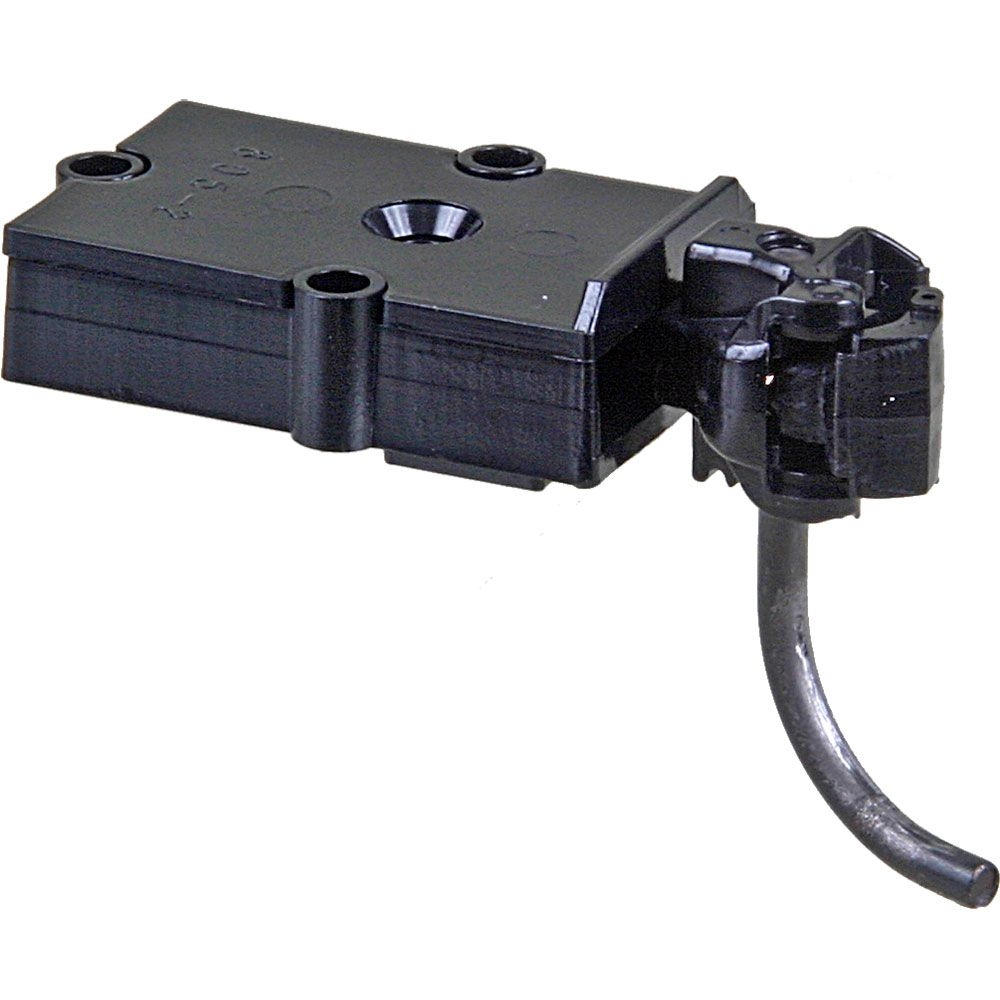

(2) Each #1900R Type New Generation AAR Type "E" - Straight Centerset Shank
(2) Each #1920R Body Mount Gearbox & lids
(3) Each #879 Centering Springs
(4) Each #4 x 3/4" Screws


#1900R Plastic Coupler Features:
Material - Plastic
Shank Length - (9/16") (Back of the Coupler Head to center hole of Draft Gearbox)
Coupler Offset - Centerset
Centering Spring - #879 #1 Scale Centering Springs
Head - New Generation AAR Type "E"
Works In Place of - #1906, #1906R, & #820 1 Scale Straight Centerset Couplers
Works With - #1920, #1920R Draft Gearboxes

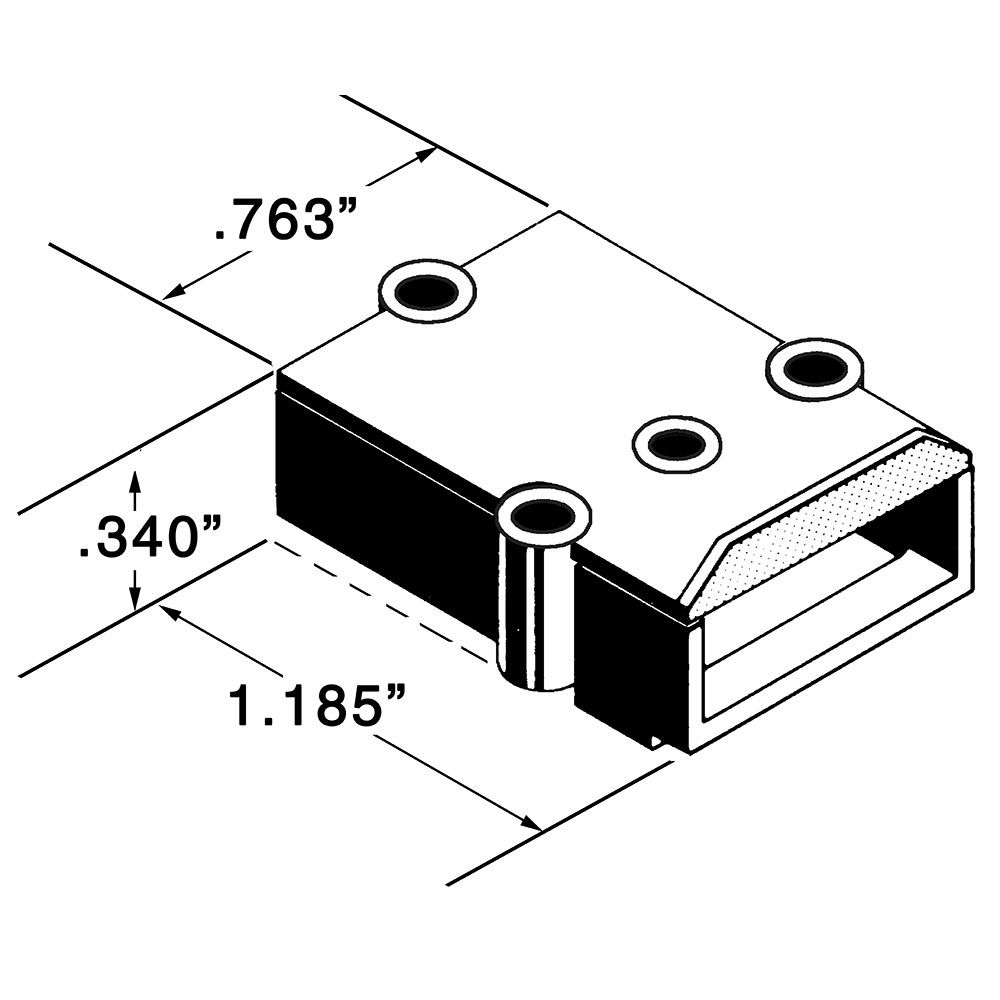

#1920 Plastic Draft Gearboxes & Lids Features:
Material - Plastic
Dimensions - 1 1/4"L x 7/8"W x 5/16"H
Works With - #820, #1906, #1906R, & #920 Couplers

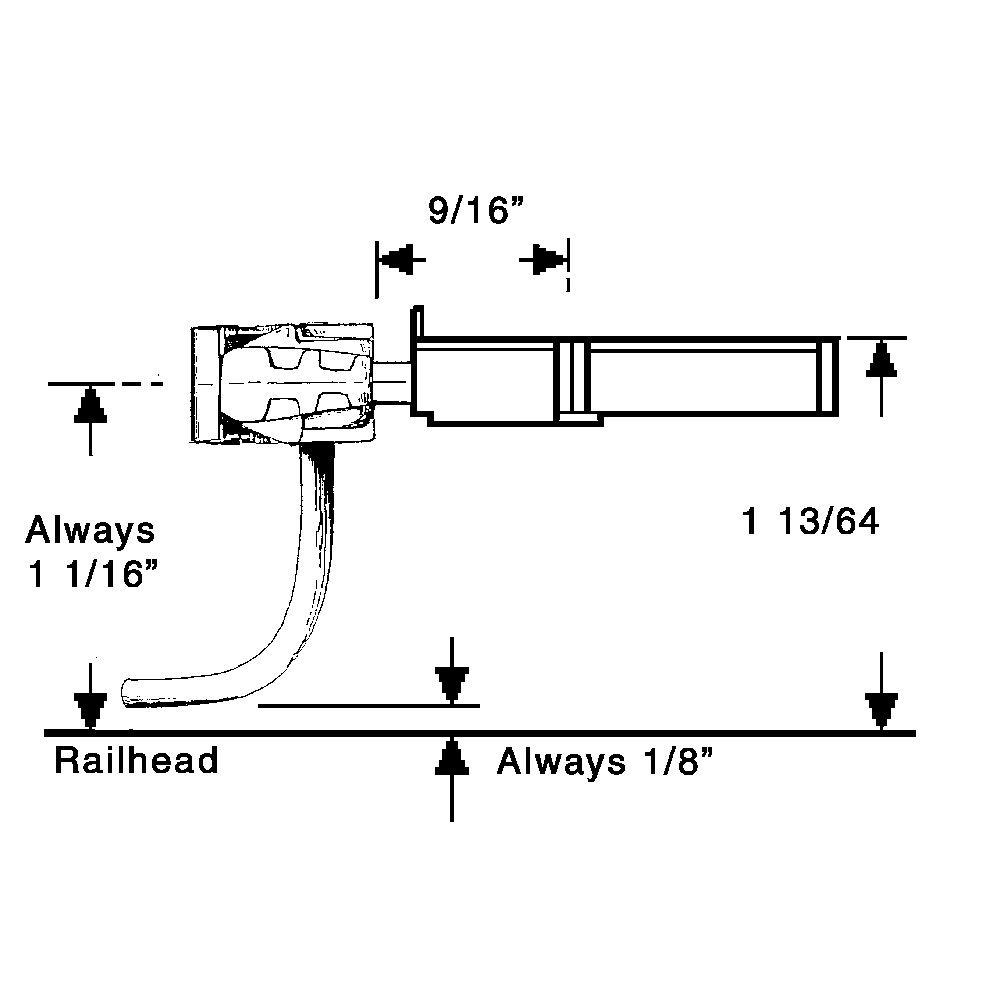

Mounting Specifications:
Mounting Height - 1 13/64"
Centerline - 1 1/16"
Trip Pin Height - 1/8"
Mounting Holes - #4 Screws are the most commonly used. (Screw length will vary)
