 Product Details

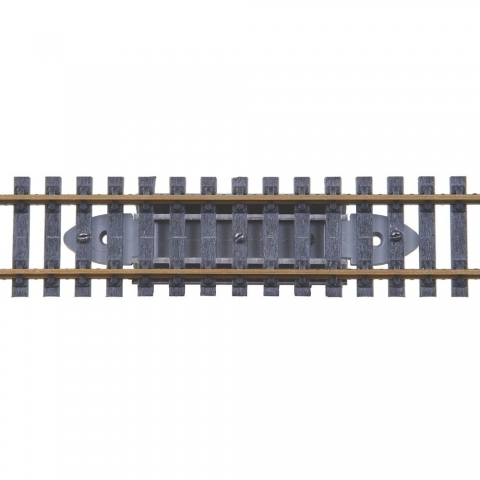

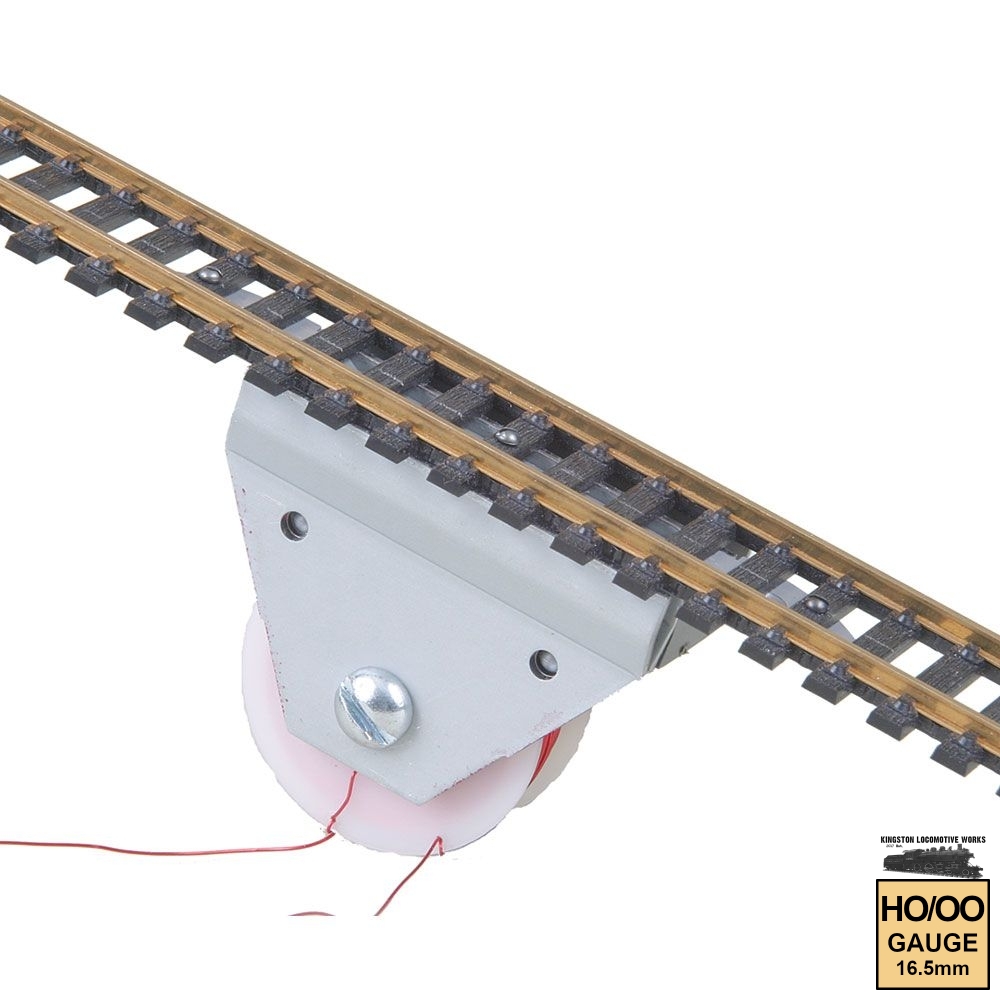

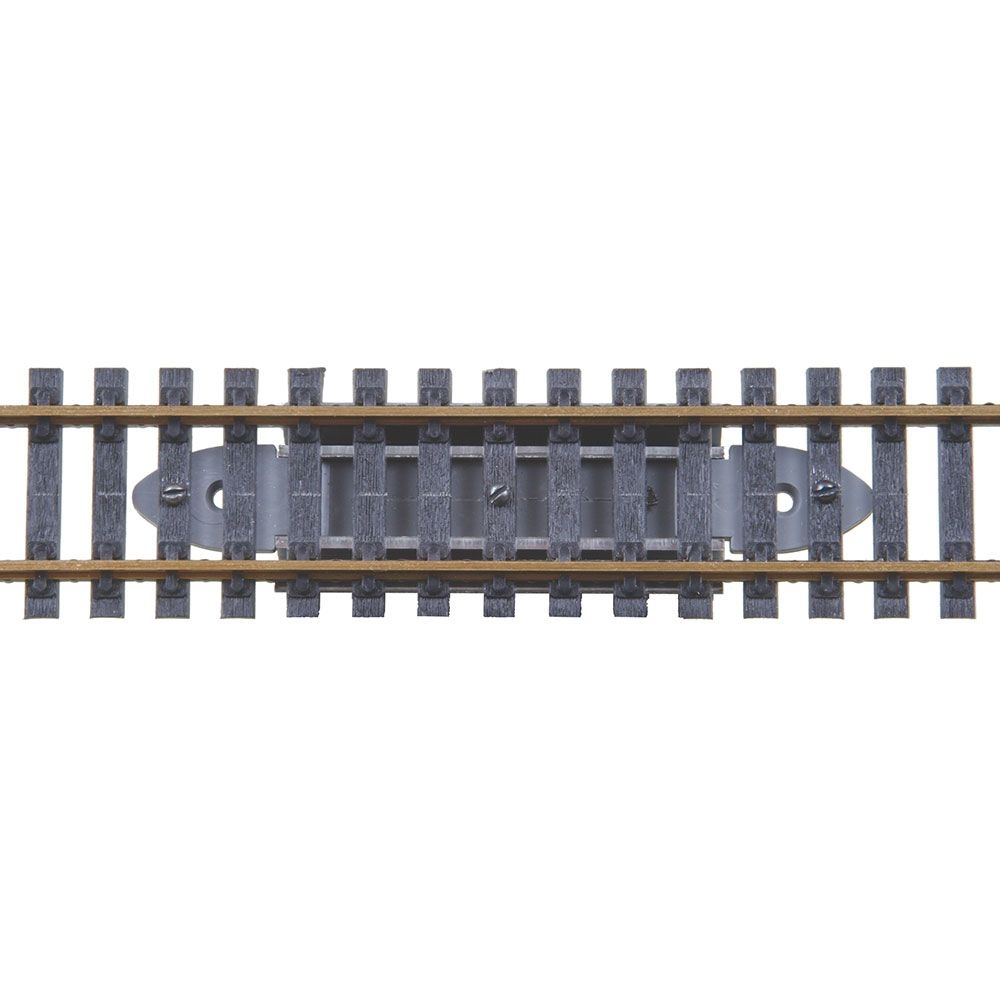

    Kadee 309 HO Scale Under-the-Ties Delayed-Action Electric Uncoupler Kit Manufacturer: Kadee (Made in USA)
Part Number: 309 (380-309)
Condition: New
Our Price: 🇨🇦 $32.78 (Plus applicable taxes) MSRP: 🇺🇸 $26.39 (🇨🇦 $36.07) - Save 9%! ✅ 2 in stock and available to purchase! ☑️ We should be able to order more from the manufacturer. ☑️ 1 available at our distributors as of last update.
Scales/Gauges: HO/OO (16.5mm)
Description:

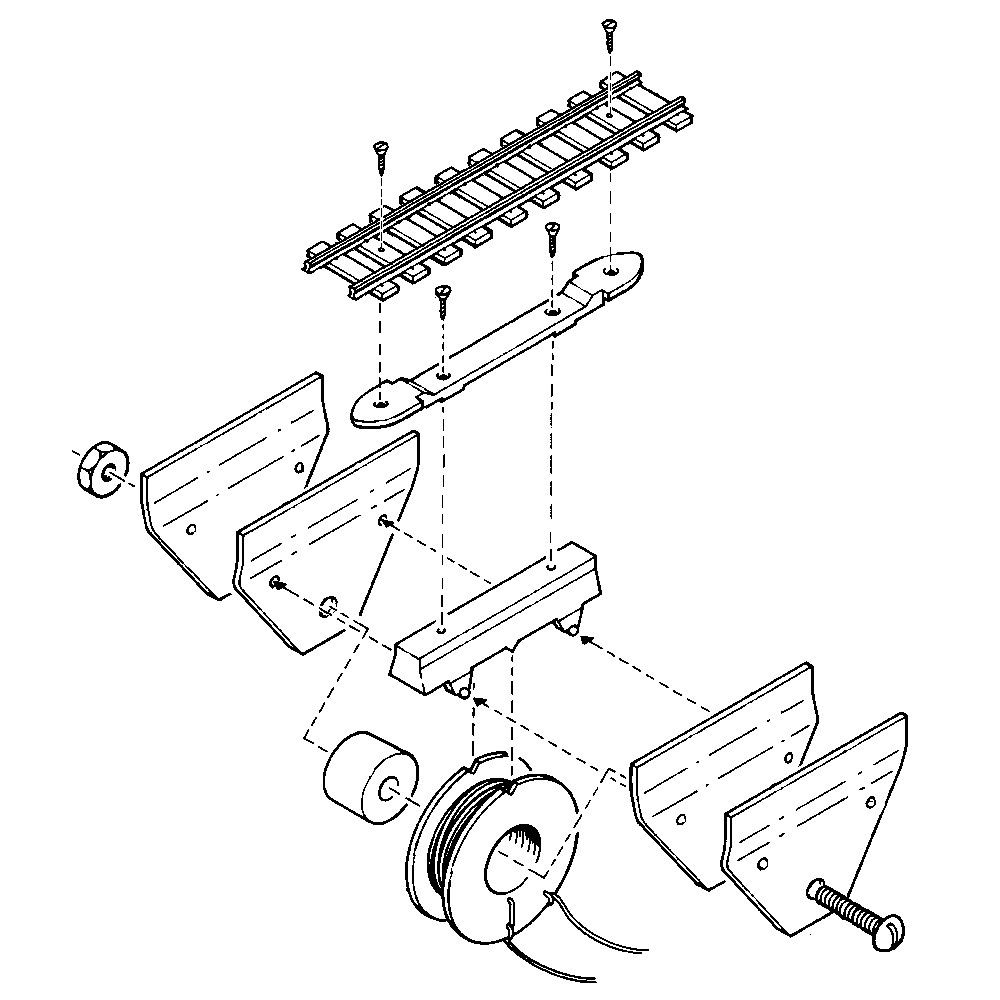

Kadee® #165 Red - Normally Open momentary contact push button switches are recommend. Fits any HO track. (Track Not Included) This package contained one HO Scale Magne-Electric electromagnetic, delayed action uncoupler kit, ready to assemble and install Under-the-Ties. It can be installed on any straight layout track, but especially on mainlines, were false uncoupling my occur. Operates: 16 volt DC. We recommend a 16 volt DC power source (at least 3 Amps) or 18 volt AC power source (at least 3 Amps) converted to DC with bridge rectifier. WARNING: Do not use the uncoupler continually. DO NOT activate the uncoupler for longer than 2 MINUTES at one time. This will avoid possible overheating which will damage the uncoupler. One per package Package Includes: (1 only) Coil (1 only) Steel core (4 only) Field plates (1 only) Field plate divider (1 only) Upper track mounting plate (1 only) 10-32 x 7/8" Bolt (1 only) 10-32 Nut (3 only) 2 x 3/8" flat head self-tapping screws (4 only) 0-48 x 1/4" screws (4 only) 0-48 x 3/8" screws (1 only) Bridge Rectifier (1 only) Capacitor UPC: 765484003090
|
