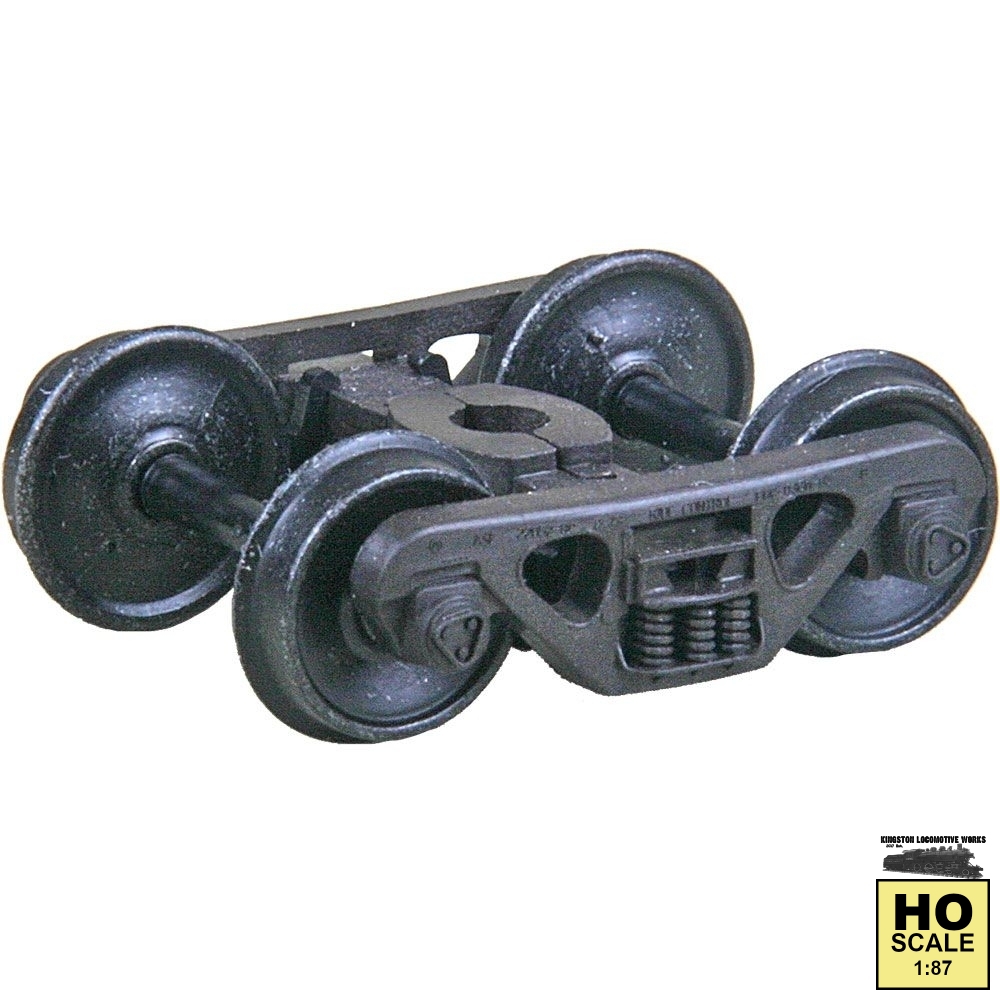

#569 A.S.F.® 100-Ton Roller Bearing Self Centering Trucks with 36" Smooth Back Wheels - HO Scale
"HGC" Two Piece Fully Equalized Trucks

The Self-Centering Action trucks self align themselves parallel with the car for easier placement on track.

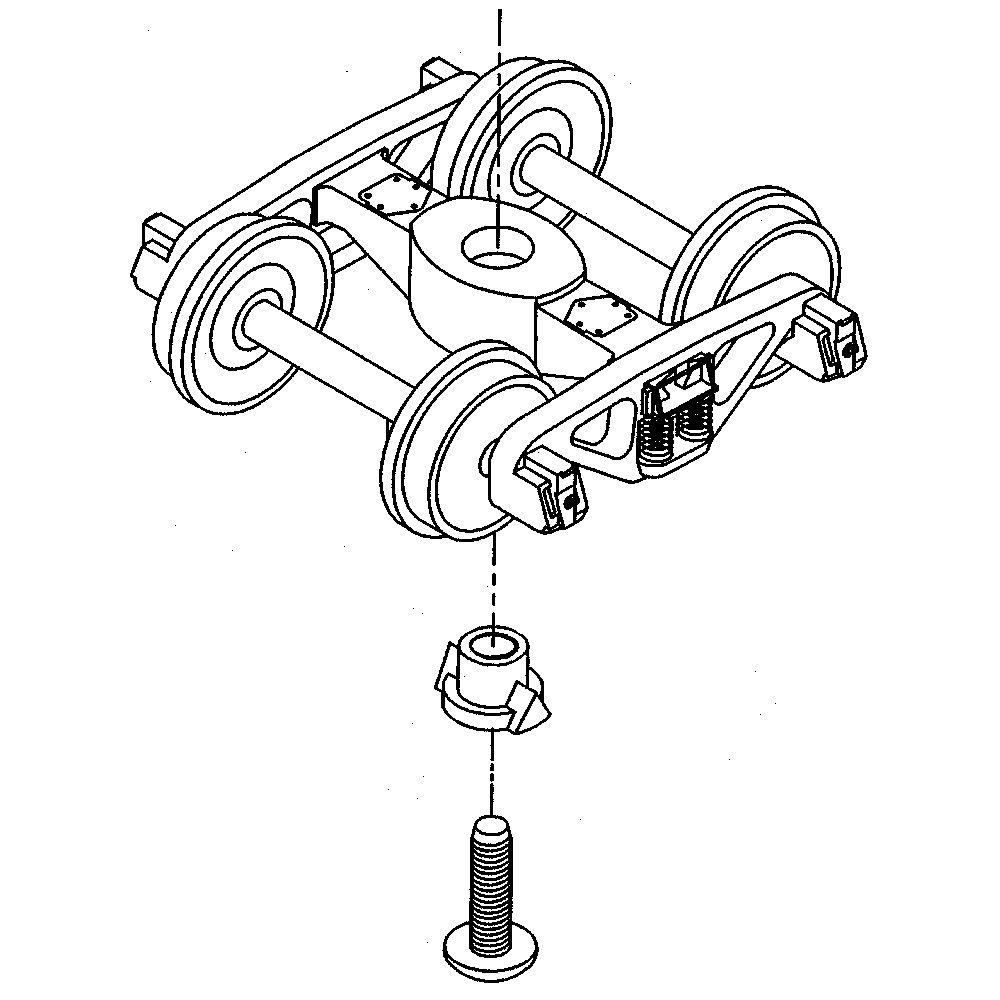

Mounts with a #2 or 2-56 screw.

Used from the modern diesel era to present day.

The ASF® 100-ton Roller Bearing Truck is from the modern diesel era. It has standard 36 inch wheels and a longer wheel base than the 50 or 70 ton roller bearing trucks. Our model is a faithful reproduction of the American Steel Foundries® Ride Control® truck. This truck is currently in use under a variety of rolling stock in North America.

"HGC" or High Gravity Compound, weighs nearly the same as Metal Trucks but with more detail & a 2 piece split bolster design for more efficient truck equalization, reduced axle friction for greater rolling performance.


One Pair

"HGC" Two Piece Fully Equalized Trucks Features:

Self Centering Action - Trucks self align themselves parallel with the car for easier placement on track.

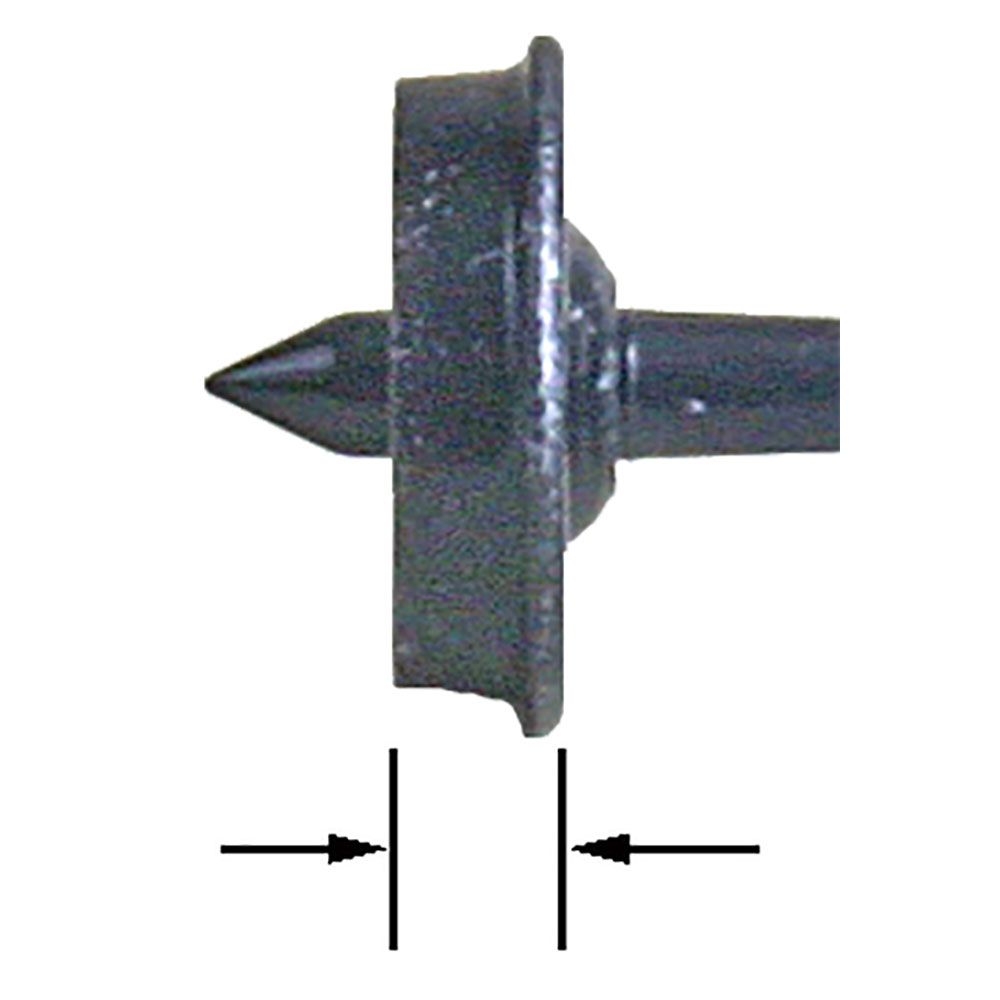

Code 110 (.110) #522 36" Smooth Back Wheels
"HGC" Weighs nearly the same as Metal Trucks
Superior Rolling Ability
#442 Brake Pads - Wide Bolster
Accurate Markings
Incredible Detail True to Prototype
Non-Magnetic Metal Wheels
Highly Flexible Fully Equalized Trucks
Smooth tracking Free Rolling Contoured Insulated Axles
RP-25 Free Rrolling Wheels
Patent number 7,434,518 B2


Package Includes:

(2) Each #569 A.S.F.® 100-Ton Roller Bearing Self Centering Two Piece Trucks (assembled)
(2) #442 Brake Pads - Wide Bolster
(2) Each Self Centering Bushing
(2) Each #2 Screw
