Product Details

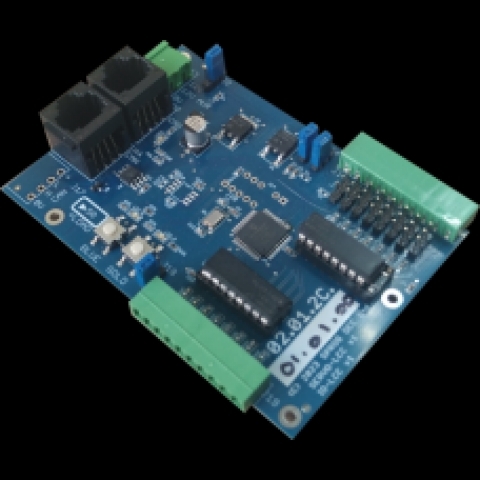

 SPROG ServoIO-LCC 16ch Servo I/O Board Manufacturer: SPROG (Made in UK)
Part Number: ServoIO-LCC (SERVOIOLCC)
Condition: New
Our Price: π¨π¦ $107.18 (Plus applicable taxes) MSRP: πΊπΈ $88.00 (π¨π¦ $119.31) - Save $12.13 / 10%! β
1 in stock and available to purchase! β Unknown if we can order any more from the manufacturer. Please feel free to enquire.
Description:
A Servo-focused 16 channel IO board. The main features of the SERVOIO-LCC are Two I/O banks of eight channels for a total of sixteen channels Eight servo outputs on bank A only, with three-pin headers for servo outputs Event generation for servo start-, mid- and end-points Servo positions saved between power cycles Eight individual logic level I/O channels per bank Optional high voltage (50 V max)/high current (500 mA max per channel) output per bank Jumper selectable pull-up/down for I/O channels Flexible configuration through the CDI (Configuration Description Information) Two status LEDs configurable through the CDI Two pushbuttons configurable through the CDI Can consume own generated events for event chaining (secondary events) Dual RJ45 for network pass-through or terminator Powered from the LCC network for simple I/O Auxiliary power input for servos and high-power option |
