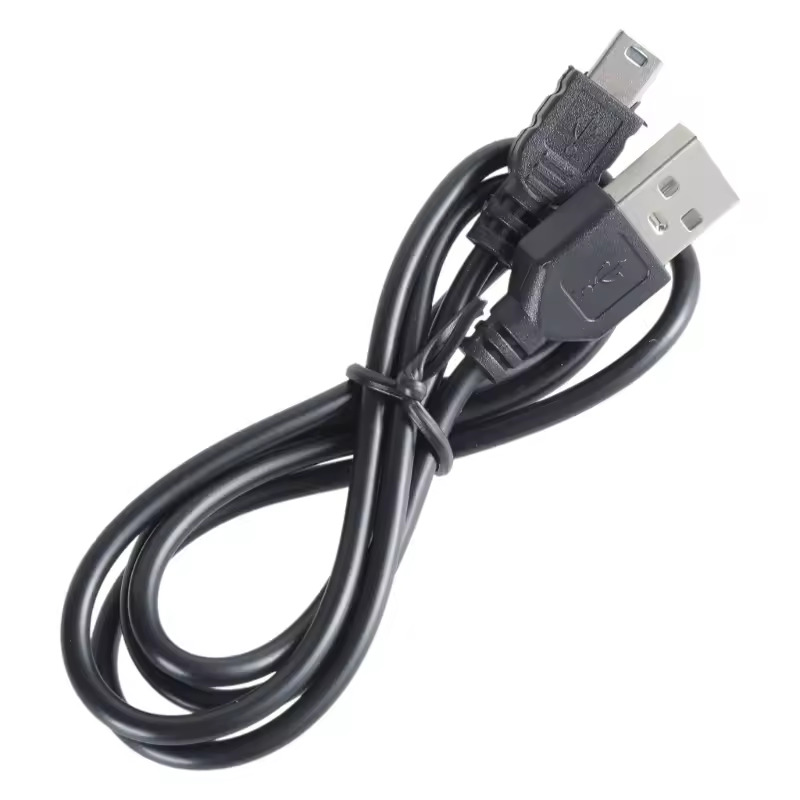

Requires USB power supply (not included). Includes mini USB cable (also available without if you already have one from an old device).

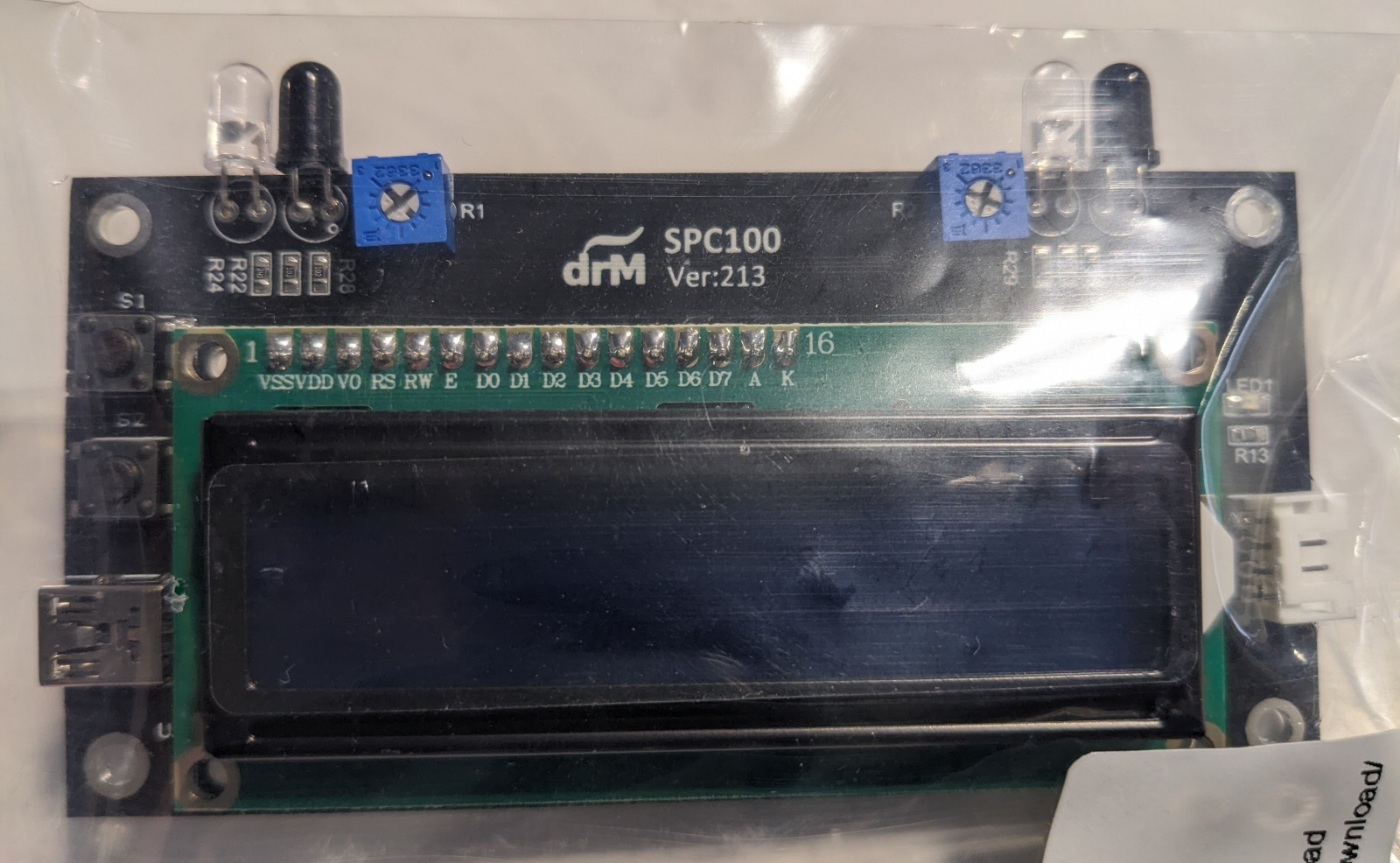

This easy to use model rail Speedometer for G/1/O/HO/OO/S/N/Z scale, supporting multiple countries with differing scale ratios and showing units in Km/h or mph. Sitting alongside your track, this is the easy way to see the scale speed of your trains. This unit stands beside any track, and displays the speed of a train as it passes, in either direction. It is a stand-alone device, runs off 5V USB power, and is ideal for DC or DCC layouts. An optional USB power bank can be added for situations where other power sources are not convenient.

The speedometer uses the precision of a microcontroller to measure the time between two infrared beams that the train passes through. Based on this time, the scale speed can be calculated from a mathematically derived calibration factor. Built into the software are the calibration factors for US (1:160) and UK (1:148) N scales, US H0 and British 00, etc. and these factors are selectable from a button accessible from the front panel of the device.

Speed is displayed for ~3 seconds and then unit goes into "Detect speed" mode again. Auto shut off after 10 minutes (selectable) of no trains.

The unit can sit beside a track, or an optional remote sensor unit (SPC100RE, available separately) can be placed into less accessible locations.

Requires USB power supply (not included). Includes mini USB cable (also available without if you already have one from an old device).
