Product Details

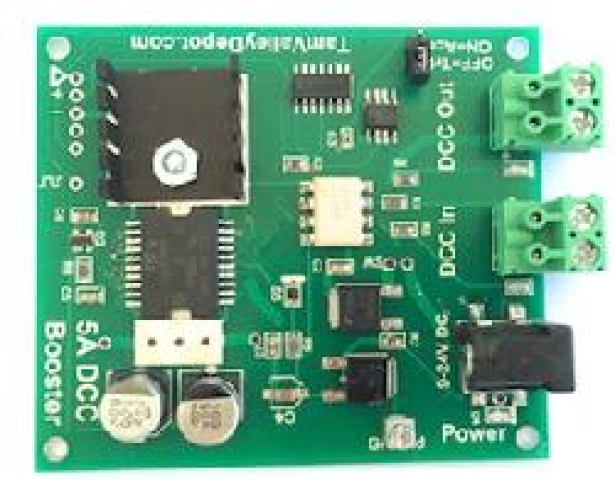

 Tam Valley Depot DAB002 5amp Trip / 3amp Continuous DCC Booster Manufacturer: Tam Valley Depot (Made in USA)
Part Number: DAB002
Condition: New
Our Price: 🇨🇦 $83.10 (Plus applicable taxes) MSRP: 🇺🇸 $65.95 (🇨🇦 $91.27) - Save $8.17 / 9%! ✅ 4 in stock and available to purchase! ❓ Unknown if we can order any more from the manufacturer. Please feel free to enquire.
Description:
DCC Booster board without the power supply. These boards can be used to make locomotive Power Districts or an Accessory District with a shared power supply. A jumper is used to set either Accessory Mode or Power District Mode. Each board can supply up to 3 Amps continuous duty and 5 Amp peak with a suitable power supply. These boards work very nicely with the Hex Frog Juicer. Max power supply voltage: 40V Power Connector: 5.5 mm (outer)/ 2.1 mm (inner) barrel plug, center positive DCC input: optically isolated, 5-24 Volts (voltage level on the DCC input pins has no effect on output voltage level), 25 mA load typical. DCC Connectors: Screw blocks Max output: 5 Amps for short periods, 3 Amps continuous Peak-to-peak output voltage: Power Supply voltage minus 0.8-1.4 volts (decreasing with load and independent of voltage on the DCC input) Short Trip Point: 5.6 Amps Short Trip Off Time: 1 microsecond Short Trip Recovery Time: 200 microseconds No Auto-reverse Board Size: 3" long x 2.5" wide x 0.5" deep (including heatsink) (76mm x 64mm x 12mm). Green blocks extend another 0.3" (8mm). |
